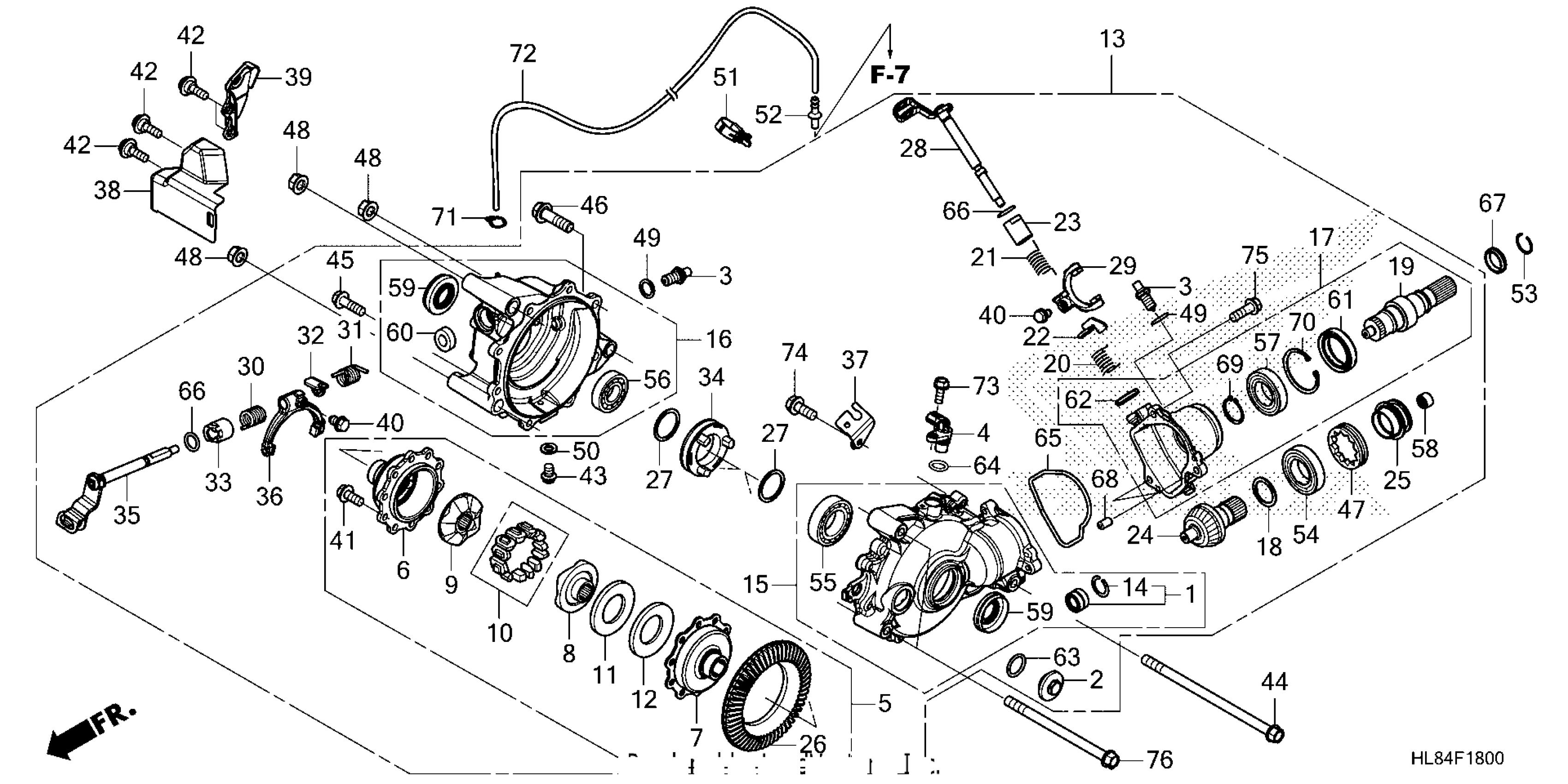

Honda SXS1000M6D2A (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE082-S4200001 TO 1HFVE082-S4299999 FRONT FINAL GEAR Diagram

BEARING SET, NEEDLE

06910-HR6-B00

$32.85

CAP, VALVE ADJ. This part replaces 12361-035-000.

12361-300-000

Unavailable

SWITCH ASSY., NEUTRAL

35600-HN7-003

$19.61

SENSOR ASSY., SPEED (TDK-EPC)

37700-KZR-601

$45.37

DIFFERENTIAL ASSY., FR.

41200-HL4-A01

$640.56

CASE, FR. DIFFERENTIAL

41211-HL4-A01

$96.75

CAP, FR. DIFFERENTIAL CASE

41212-HL4-A01

$43.21

CAM, FACE (66) (A)

41231-HL4-A01

$22.57

CAM, FACE (66) (B)

41232-HL4-A01

$25.92

FOLLOWER SET, CAM

41240-HL4-A01

$49.52

SHIM A (1.3)

41251-HL4-A01

$3.36

SHIM B (1.4)

41252-HL4-A01

$3.36

SHIM C (1.5)

41253-HL4-A01

$3.36

SHIM D (1.6)

41254-HL4-A01

$3.36

SHIM E (1.7)

41255-HL4-A01

$3.36

SPRING, DIFFERENTIAL SIDE CONED

41261-HL4-A01

$4.16

GEAR, FR. FINAL

41400-HL8-A11

$930.54

RING, STOPPER

41405-HA7-670

$2.97

CASE SUB-ASSY., FR.

41411-HL4-AK1

$96.03

COVER SUB-ASSY., FR.

41412-HL4-AK0

$131.30

CASE SUB-ASSY., FR.

41413-HL8-A10

$81.59

SHIM A, PINION GEAR (1.64)

41447-HM8-000

$7.99

SHIM B, PINION GEAR (1.70)

41448-HM8-000

$7.99

SHIM C, PINION GEAR (1.76)

41449-HM8-000

$7.99

SHIM D, PINION GEAR (1.82)

41451-HM8-000

$8.79

SHIM E, PINION GEAR (1.88)

41452-HM8-000

$7.99

SHIM F, PINION GEAR (1.94)

41453-HM8-000

$8.79

SHIM G, PINION GEAR (2.00)

41454-HM8-000

$8.79

SHIM H, PINION GEAR (2.06)

41455-HM8-000

$7.99

SHIM I, PINION GEAR (2.12)

41456-HM8-000

$8.79

SHIM J, PINION GEAR (2.18)

41457-HM8-000

$8.79

JOINT, FR.

41502-HL8-A10

$57.52

SPRING, FR. FINAL CLUTCH

41503-HP5-600

$3.03

SPRING, FR. FINAL CLUTCH LOCK

41504-HP5-600

$5.98

STOPPER, FR. FINAL CLUTCH

41505-HP5-600

$1.49

COLLAR, FR. FINAL CLUTCH

41506-HL1-A00

$24.36

GEAR, FR. PINION (13T)

41521-HL4-A00

$219.90

SLEEVE, FR. FINAL CLUTCH

41527-HR0-F00

$41.46

GEAR, FR. RING (44T)

41531-HL4-A00

$109.15

SPACER A, RING GEAR (1.82)

41540-HA0-000

$11.84

SPACER B, RING GEAR (1.88)

41541-HA0-000

$12.56

SPACER C, RING GEAR (1.94)

41542-HA0-000

$12.56

SPACER D, RING GEAR (2.00)

41543-HA0-000

$11.84

SPACER E, RING GEAR (2.06)

41544-HA0-000

$12.56

SPACER F, RING GEAR (2.12)

41545-HA0-000

$11.84

SPACER G, RING GEAR (2.18)

41546-HA0-000

$11.84

SPACER H, RING GEAR (2.24)

41547-HA0-000

$11.84

SPACER I, RING GEAR (2.30)

41548-HA0-000

$11.84

SPACER X, RING GEAR (1.14)

41561-HL4-A00

$2.82

SPACER Y, RING GEAR (1.20)

41562-HL4-A00

$2.82

SPACER Z, RING GEAR (1.76)

41563-HL4-A00

$2.82

SPACER J, RING GEAR (1.80)

41564-HL4-A00

$2.82

SPACER K, RING GEAR (1.86)

41565-HL4-A00

$2.82

SPACER L, RING GEAR (1.92)

41566-HL4-A00

$2.82

SPACER M, RING GEAR (1.98)

41567-HL4-A00

$2.82

SPACER N, RING GEAR (2.04)

41568-HL4-A00

$2.82

SHAFT, FR. FINAL CLUTCH

41540-HL4-A00

$51.00

FORK, FR. FINAL CLUTCH

41550-HL4-A00

$77.38

SPRING A, DIFFERENTIAL LOCK

41603-HL4-A00

$4.67

SPRING B, DIFFERENTIAL LOCK

41604-HL4-A00

$4.69

STOPPER, DIFFERENTIAL LOCK SHAFT

41605-HL4-A00

$0.90

COLLAR, FR. DIFFERENTIAL LOCK

41606-HL4-A00

$26.95

SLEEVE, DIFFERENTIAL LOCK

41627-HL4-A00

$13.98

SHAFT, FR. DIFFERENTIAL LOCK

41640-HL4-A00

$51.00

FORK, DIFFERENTIAL LOCK

41650-HL4-A00

$57.48

STAY, CLUTCH CABLE

41712-HL4-F40

$1.57

COVER, FR. DIFFERENTIAL LOCK

41719-HL4-A00

$6.57

COVER, FR. CLUTCH

41728-HL4-A00

$6.28

BOLT, SPECIAL (6MM)

90102-HL4-A00

$4.13

BOLT, FLANGE (10X23)

90104-HL4-A00

$27.11

BOLT, FR. FENDER FIXING

90106-MM9-000

$2.97

BOLT, SEALING (8MM)

90109-371-000

$2.58

BOLT, FLANGE (10X192)

90121-HL4-A00

$0.82

BOLT, FLANGE (8X27)

90133-HP5-600

$2.67

BOLT, FLANGE (10X35)

90134-HP5-600

$3.51

NUT, LOCK (64MM)

90242-MB0-000

$32.52

NUT, SELF-LOCK (10MM)

90305-HC0-770

$2.99

WASHER, NEUTRAL SWITCH

90443-KR0-000

$1.49

WASHER (8MM)

90471-580-000

$2.92

CLAMP, HARNESS

90652-HC4-003

$5.95

JOINT, BREATHER TUBE

90652-HF7-003

$9.52

SET-RING (26X1.8)

90654-HL7-A20

$5.50

BEARING, RADIAL BALL (6206)

91051-HL4-A01

$8.33

BEARING (35X68X16)

91052-HL6-AF1

$15.80

BEARING, RADIAL BALL (6907)

91055-HL4-A01

$8.79

BEARING, RADIAL BALL (32X58X13)

91055-HP5-601

$13.91

BEARING, RADIAL BALL (60/32)

91059-HL4-A01

$8.14

BEARING, NEEDLE (12X18X12)

91056-HP5-601

$6.05

OIL SEAL (27X53X7)

91251-HL4-A01

$4.53

OIL SEAL (24X32X5)

91252-HL4-A01

$4.40

OIL SEAL (42X58X12)

91254-HR3-A21

$7.65

DUST SEAL (22X28X5)

91254-KS7-831

$8.66

O-RING (30.8MM) (Honda Code 0001065)

91302-001-020

$3.75

O-RING (14.8X2.4) (ARAI)

91303-KF0-003

$1.69

GASKET, FR. FINAL CLUTCH COVER

91351-HL4-A00

$1.41

O-RING (8.5X1.5) (L. SIDE ONLY)

91352-GAZ-930

$2.33

O-RING, SPECIAL

91362-HL4-A01

$5.08

PIN A, DOWEL (6X10) (YAMADA)

94301-06100

$2.25

CIRCLIP (OUTER) (32MM)

94510-32000

$1.77

CIRCLIP (INNER) (58MM)

94520-58000

$3.13

CLIP, TUBE (C6.5)

95002-35000

$1.49

BULK HOSE, VACUUM (3.5X1000) (3.5X860) (BULK HOSE: 95005-35001-30M)

95005-35001-30M

$8.63

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (8X20)

95701-08020-08

$1.62

BOLT, FLANGE (8X25)

95701-08025-08

$1.49

BOLT, FLANGE (10X150)

95801-10150-08

$4.93
