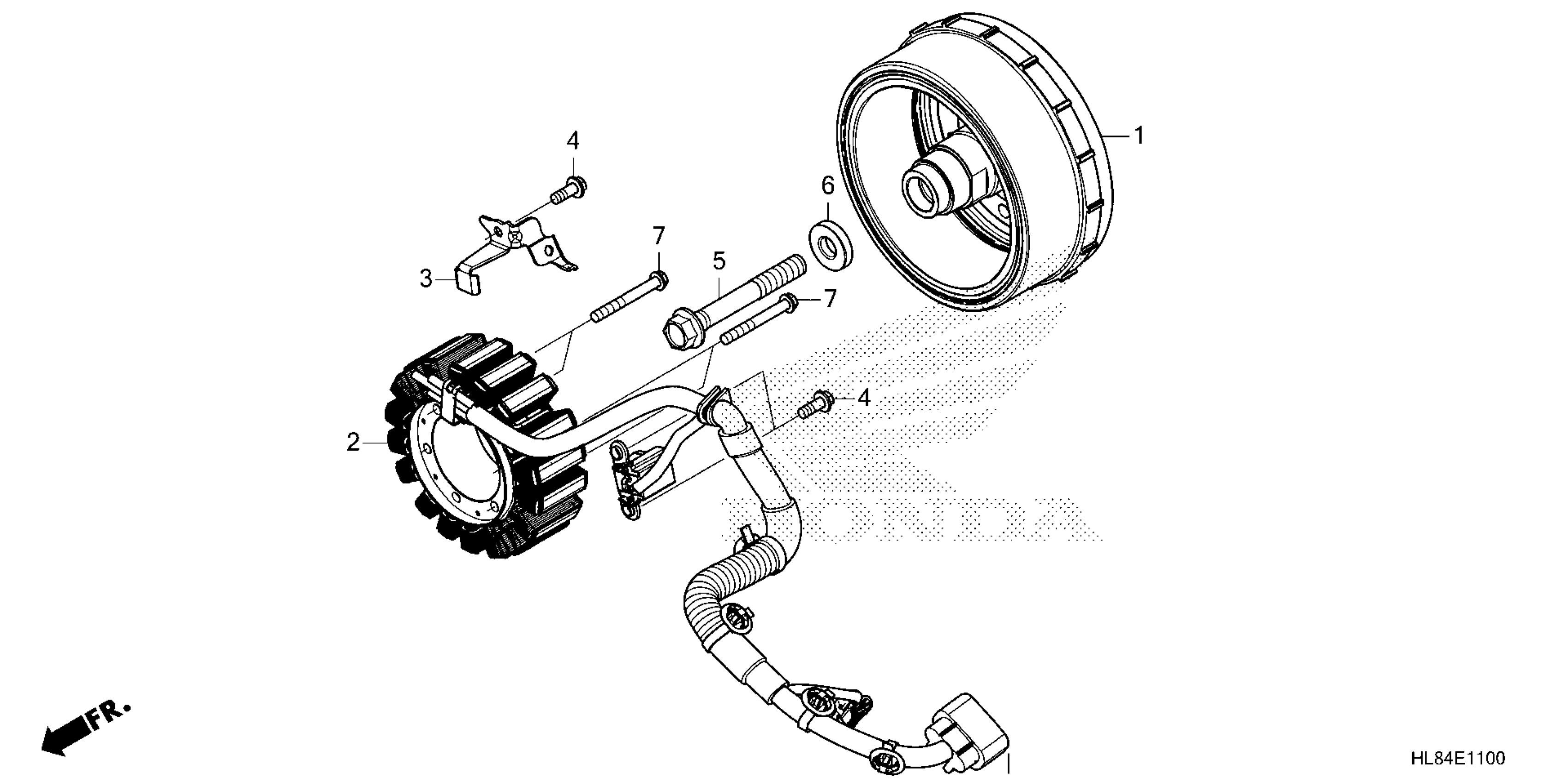

Honda SXS1000M6D2A (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE082-R4100001 TO 1HFVE082-R4199999 ALTERNATOR Diagram

#

Description

Price

1

FLYWHEEL COMP

31110-HL4-AJ1

$396.26

2

STATOR COMP

31120-HL8-A01

$366.90

3

CLAMP, ALTERNATOR WIRE

32112-HL6-A00

$4.74

4

BOLT, FLANGE (6X16) (NSHF)

90004-GHB-630

$3.26

5

BOLT, SPECIAL (12MM)

90081-HR0-F20

$7.90

6

WASHER (12.3X29X6)

90401-HL4-000

$12.31

7

BOLT, FLANGE (6X50) BOLT, FLANGE (6X55)

96001-06050-00

$1.97
