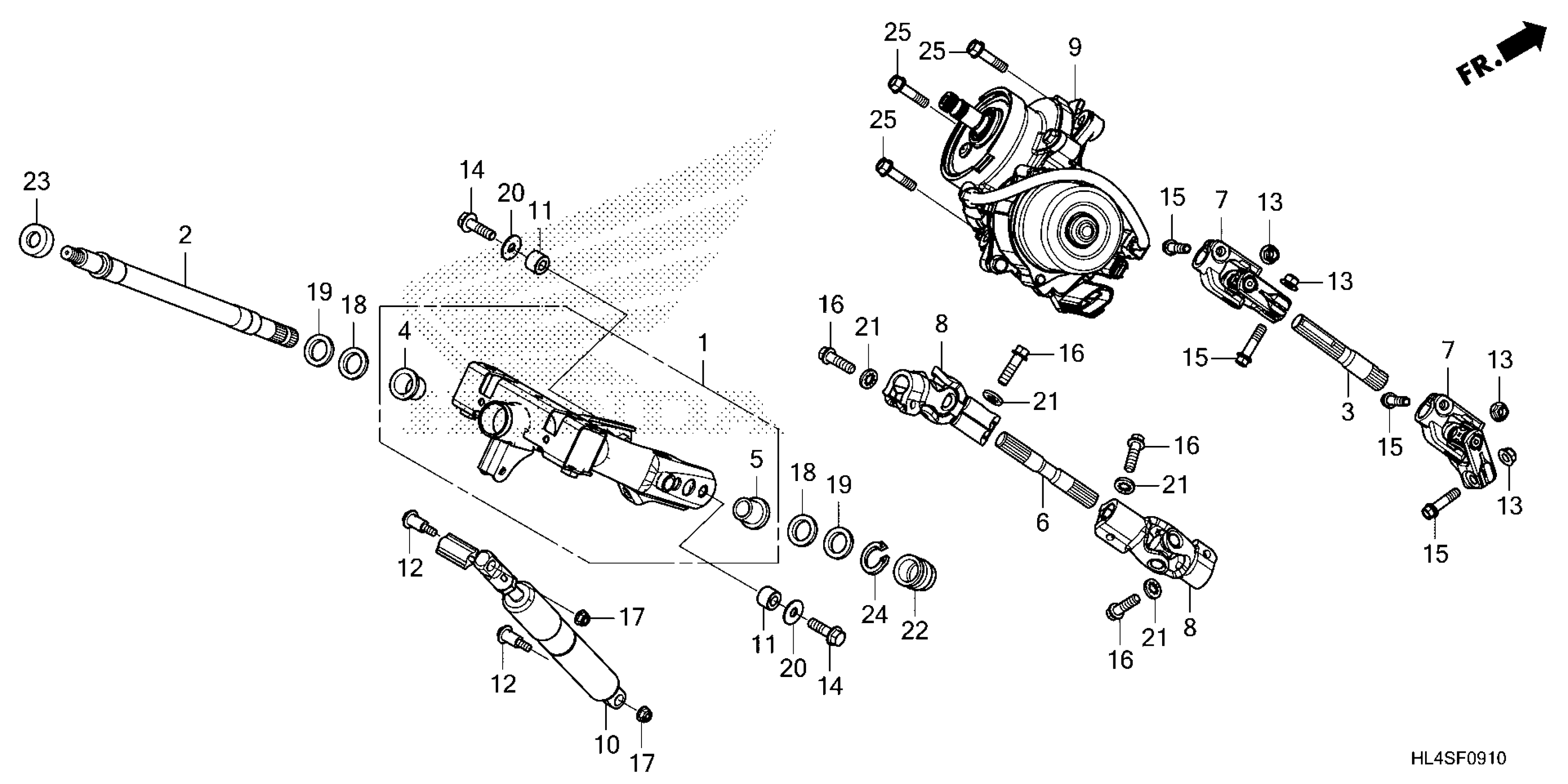

Honda SXS1000M5PAC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04H-S4900001 TO 1HFVE04H-S4999999 STEERING SHAFT Diagram

COLUMN SUB-ASSY., STEERING

53255-HL6-A40

$125.18

SHAFT, STEERING (UPPER)

53314-HL4-A00

$46.11

SHAFT, STRG (LOWER)

53315-HL4-AK0

$46.29

BUSH, STEERING SHAFT (UPPER)

53316-HL3-A00

$6.14

BUSH, STEERING SHAFT (LOWER)

53317-HL3-A00

$6.37

SHAFT, STRG MIDDLE

53318-HL8-A10

$112.97

JOINT COMP

53323-HL4-AK1

$72.77

JOINT B, STEERING

53323-SW5-003

$197.81

UNIT ASSY., EPS

53600-HL4-AK1

$811.92

DAMPER ASSY., STEERING

53700-HL6-A02

$33.16

COLLAR, STEERING PIVOT

53711-HL4-A00

$4.00

BOLT, SPECIAL (6X28)

90110-HL4-A00

$3.11

NUT, SELF-LOCK (8MM)

90115-659-003

$0.77

BOLT, FLANGE (8X27)

90133-HL4-A00

$2.74

BOLT, STEERING YOKE

90135-HL4-AK0

$0.29

BOLT, STEERING YOKE (8X28) (NIPPON SEIKO)

90135-SB0-003

$0.46

NUT, U (6MM)

90301-MG3-000

$6.60

WASHER, THRUST (20X1.00)

90454-428-000

$2.57

WASHER, WAVE (20MM)

90501-HL4-A00

$2.78

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.34

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.34

WASHER, TOOTHED LOCK

90511-671-003

$0.11

SEAL, STEERING SHAFT (LOWER)

91257-HL3-A01

$4.82

SEAL, STEERING SHAFT (UPPER)

91262-HL3-A01

$5.62

CIRCLIP (OUTER) (20MM)

94510-20000

$1.37

BOLT, FLANGE (8X32)

95701-08032-08

$2.14
