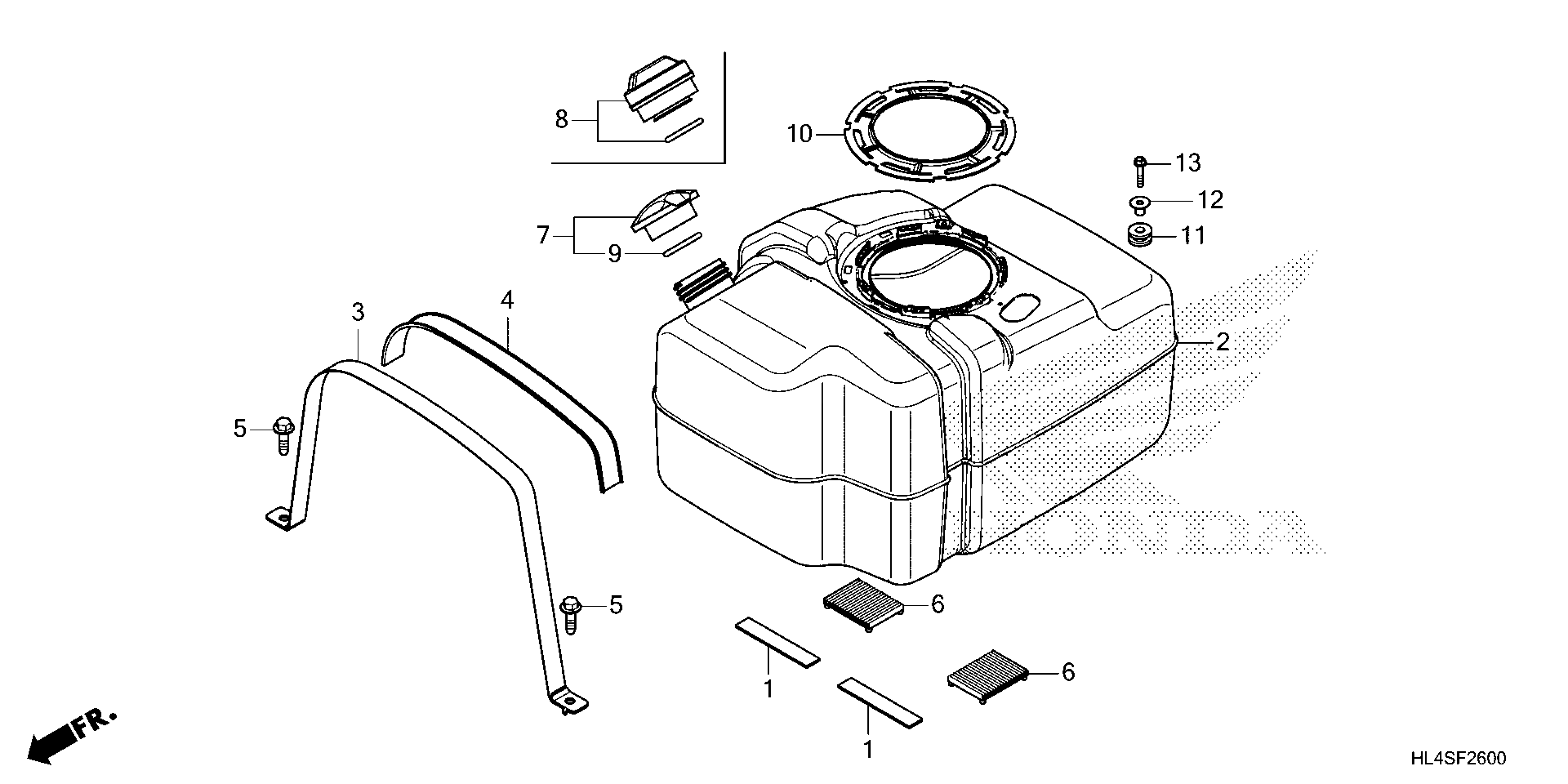

Honda SXS1000M5PAC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04H-S4900001 TO 1HFVE04H-S4999999 FUEL TANK Diagram

#

Description
Price

1

CUSHION, BATTERY TRAY (A)

17509-MN5-000

$4.75

2

TANK, FUEL

17510-HL4-G00

$269.91

3

BAND, FR. FUEL TANK MOUNTING

17516-HL3-A00

$17.12

4

CUSHION, TANK BAND

17523-S84-300

$8.82

5

BOLT-WASHER (10X35)

17525-SM4-000

$5.72

6

CUSHION, RR. FUEL TANK

17612-HL3-A00

$16.25

8

CAP ASSY., FUEL TANK

17620-MEH-003

$40.59

10

RING, FUEL PUMP LOCKING

17719-HR3-A21

$10.10

11

RUBBER, MUFFLER

18334-KA3-830

$3.71

12

COLLAR

19052-HR6-MF0

$2.26

13

BOLT, FLANGE (6X30)

95701-06030-08

$2.88
