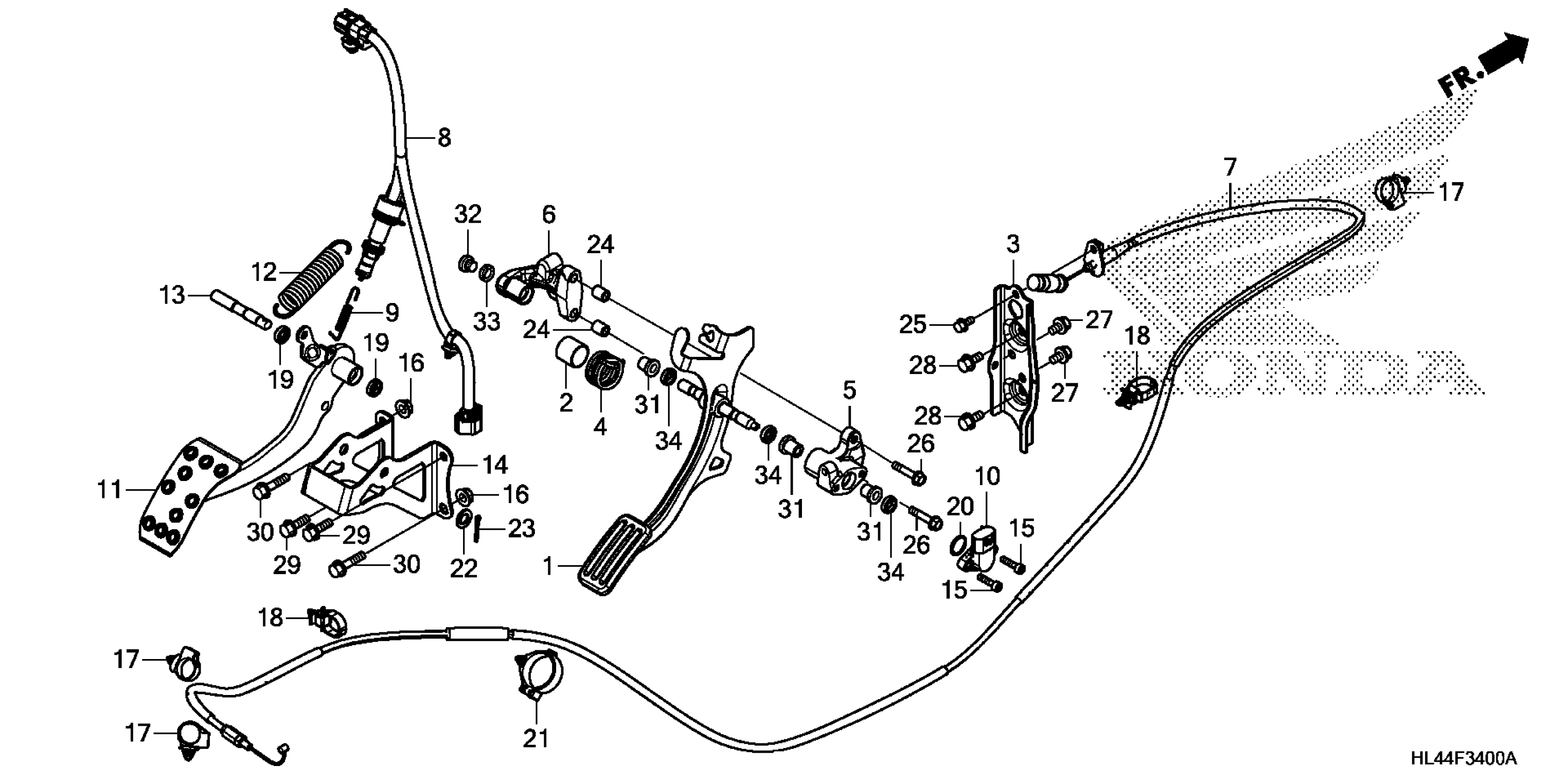

Honda SXS1000M5PAC (16) PIONEER 1000-5, USA, VIN# 1HFVE04H-G4000001 PEDAL Diagram

PEDAL, ACCELERATOR This part replaces 17810-HL4-A00.

17810-HL4-A01

$27.48

PEDAL, ACCELERATOR

17810-HL4-A01

$27.48

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.31

STAY, ACCELERATOR PEDAL

17820-HL4-A00

$3.80

SPRING, ACCELERATOR PEDAL

17830-HL4-A00

$1.46

BRACKET, R. PEDAL PIVOT

17850-HL4-A00

$87.25

BRACKET, R. PEDAL PIVOT

17850-HL6-A00

$64.51

BRACKET, L. PEDAL PIVOT

17860-HL4-A00

$84.85

BRACKET, L. PEDAL PIVOT

17860-HL6-A00

$62.25

CABLE, THROTTLE

17910-HL4-A01

$29.22

SWITCH ASSY., STOP

35350-HL4-A01

$26.90

SPRING, STOP SWITCH

35357-KR3-670

$5.12

SENSOR ASSY., ANGLE

38800-HR3-A21

$27.06

PEDAL, BRAKE

46510-HL4-A00

$34.56

SPRING, BRAKE PEDAL

46514-HL1-A00

$9.82

SHAFT, BRAKE PIVOT

46550-HL3-A00

$17.11

STAY, BRAKE PEDAL

46560-HL4-A00

$5.39

BOLT, SOCKET (5X20)

90116-HP5-600

$3.10

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.35

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.35

CLAMP, HARNESS

90652-HC4-003

$5.95

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.47

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$4.22

OIL SEAL (10X16X4.5)

91259-VM0-000

$4.22

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.72

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.44

WASHER, PLAIN (10MM)

94102-10800

$3.39

PIN, SPLIT (3.0X18)

94201-30180

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (6X30)

95701-06030-00

$1.89

BOLT, FLANGE (8X12)

95701-08012-00

$1.49

BOLT, FLANGE (8X16)

95701-08016-00

$1.80

BOLT, FLANGE (8X20)

95701-08020-00

$1.78

BOLT, FLANGE (8X35)

95701-08035-00

$2.30

BUSH, FLANGE (10MM)

17813-HL6-A00

$3.15

BOLT, SEALING (12MM)

90007-ZG8-300

$7.02

WASHER (12MM)

90545-KF0-000

$3.26

OIL SEAL (10X16X5)

91206-ZG5-003

$3.13
