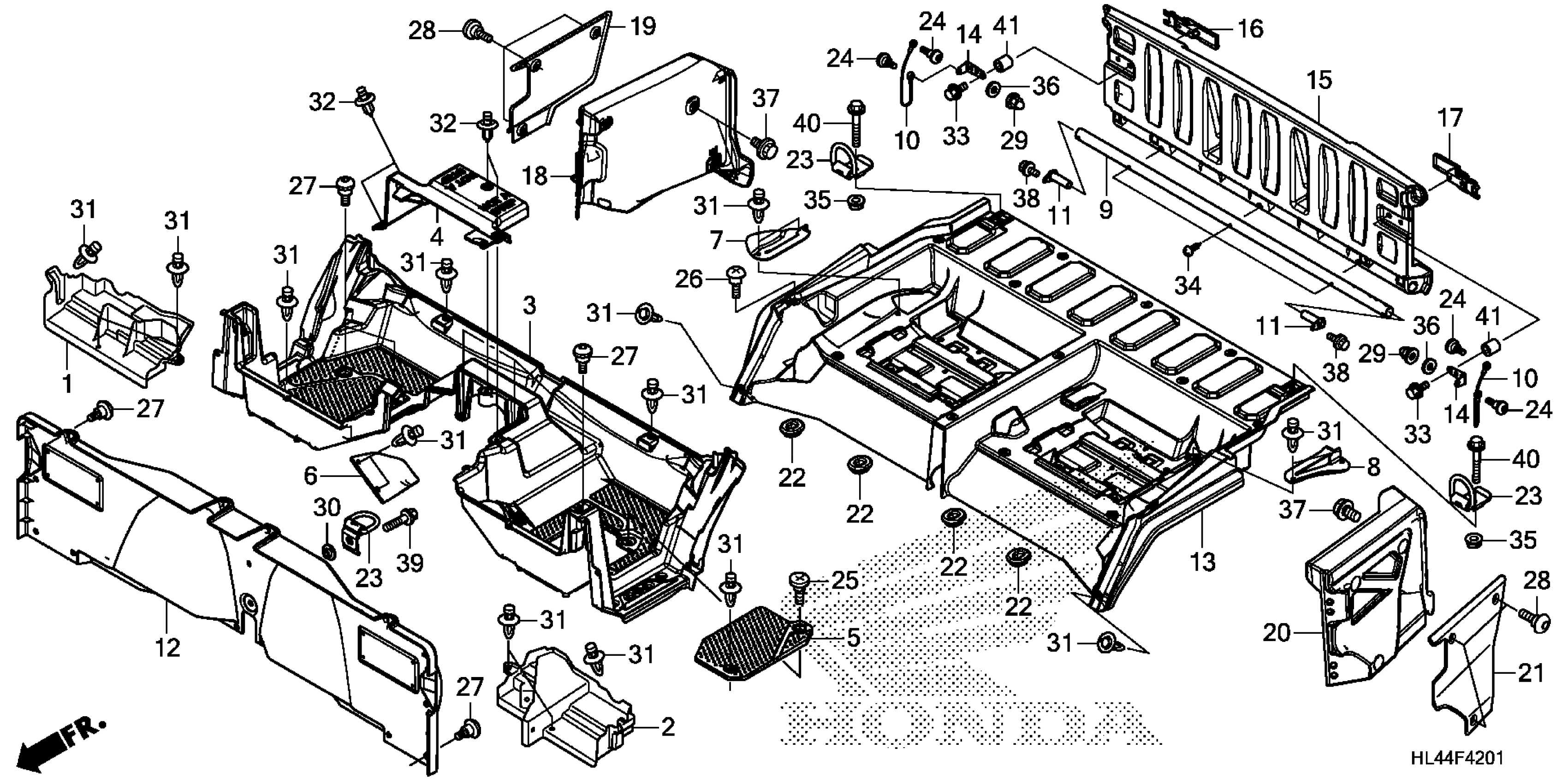

Honda SXS1000M5PAC (16) PIONEER 1000-5, USA, VIN# 1HFVE04H-G4000001 BED PLATE@REAR GATE (SXS1000M5P/M5D) Diagram

COVER, R. RR. FOOT WELL

71133-HL4-A00

$9.90

COVER, L. RR. FOOT WELL This part replaces 71136-HL4-A00.

71136-HL4-F00

$9.84

FOOT WELL, RR. *NH1* (BLACK) This part replaces 76300-HL4-A00ZA.

76300-HL4-F01ZA

$51.82

FOOT WELL, RR. *NH1* (BLACK) This part replaces 76300-HL4-F00ZA.

76300-HL4-F01ZA

$51.82

LID, RR. FOOT WELL *NH1* (BLACK)

76350-HL4-A00ZA

$8.34

LID, CONTROL BOX *NH1* (BLACK)

76360-HL4-A00ZA

$12.02

COVER, ENGINE OIL MAINTENANCE

76370-HL4-A00

$4.59

RUBBER, R. RR. SEAT

77913-HL4-A00

$4.36

RUBBER, L. RR. SEAT

77914-HL4-A00

$4.36

HINGE, RR. GATE

81503-HL3-A00

$34.87

WIRE, RR. GATE STOPPER

81504-HL3-A00

$21.46

BRACKET, RR. GATE HINGE

81505-HL1-A20

$5.66

PLATE, FR. BED

81506-HL4-L01

$55.59

PLATE, RR. TOP BED

81507-HL4-A00

$100.90

BRACKET, RR. GATE LOCK

81508-HL1-A00

$2.92

GATE, RR. *NH1* (BLACK)

81530-HL3-A00ZA

$101.93

LOCK, R. RR. GATE

81531-HL3-A01

$14.55

LOCK, L. RR. GATE

81532-HL3-A01

$14.55

COVER, R. BED SIDE *NH1* (BLACK)

81550-HL4-A00ZA

$171.75

COVER, L. BED SIDE *NH1* (BLACK)

81560-HL4-A00ZA

$265.33

GROMMET, SIDE COVER

83551-MA6-000

$3.35

HOOK ASSY., TIE DOWN

84614-S06-000

$10.50

SCREW, SPECIAL (6X8)

90102-HN5-670

$1.49

SCREW, SPLASH GUARD

90103-HC4-770

$2.23

SCREW, SPECIAL (6MM)

90103-HF1-670

$6.08

SCREW, PAN (6X14)

90106-KBV-000

$3.90

NUT, CAP (6MM)

90201-415-000

$2.05

WASHER, RR. COWL SETTING

90511-MAT-000

$2.92

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, COWL TOP

91505-SL0-003

$2.53

BOLT-WASHER (6X20)

93404-06020-07

$1.55

SCREW, TAPPING (5X16)

93903-25320

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

WASHER, PLAIN (6MM)

94103-06700

$1.49

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (6X20)

95701-06020-07

$1.62

BOLT, FLANGE (6X50)

95701-06050-07

$1.49

COLLAR (6.4X10)

23813-KPH-720

$4.92
