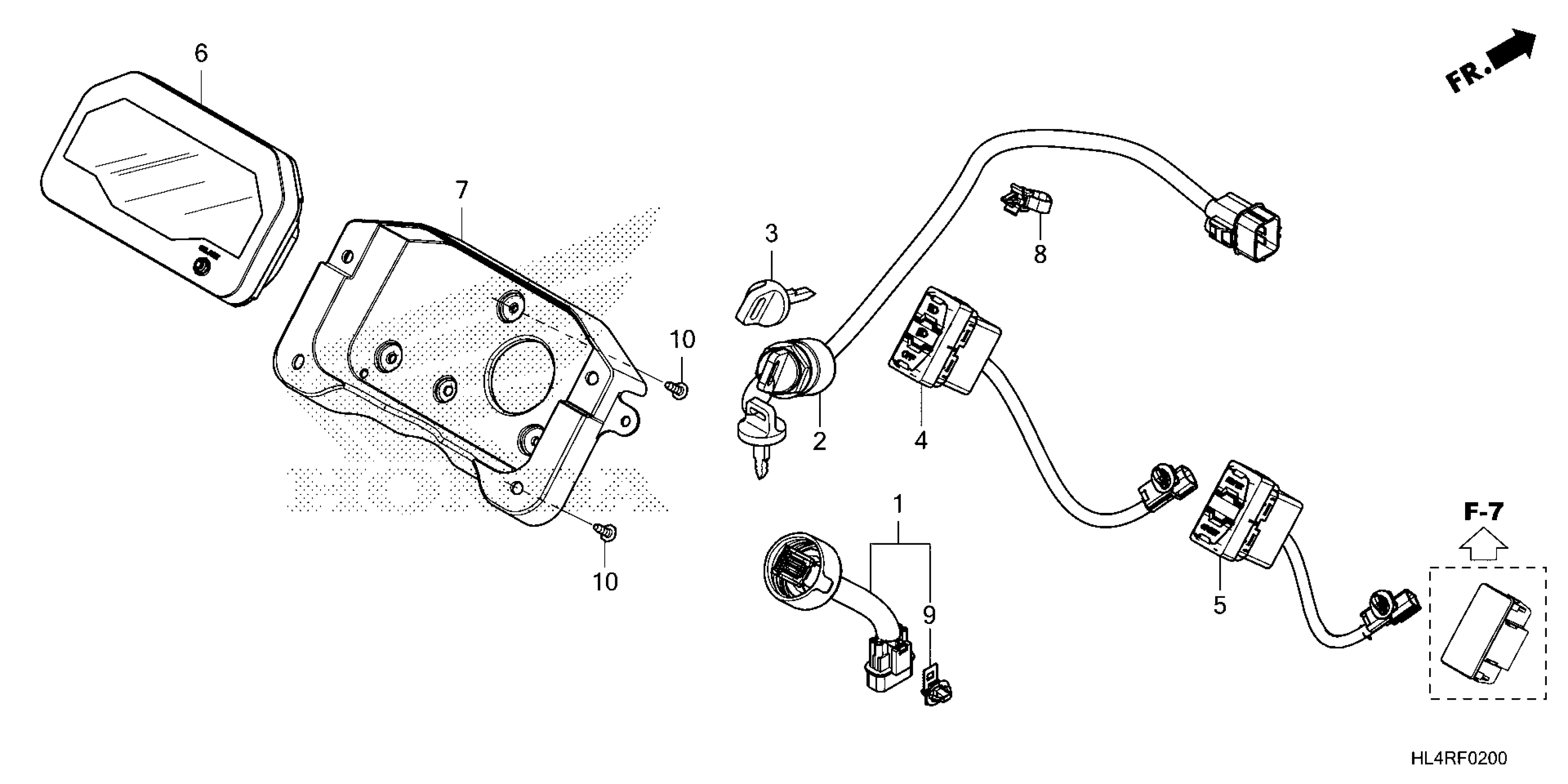

Honda SXS1000M5PA (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE040-R4800001 TO 1HFVE040-R4899999 METER@SWITCH (1) Diagram

SUB-HARNESS, METER

32105-HL4-LJ0

$16.22

SW ASSY., IGNITION

35100-HL4-AK1

$72.26

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional).

35121-HL1-A01

$7.38

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional).

35122-HL1-A01

$7.38

SW, LIGHTING&DIMMER

35230-HL4-AK1

$32.31

SW, MODE CHANGE

35300-HL4-AK1

$28.57

METER ASSY., COMB

37200-HL4-AJ1

$111.24

COVER, METER

68108-HL4-A00

$13.19

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.23

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$5.71

SCREW, TAPPING (5X16)

93903-25320

$0.83
