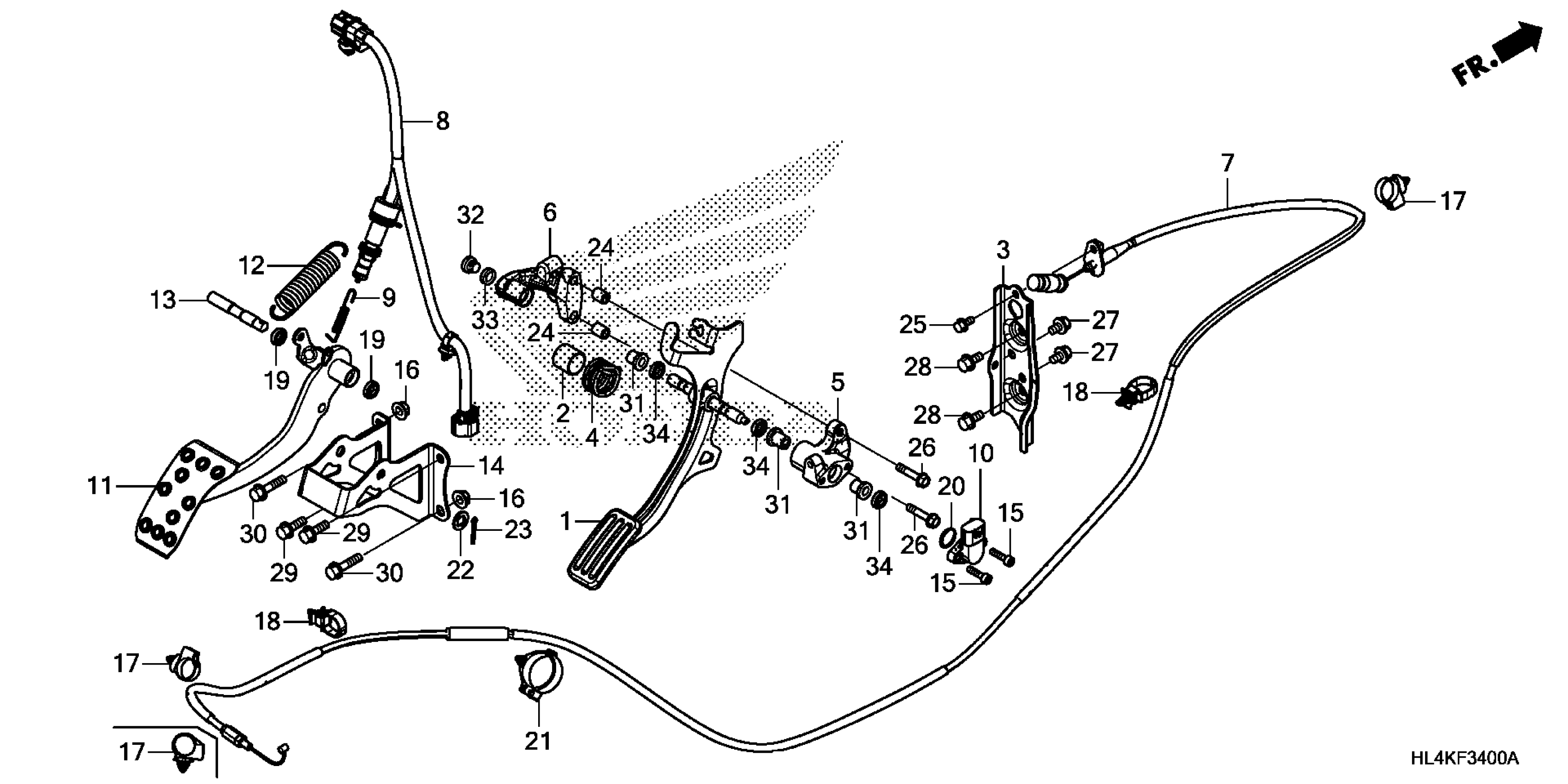

Honda SXS1000M5LAC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04V-K4300001 PEDAL Diagram

PEDAL, ACCELERATOR This part replaces 17810-HL4-A00.

17810-HL4-A01

$24.29

PEDAL, ACCELERATOR

17810-HL4-A01

$24.29

COLLAR, ACCELERATOR PEDAL

17811-HL1-A00

$3.01

STAY, ACCELERATOR PEDAL

17820-HL4-A00

$13.99

SPRING, ACCELERATOR PEDAL

17830-HL4-A00

$9.62

BRACKET, R. PEDAL PIVOT

17850-HL4-A00

$77.13

BRACKET, R. PEDAL PIVOT

17850-HL6-A00

$57.03

BRACKET, L. PEDAL PIVOT

17860-HL4-A00

$75.01

BRACKET, L. PEDAL PIVOT

17860-HL6-A00

$55.03

CABLE, THROTTLE

17910-HL4-A01

$28.04

SWITCH ASSY., STOP

35350-HL4-A01

$22.12

SPRING, STOP SWITCH

35357-KR3-670

$4.76

SENSOR ASSY., ANGLE

38800-HR3-A21

$23.60

PEDAL, BRAKE

46510-HL4-A00

$30.55

SPRING, BRAKE PEDAL

46514-HL1-A00

$8.94

SHAFT, BRAKE PIVOT

46550-HL3-A00

$12.18

STAY, BRAKE PEDAL

46560-HL4-A00

$4.77

BOLT, SOCKET (5X20)

90116-HP5-600

$2.88

NUT, FLANGE (M8X1.25) (SELF-LOCK) This part replaces 90309-KF0-003.

90309-428-731

$3.12

NUT, FLANGE (M8X1.25) (SELF-LOCK)

90309-428-731

$3.12

CLAMP, HARNESS

90652-HC4-003

$5.54

STRAP, CABLE (105MM) *NH1* (BLACK)

90672-SB2-003

$5.23

OIL SEAL (10X16X4.5) This part replaces 91206-333-003.

91259-VM0-000

$3.50

OIL SEAL (10X16X4.5)

91259-VM0-000

$3.50

O-RING, ANGLE SENSOR

91308-HN0-A10

$2.48

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.06

WASHER, PLAIN (10MM)

94102-10800

$2.80

PIN, SPLIT (3.0X18)

94201-30180

$0.94

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.04

BOLT, FLANGE (6X12) BOLT, SPECIAL (6X12)

95701-06012-00

$1.81

BOLT, FLANGE (6X30)

95701-06030-00

$1.71

BOLT, FLANGE (8X12)

95701-08012-00

$1.03

BOLT, FLANGE (8X16)

95701-08016-00

$1.64

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

BOLT, FLANGE (8X55)

95701-08055-00

$2.23

BUSH, FLANGE (10MM)

17813-HL6-A00

$2.87

BOLT, SEALING (12MM)

90007-ZG8-300

$6.70

WASHER (12MM)

90545-KF0-000

$2.90

OIL SEAL (10X16X5)

91206-ZG5-003

$2.99
