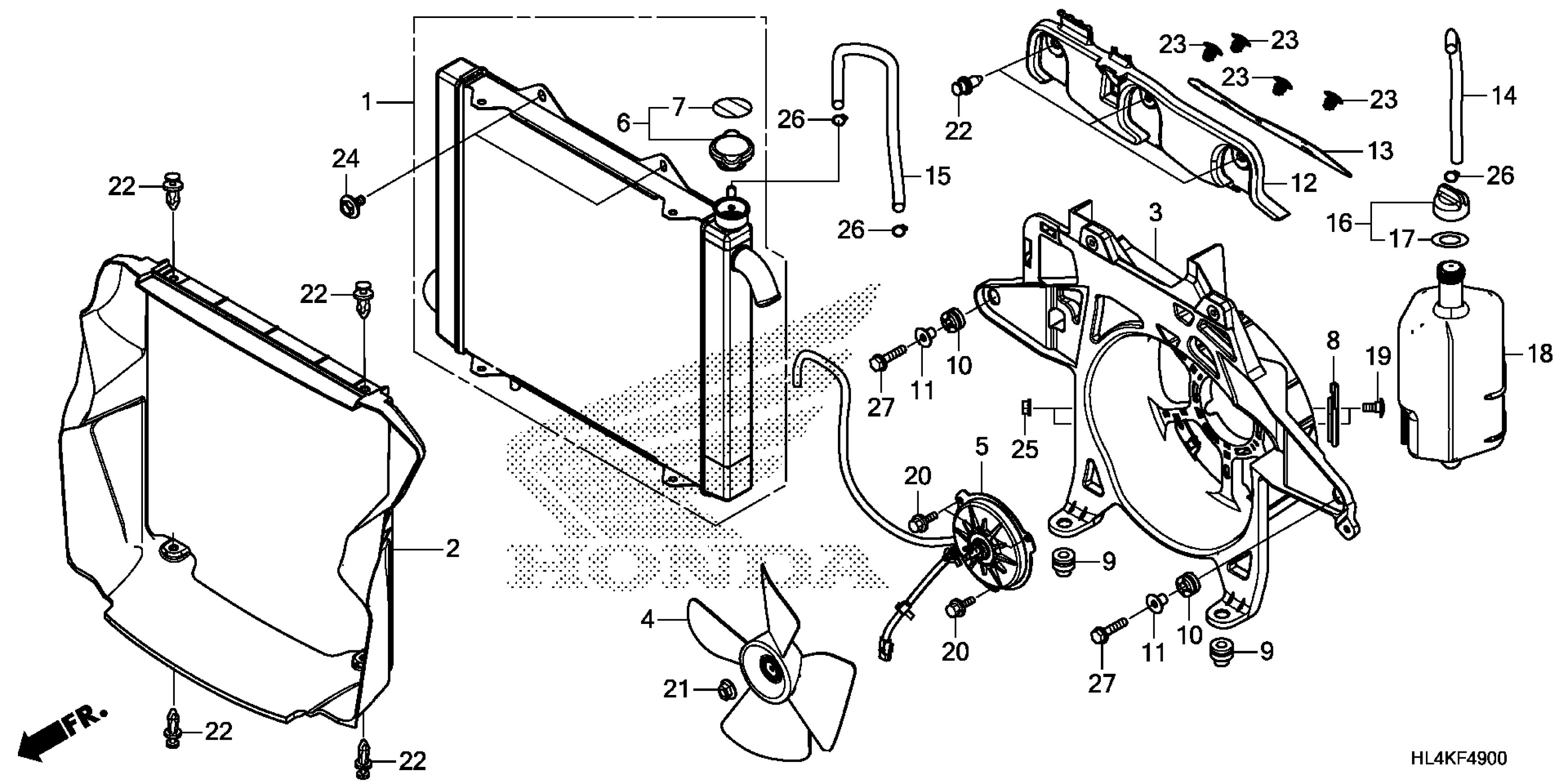

Honda SXS1000M5DAC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04J-K4300001 RADIATOR Diagram

RADIATOR

19010-HL4-F01

$128.03

SHROUD, RADIATOR

19014-HL4-A00

$9.41

STAY, FAN MOTOR

19015-HL4-A01

$73.64

FAN, COOLING This part replaces 19020-HN7-000.

19020-HL3-A01

$19.91

MOTOR ASSY., FAN

19030-HL4-A01

$91.31

CAP, RADIATOR

19037-GEE-710

$30.28

LABEL, RADIATOR CAP

19046-PAA-A00

$2.92

STAY, RESERVE TANK

19050-HL4-A00

$21.57

RUBBER, RADIATOR MOUNTING

19051-HL4-A00

$2.70

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.31

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.48

PLATE, AIR GUIDE

19071-HL4-F00

$9.21

RUBBER, AIR GUIDE

19072-HL4-F00

$3.70

TUBE A, RESERVE TANK

19103-HL4-A00

$2.41

TUBE B, RESERVE TANK

19104-HL4-A00

$4.21

CAP ASSY., RESERVE TANK

19106-GET-000

$6.90

GASKET, RESERVE TANK

19107-GET-000

$3.74

TANK, RADIATOR RESERVE

19110-HL4-F00

$13.08

SCREW, PAN (6X14)

90106-KBV-000

$3.90

BOLT, FLANGE (5X10)

90196-MBB-003

$2.66

NUT, SERRATE (5MM)

90315-MK3-003

$2.33

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CLIP, WASHER MOUTH (SOURCE: VINTAGE PARTS INC.)

91504-SD5-003

$4.39

BOLT-WASHER (6X14)

93404-06014-00

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, TUBE (C11)

95002-70000

$1.56

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
