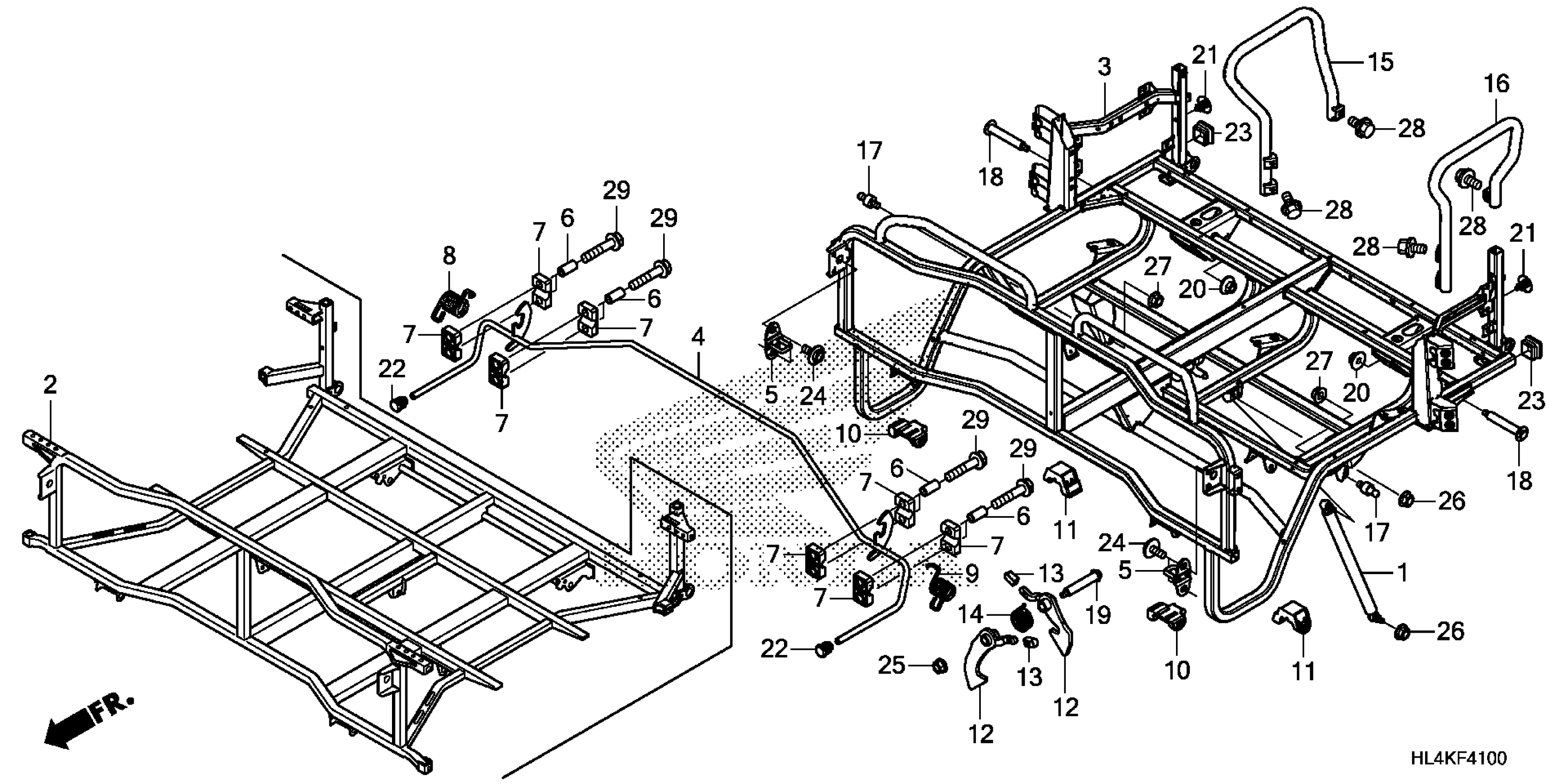

Honda SXS1000M5DAC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04J-K4300001 BED Diagram

DAMPER, RR. BED

74820-HL4-A01

$19.37

BED, RR.

81500-HL4-F00

$1,350.34

LEVER, BED LOCK

81521-HL4-A00

$71.30

STRIKER ASSY.

81522-HL4-A00

$13.72

COLLAR, LEVER BRACKET

81524-HL3-A00

$1.28

HOLDER, LEVER LOCK

81526-HL3-A00

$0.84

SPRING, R. LOCK LEVER

81527-HL3-A00

$1.64

SPRING, L. LOCK LEVER

81528-HL3-A00

$1.64

RUBBER, FRAME SUPPORT (FR)

81533-HL4-A00

$3.34

RUBBER, FRAME SUPPORT (RR)

81534-HL4-A00

$4.13

LATCH, DUMP LOCK

81541-HL4-A00

$17.90

CAP, DUMP LOCK

81542-HL3-A00

$3.85

SPRING, DUMP LOCK

81543-HL3-A00

$1.77

BAR, R. RR. TORSO

81680-HL4-F00

$65.69

BAR, L. RR. TORSO

81690-HL4-F00

$65.69

STUD, BALL (LOWER)

90109-HL3-A01

$1.41

BOLT, FLANGE (8MM)

90112-HL3-A00

$4.51

BOLT, FLANGE (6MM)

90118-HL4-A00

$1.89

NUT, FLANGE (8MM)

90361-SR3-000

$0.80

CLIP, ROOF (7MM) *NH1* (BLACK)

90671-S0D-003YW

$1.49

CAP, PIPE END (1/2")

90851-HL4-A00

$0.70

CAP, SQUARE PIPE END (1")

90861-HL4-A00

$0.64

BOLT-WASHER (6X16)

93404-06016-07

$1.55

NUT, FLANGE (6MM)

94050-06000

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

NUT, FLANGE (8MM)

94050-08080

$1.49

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X30)

95701-06030-00

$1.89
