Description

Price

1

COVER, HARNESS GUIDE

18328-HL4-F00

$20.42

2

PROTR, HEAT SHIELD

18332-HL4-AK0

$69.38

3

COVER, HEAT SHIELD

18336-HL4-AK0

$18.23

4

FRAME COMP

50100-HL4-AK0

$1,308.49

5

BRACKET, R. ENGINE HANGER

50311-HL4-A00

$33.49

6

HANGER COMP R, ENG

50315-HL4-AK0

$62.12

7

HANGER COMP L, ENG

50325-HL4-AK0

$52.03

8

BRACKET, FR. FINAL

50350-HL4-F00

$4.76

9

BRACKET, FR. FINAL (LOWER)

50360-HL4-A00

$8.46

10

PIPE, R. STEP

50370-HL4-AK0

$350.91

11

PIPE COMP L, STEP

50380-HL4-AK0

$335.14

12

STAY, R. RR. FOOT WELL

50501-HL4-A00

$22.93

13

RUBBER, STAND STOPPER

50524-HL4-F00

$4.49

14

STAY, L FOOTWELL

50551-HL4-AK0

$40.32

15

RUBBER ASSY., MOUNTING

50810-HL4-A01

$23.35

16

BOLT, FLANGE (8X80)

90113-HL4-AK0

$0.76

17

BOLT, FLANGE (12X28)

90116-HL4-BA0

$6.33

18

CLAMP, HARNESS

90652-HC4-003

$5.54

19

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

20

CAP, PIPE END (1-3/4")

90861-HL1-A00

$3.19

21

SEAL, BRAKE PEDAL MT

90883-HL4-AK0

$0.32

22

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

23

NUT, FLANGE (10MM)

94050-10000

$1.41

24

BOLT, FLANGE (6X12)

95701-06012-08

$1.48

25

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

26

BOLT, FLANGE (10X18) (SOURCE: VINTAGE PARTS INC.)

95701-10018-00

$3.54

27

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

Unavailable

28

BOLT, FLANGE (10X32)

95701-10032-00

$1.32

29

BOLT, FLANGE (10X70)

95801-10070-00

$1.64

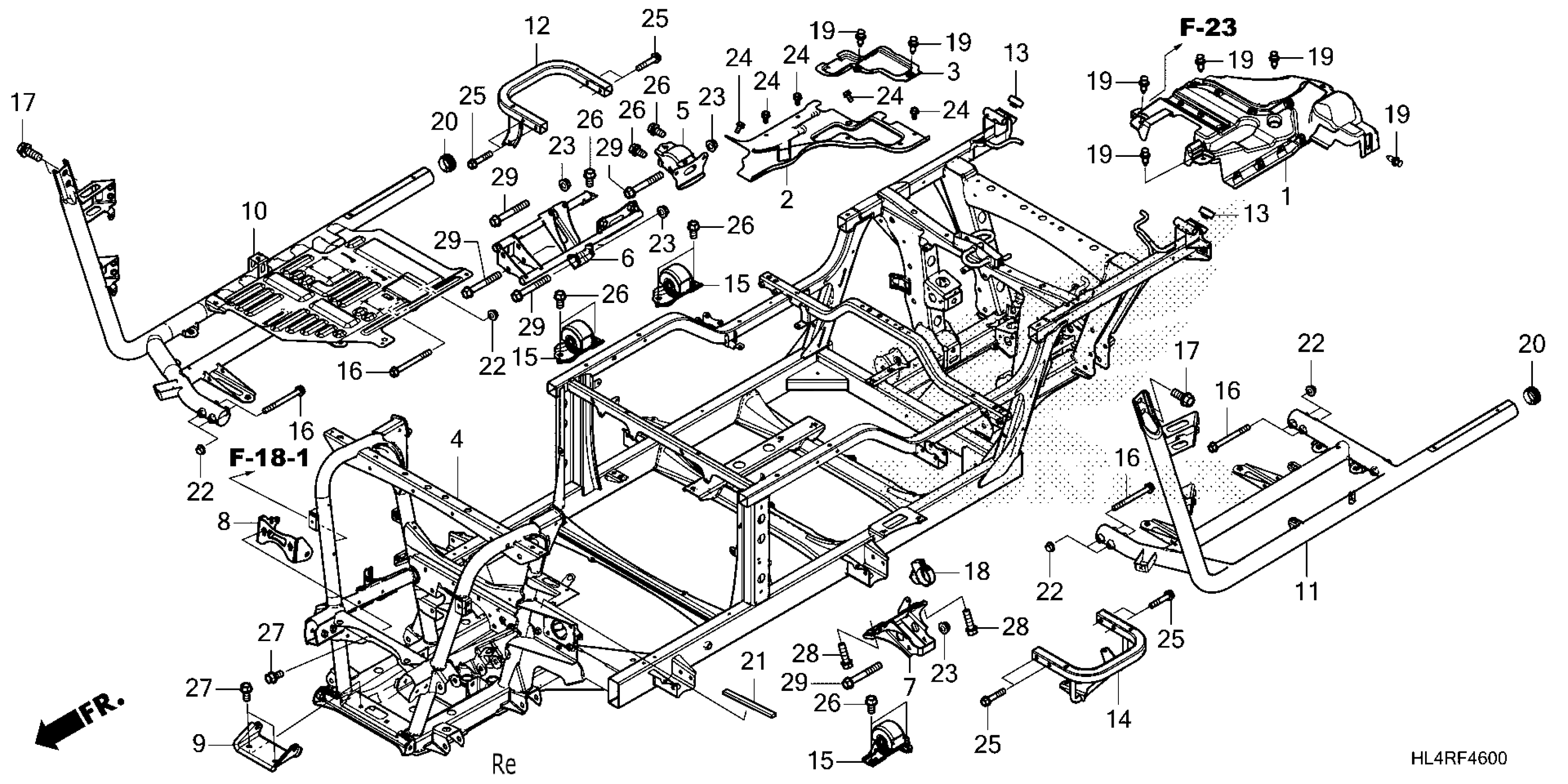

Honda SXS1000M5DA (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE042-R4800001 TO 1HFVE042-R4899999 FRAME Diagram
