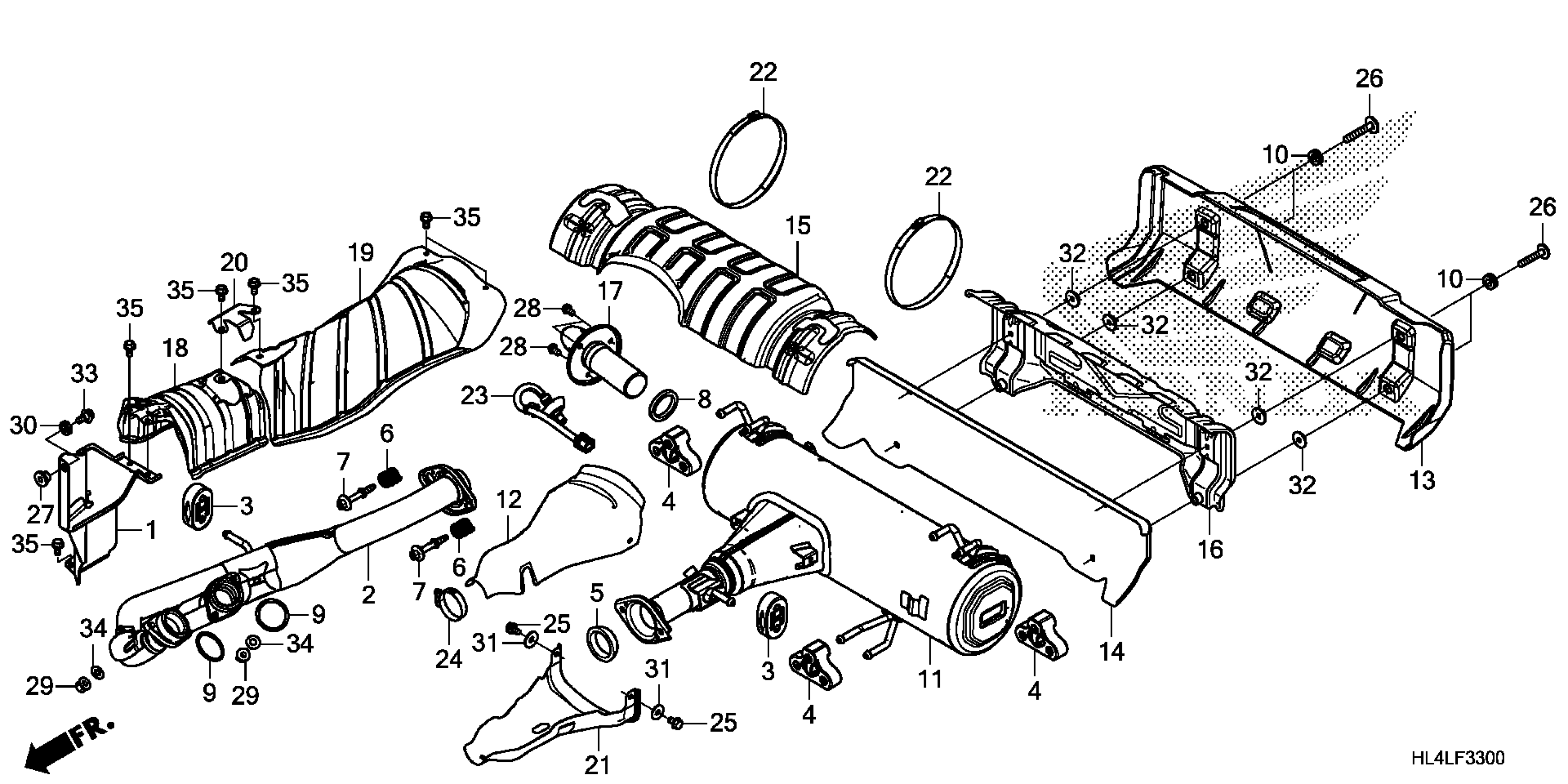

Honda SXS1000M5DA (20) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE042-L4400001 MUFFLER Diagram

#

Description
Price

1

PROTECTOR, TANK HEAT GUARD

17515-HL4-A00

$17.04

2

PIPE ASSY., EX.

18200-HL4-A00

$270.06

3

RUBBER, EX. MOUNTING

18215-S84-A20

$10.43

4

RUBBER, EX. MOUNTING

18215-TL2-A01

$15.54

5

GASKET, EX. FLEXIBLE

18229-SNE-A01

$13.69

6

SPRING, FLEXIBLE JOINT

18230-HL4-A00

$5.71

7

BOLT B, FLEXIBLE JOINT

18231-SNA-A00

$10.21

8

GASKET, EX. PIPE

18291-KAE-870

$4.07

9

GASKET, EX. PIPE

18291-MM8-880

$6.65

10

RUBBER, PROTECTOR MOUNTING

18293-HL4-A00

$2.81

11

MUFFLER

18310-HL4-F00

Unavailable

12

COVER, FR. MUFFLER

18311-HL4-A00

$35.94

13

PROTECTOR, MUFFLER

18312-HL4-A03

$16.39

14

COVER, MUFFLER (INNER)

18313-HL4-A00

$39.64

15

COVER, RR. MUFFLER

18315-HL4-A00

$44.54

16

PROTECTOR, MUFFLER (INNER)

18316-HL4-MA0

$88.77

17

ARRESTER, SPARK

18317-HL4-F00

Unavailable

18

PROTECTOR A, HEAT

18326-HL4-A00

$42.96

19

PROTECTOR B, HEAT

18327-HL4-A00

$51.54

20

PROTECTOR, HEAT (D)

18329-HL4-A00

$9.59

21

COVER, FR. MUFFLER (LOWER)

18331-HL4-F00

$33.30

22

BAND, MUFFLER COVER (114-165MM)

19084-HL4-A00

$3.25

23

SENSOR, OXYGEN

36531-HL4-A01

$60.95

24

BAND, SUB-TANK

50252-MW0-000

$20.96

25

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.16

26

BOLT, SPECIAL (6X35)

90111-HL4-A02

$3.16

27

COLLAR, REFLECTOR SETTING

90129-463-770

$2.93

28

BOLT, FLANGE (6X10) (SUS) (Honda Code 8955874)

90200-HW5-900

$2.16

29

NUT, FLANGE (8MM)

90301-HM8-000

$2.46

30

RUBBER, HEAT GUARD

90502-HL4-A00

$1.10

31

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.70

32

COLLAR, FR. FENDER

90505-MBK-750

$2.80

33

BOLT-WASHER (6X16)

93404-06016-08

$1.48

34

WASHER, PLAIN (8MM)

94101-08800

$1.71

35

BOLT, FLANGE (6X12)

95701-06012-08

$1.48
