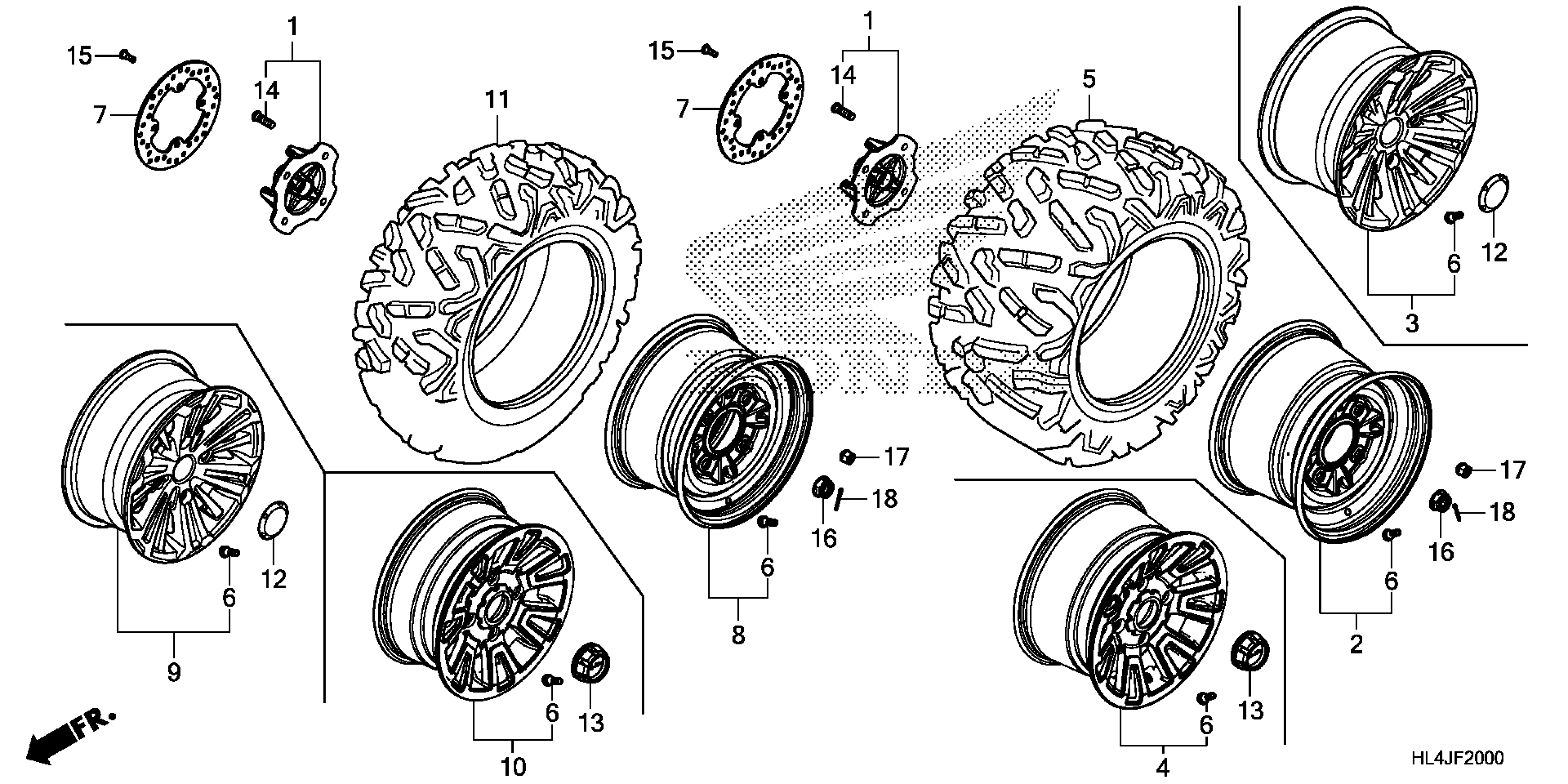

Honda SXS1000M5DA (18) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE042-J4200001 WHEEL Diagram

#

Description

Price

1

HUB SUB-ASSY., WHEEL

42615-HL4-F00

$113.13

3

WHEEL SUB-ASSY., RR. (BLK.MACHINED APPLY TO PATRIOT RED&ROSS WHITE MLDS.AREA A&AC)

42650-HL4-A12

$311.38

5

TIRE (27X11.00-14NHS) (CST) (MAXXIS 2.0 BIGHORN)

42711-HL4-A11

Unavailable

6

VALVE, RIM (TR412)

42753-HL3-A00

$2.20

7

DISK, BRAKE

43251-HL4-A01

$19.82

9

WHEEL SUB-ASSY., FR. (BLK.MACHINED APPLY TO PATRIOT RED&ROSS WHITE MLDS.AREA A&AC)

44650-HL4-A12

$311.03

11

TIRE (27X9.00-14NHS) (CST) (MAXXIS BIGHORN 2.0)

44711-HL4-A11

$120.00

12

CAP, WHEEL CENTER

44732-HL4-A10

$46.75

14

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.78

14

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

15

BOLT, DISK (8X24)

90116-HP6-A00

$2.92

16

NUT, AXLE (20MM)

90304-HM7-A10

$12.05

17

NUT, WHEEL (CHROME PLATED) (FUSE RASHI)

90304-SA5-013

$12.06

18

PIN, COTTER (4.0X30)

94201-40300

$1.49
