Description

Price

8

BAND, WIRE (BLACK)

90652-KT1-771

$4.48

9

CONTROL UNIT, AUDIO

39110-HL4-AZ0

$1,115.97

10

SPEAKER ASSY., RR.

39120-HL4-AZ0

$195.44

11

HARNESS

39122-HL4-AZ0

$123.92

12

SPEAKER ASSY., FR.

39130-HL4-AZ0

$206.07

13

SPEAKER ASSY., FL

39135-HL4-AZ0

$206.07

14

SUBWOOFER ASSY.

39140-HL4-AZ0

$890.95

15

BRACKET, SUB (LOWER)

39141-HL4-AZ0

$32.05

16

BRACKET, R. SUB

39142-HL4-AZ0

$16.69

17

BRACKET, L. SUB

39143-HL4-AZ0

$18.51

18

HARNESS

39145-HL4-AZ0

$21.15

19

ANTENNA ASSY., FM

39150-HL4-AZ0

$73.51

20

MOUNT, HEAD UNIT

39170-HL4-AZ0

$293.46

21

HEAD UNIT, AUDIO

39171-HL4-AZ0

$304.21

22

HARNESS, POWER

39184-HL4-AZ0

$78.54

23

HARNESS, AUX

39185-HL4-AZ0

$20.64

24

CORD, AUX

39186-HL4-AZ0

$7.84

25

HARNESS, AUDIO EXT

39187-HL4-AZ0

$39.34

26

HARNESS

39255-HL4-AZ0

$65.00

27

HARNESS, SWITCH

39256-HL4-AZ0

$55.31

28

HARNESS, FUSE

39260-HL4-AZ0

$156.02

29

CLAMP, DOUBLE

39415-HL4-AZ0

$18.08

30

CLAMP (TYPE1)

39416-HL4-AZ0

$8.02

31

BOLT (M6X16)

39521-HL4-AZ0

$1.41

32

WASHER (M6)

39522-HL4-AZ0

$0.89

33

SCREW (#4-20X0.45)

39523-HL4-AZ0

$5.18

34

BOLT (M4X12)

39524-HL4-AZ0

$0.87

35

WASHER (M4)

39525-HL4-AZ0

$0.87

36

SCREW (6X20)

39581-HL4-AZ0

$4.46

37

WASHER, SUS (M6)

39582-HL4-AZ0

$1.46

38

BOLT (M6X12)

39583-HL4-AZ0

$1.43

39

WASHER (M6)

39584-HL4-AZ0

$1.43

40

WASHER (M8)

39585-HL4-AZ0

$0.89

41

RUBBER, DAMPER

39586-HL4-AZ0

$63.62

42

WASHER, SUS (M6)

39587-HL4-AZ0

$1.03

43

BOLT (M6X20)

39588-HL4-AZ0

$7.89

44

NUT, SUS (M6)

39589-HL4-AZ0

$1.13

45

NUT, FLANGE (M4)

39592-HL4-AZ0

$1.08

46

BOLT, SHCS (M6X45)

39593-HL4-AZ0

$1.79

47

SCREW, SET (M6)

39594-HL4-AZ0

$1.08

48

COVER, TERMINAL

39601-HL4-AZ0

$10.49

49

BLOCK ASSY., POWER

39602-HL4-AZ0

$198.25

50

MOUNT, FUSE BOX

39603-HL4-AZ0

$54.89

51

HARNESS, SPLIT

39604-HL4-AZ0

$155.03

52

HARNESS, SPEAKER

39605-HL4-AZ0

$27.57

53

HARNESS, SPEAKER

39606-HL4-AZ0

$31.31

54

HARNESS, KEY SWITCH

39607-HL4-AZ0

$151.61

55

BAND, WIRE (5)

90652-HL4-AZ0

$2.20

56

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

57

PACKET, USER GUIDE

39172-HL4-AZ0

$1.67

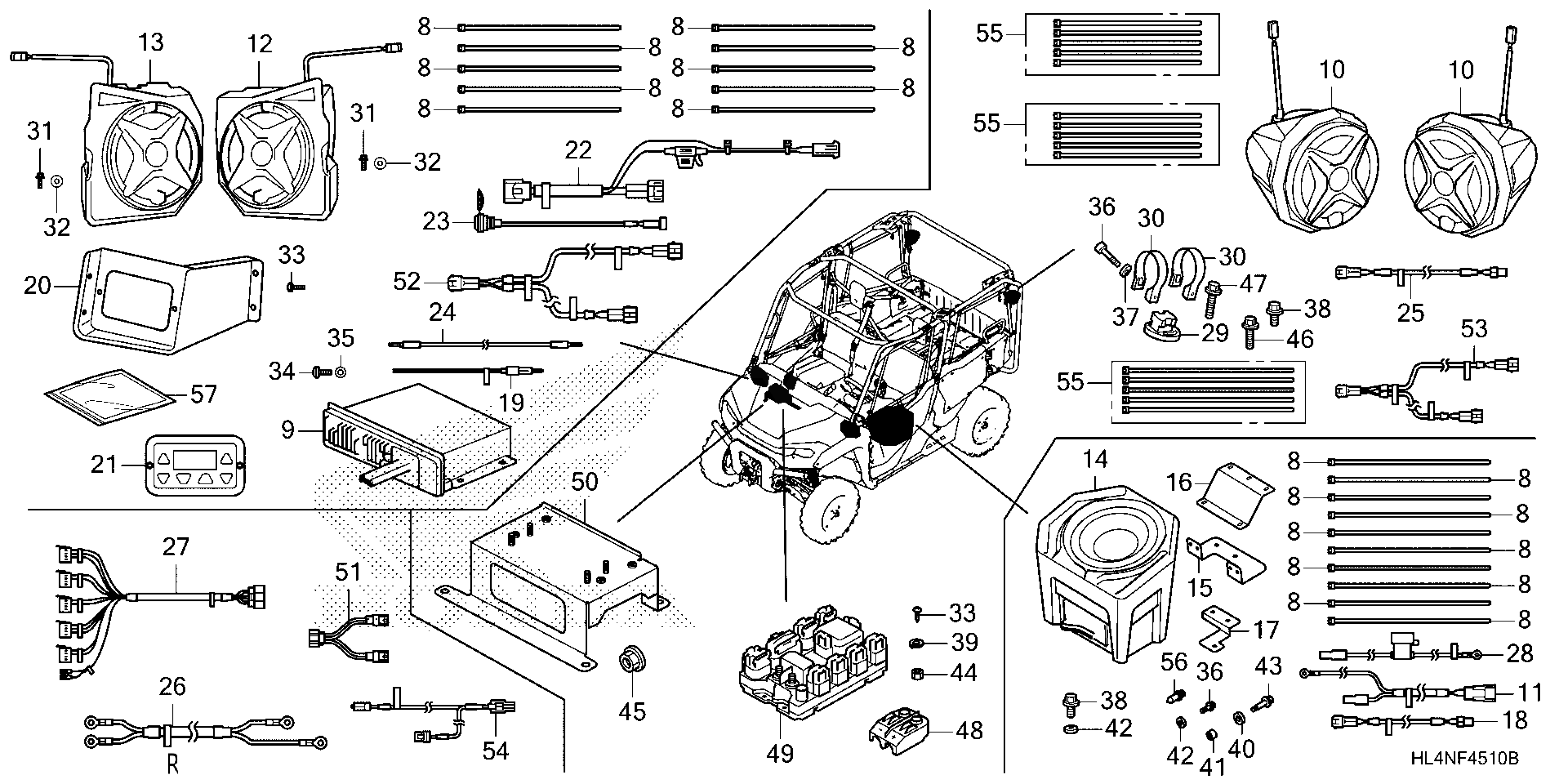

Honda SXS1000M5D8AC (22) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04L-N4600001 TO 1HFVE04L-N4649999 AUDIO UNIT@SPEAKER Diagram

BAND, WIRE (BLACK)

CONTROL UNIT, AUDIO

SPEAKER ASSY., RR.

HARNESS

SPEAKER ASSY., FR.

SPEAKER ASSY., FL

SUBWOOFER ASSY.

BRACKET, SUB (LOWER)

BRACKET, R. SUB

BRACKET, L. SUB

HARNESS

ANTENNA ASSY., FM

MOUNT, HEAD UNIT

HEAD UNIT, AUDIO

HARNESS, POWER

HARNESS, AUX

CORD, AUX

HARNESS, AUDIO EXT

HARNESS

HARNESS, SWITCH

HARNESS, FUSE

CLAMP, DOUBLE

CLAMP (TYPE1)

BOLT (M6X16)

WASHER (M6)

SCREW (#4-20X0.45)

BOLT (M4X12)

WASHER (M4)

SCREW (6X20)

WASHER, SUS (M6)

BOLT (M6X12)

WASHER (M6)

WASHER (M8)

RUBBER, DAMPER

WASHER, SUS (M6)

BOLT (M6X20)

NUT, SUS (M6)

NUT, FLANGE (M4)

BOLT, SHCS (M6X45)

SCREW, SET (M6)

COVER, TERMINAL

BLOCK ASSY., POWER

MOUNT, FUSE BOX

HARNESS, SPLIT

HARNESS, SPEAKER

HARNESS, SPEAKER

HARNESS, KEY SWITCH

BAND, WIRE (5)

CLIP, SPLASH GUARD (Honda Code 3795994)

PACKET, USER GUIDE
