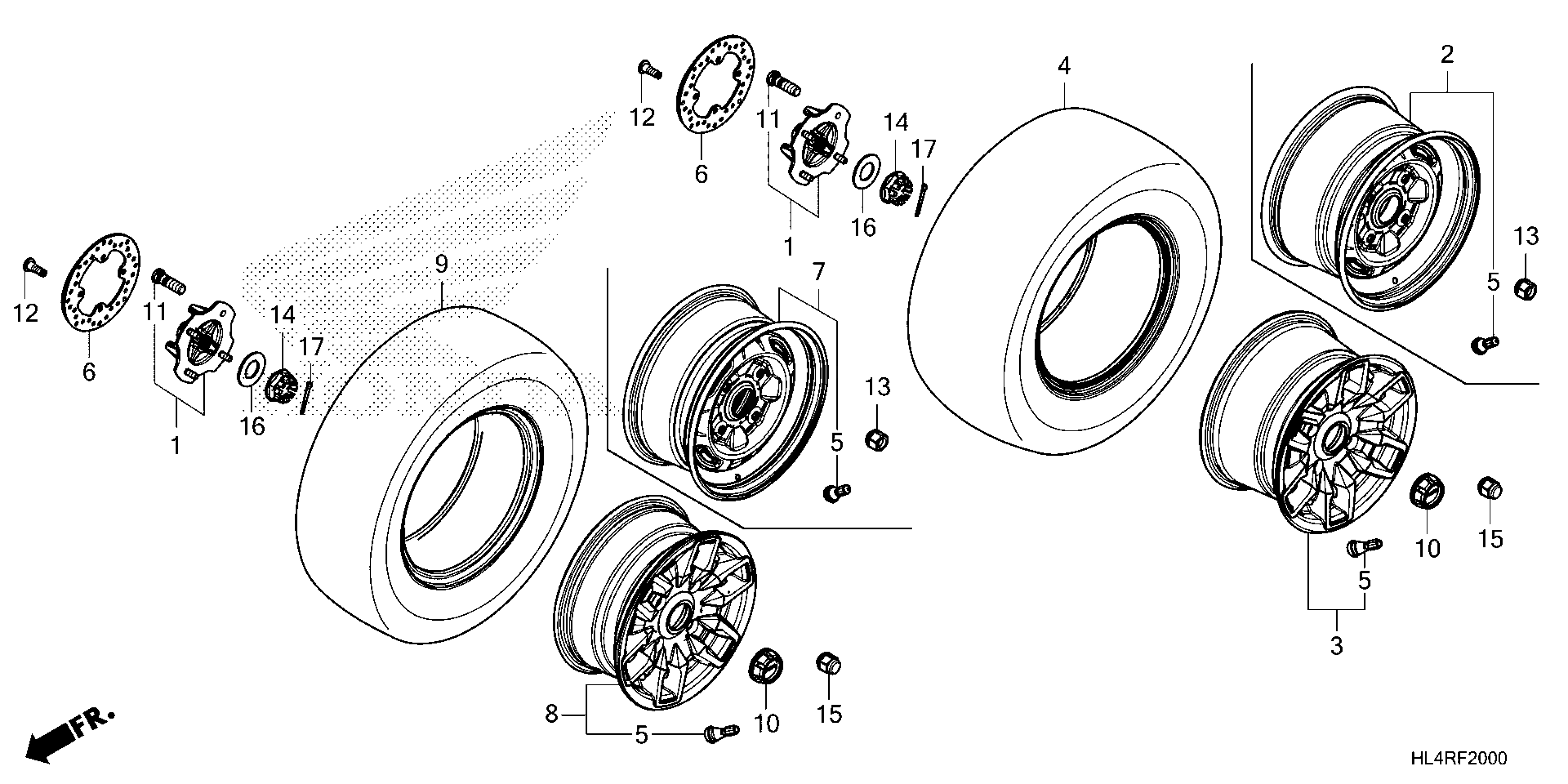

Honda SXS1000M5D7AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04R-R4800001 TO 1HFVE04R-R4899999 WHEEL Diagram

HUB SUB-ASSY., WHEEL

42615-HL4-AK0

$305.57

WHEEL SUB-ASSY., RR.

42650-HL4-AK0

$248.08

TIRE (27X11.00R14)

42711-HL4-A91

$129.48

VALVE, RIM (TR412)

42753-HL3-A00

$2.20

DISK, BRAKE

43251-HL4-A01

$19.82

WHEEL SUB-ASSY., FR.

44650-HL4-AK0

$215.56

TIRE (27X9.00R14)

44711-HL4-A91

$157.96

CAP, WHEEL CENTER

44732-HR6-A60

$7.56

BOLT, WHEEL (ROCKNEL FASTENER) This part replaces 90113-SA0-006.

90113-SM1-005

$2.78

BOLT, WHEEL (ROCKNEL FASTENER)

90113-SM1-005

$2.78

BOLT, DISK (8X24)

90116-HP6-A00

$2.92

NUT, AXLE (22MM)

90306-HL4-AK0

$8.83

NUT, WHEEL

90307-MCA-000

$5.58

WASHER, PLAIN (43MM)

90506-HL4-AK0

$1.54

PIN, COTTER (4.0X40)

94201-40400

$1.49
