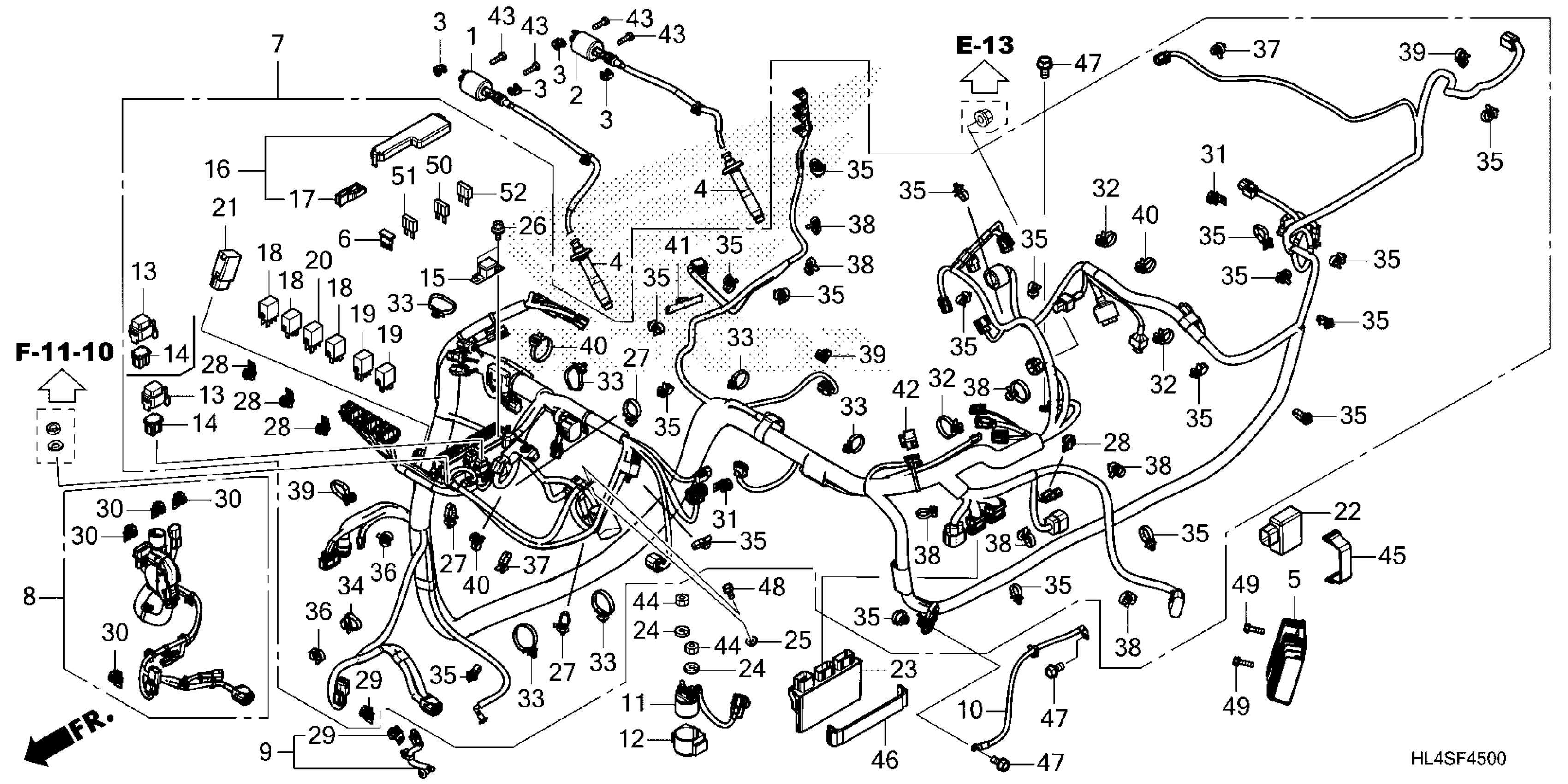

Honda SXS1000M5D6AC (25) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04N-S4900001 TO 1HFVE04N-S4999999 WIRE HARNESS Diagram

#

Description
Price

1

COIL COMP, FR. IGN

30510-HL4-AK1

$84.62

2

COIL COMP, RR. IGN

30520-HL4-AK1

$84.62

3

SPACER, IGNITION COIL

30520-ML7-000

$3.77

4

CAP ASSY., NOISE SUPPRESSOR

30700-HL4-A01

$50.80

5

REG RECT COMP

31600-HL4-AK1

Unavailable

6

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

7

WIRE HARNESS

32100-HL4-FU0

$797.75

8

SUB-HARNESS, FR.

32102-HL4-AQ0

$627.36

10

CABLE, FRAME GROUND

32603-HL4-A00

$6.66

11

SWITCH ASSY., STARTER MAGNETIC

35850-HL4-A01

$44.05

12

RUBBER, MAGNETIC SHOCK (Honda Code 8611063)

35856-HP5-600

$4.44

13

COVER ASSY., FUSE (40A)

38205-HP0-B11

$4.67

14

FUSE, BLOCK (40A)

38211-SNA-A21

$4.45

15

FUSE, BLOCK (50A)

38213-SM4-003

$13.24

16

SET, FUSE COVER

38230-HL4-LQ0

$5.07

17

PULLER, MINI FUSE (SUMITOMO)

38235-S04-003

$1.49

18

RELAY, POWER (MICRO ISO 4P)

38501-MCS-G01

$10.76

19

RELAY, POWER (MICRO ISO 5P)

38502-MCS-G01

$10.37

20

RELAY, POWER (MICRO ISO 4P)

38503-MCA-A61

$3.53

21

RELAY, WATERPROOF (15AX2) (Honda Code 8557167)

38580-HP5-601

$46.40

22

CONTROL UNIT, FAN

38710-HL6-A01

$54.12

23

UNIT COMP

38770-HL4-LJ5

$305.13

24

WASHER, SPRING (6MM) (Honda Code 1310549)

90052-ZA0-800

$1.49

25

NUT-WASHER (6MM)

90071-MB0-000

$1.97

26

BOLT (5X13)

90114-SG0-003

$6.31

27

CLIP, HARNESS BAND (164.5MM) (BROWN)

91507-SNA-003

$0.59

28

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

30

CLIP, CONNECTOR (DARK BLUE)

91535-STK-003

$6.13

31

CLIP, CONNECTOR (DARK BROWN)

91535-TA0-003

$4.15

32

CLIP, HARNESS BAND (157.7MM) (BLACK)

91540-S7S-003

$5.80

33

CLIP, HARNESS BAND (155.3MM) (BLACK)

91540-STK-003

$3.88

35

CLIP, HARNESS BAND (100.1MM) (NATURAL)

91540-TA0-003

$1.49

37

CLIP, HARNESS BAND (100.1MM) (NATURAL)

91540-TA0-003

$1.49

38

CLIP (159MM)

91540-TAA-003

$3.03

39

CLIP (159MM)

91540-TAA-003

$3.03

40

CLIP, HARNESS BAND (164.5MM) (DARK BLUE)

91542-SNA-003

$1.49

41

CLIP, HARN (70MM)

91550-TA0-003

$4.80

42

CONNECTOR, DUMMY (6P 025M)

91771-MKG-D81

$8.77

43

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

44

NUT, HEX. (6MM)

94002-06390-0S

$1.49

45

BAND B2, BATTERY

95012-13001

$5.28

46

BAND F, BATTERY (155MM)

95012-17001

$7.23

47

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

48

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

49

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

50

FUSE, MINI (10A)

98200-41000

$1.49

51

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

52

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
