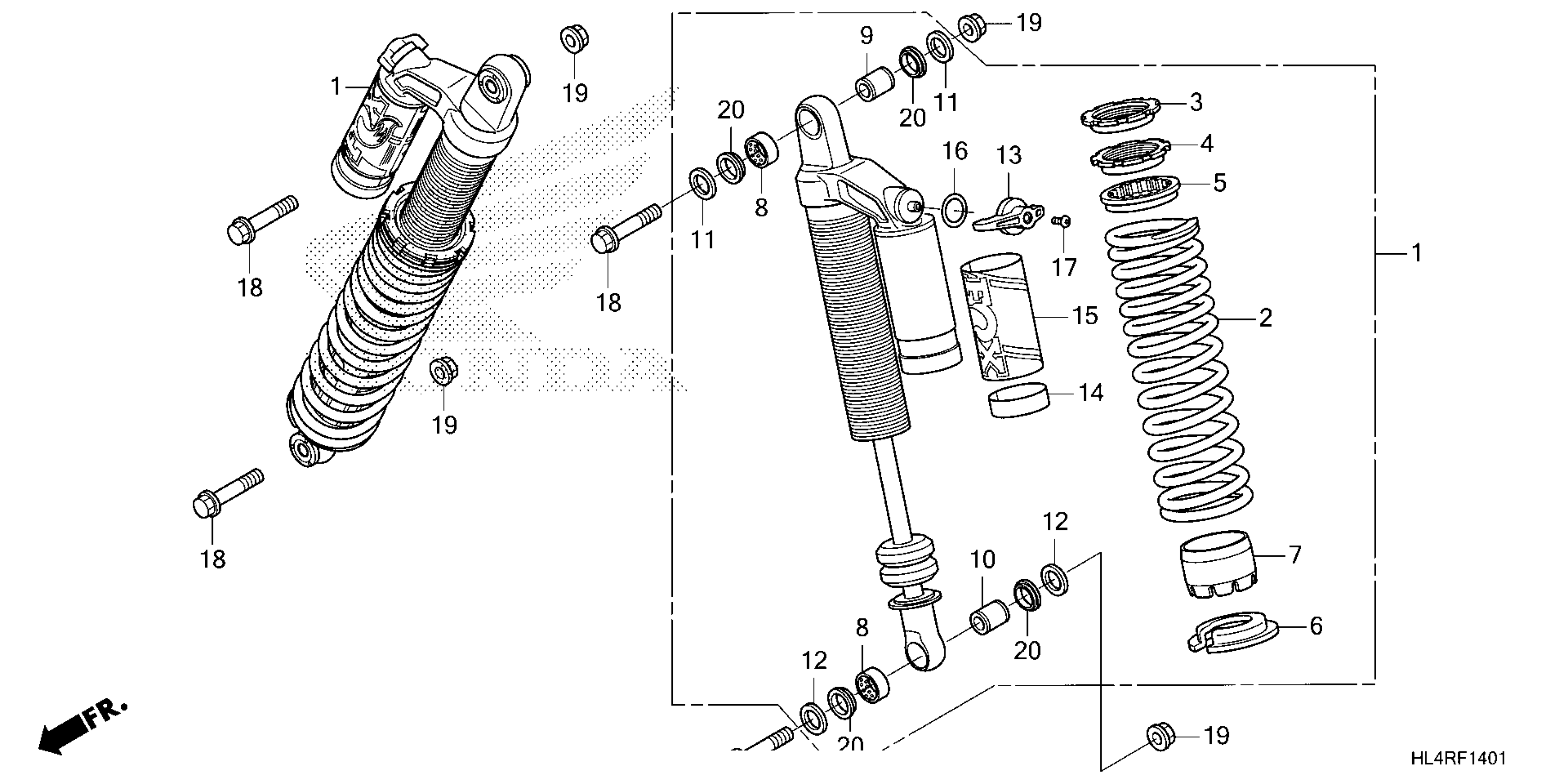

Honda SXS1000M5D6AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04N-R4800001 TO 1HFVE04N-R4899999 FRONT CUSHION (2) Diagram

CUSHION ASSY., FR. (TYPE1)

51400-HL4-AG1ZA

$1,087.54

SPRING, FR. FORK

51401-HL4-AG1

$190.85

RING, BACK-UP PRELOAD

51403-HL4-F41

$14.35

RING, PRELOAD

51404-HL4-F41

$14.89

ADAPTER, SPRING

51405-HL4-F41

$4.35

RETAINER, SPRING (LOWER)

51408-HL4-F41

$43.32

GUIDE, SPRING

51409-HL4-F41

$4.63

BUSHING, EYELET

51421-HL4-F41

$5.46

SLEEVE, EYELET

51422-HL4-F41

$12.54

SLEEVE, EYELET

51423-HL4-F41

$12.83

SPACER, EYELET

51424-HL4-F41

$4.28

SPACER, EYELET

51425-HL4-F41

$3.69

KNOB, DAMPING ADJUST

51426-HL4-F41

$6.38

DECAL, BAND (TYPE1)

51427-HL6-A01ZA

$14.62

DECAL, RESERVOIR (TYPE1)

51428-HL6-A01ZA

$9.06

DECAL, BASE VALVE

51429-HL4-F41

$10.06

BOLT, TORX

90110-HL4-F41

$1.31

BOLT, FLANGE (12X60) (NOT AVAILABLE USE REPLACEMENT 90173-SM4-000) (NA USE ALT:90173-SM4-000)

90163-S73-000

Unavailable

NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)

90215-SB0-003

$2.37

SEAL

91353-HL4-F41

$7.32
