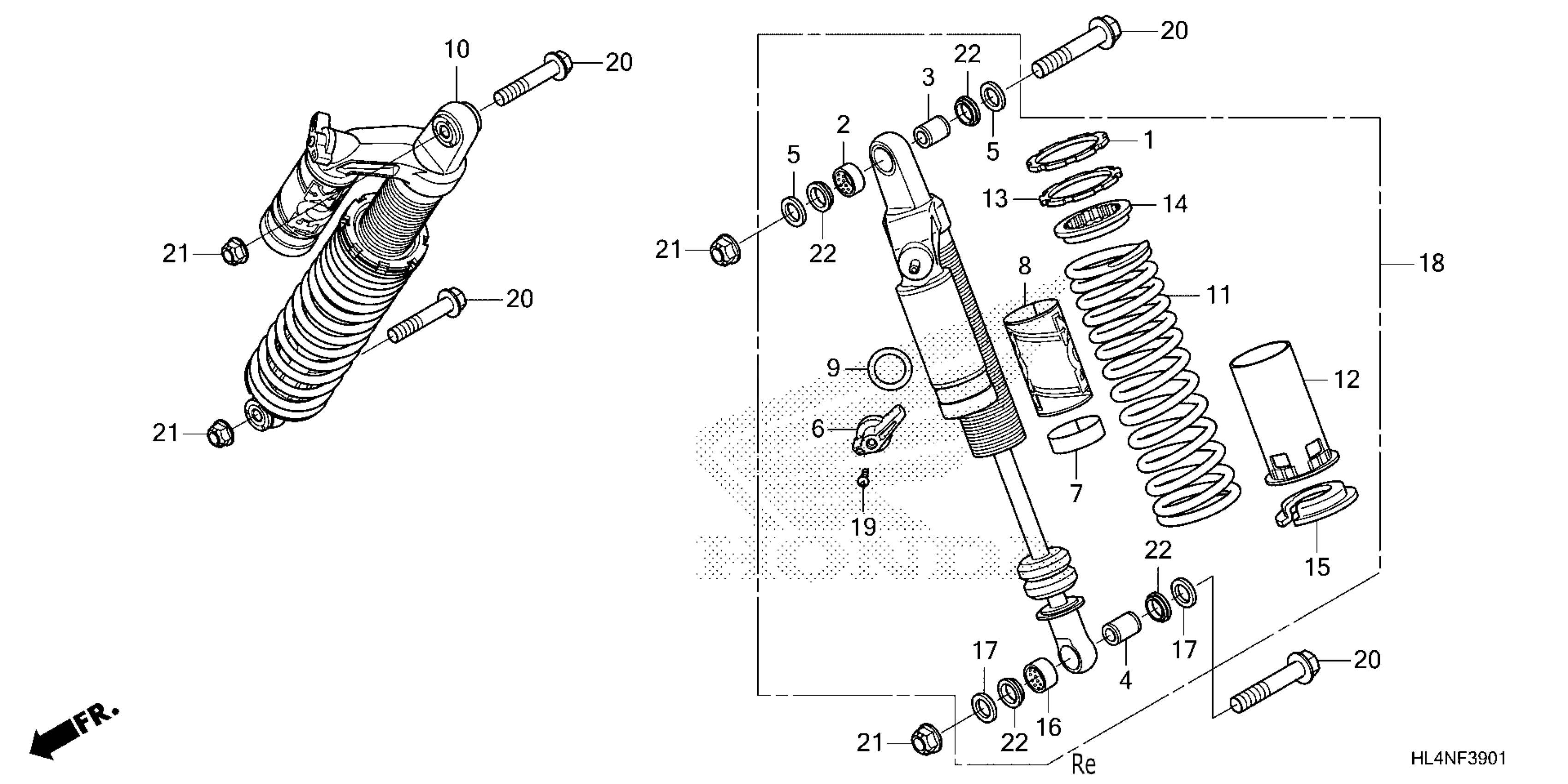

Honda SXS1000M5D4A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE049-P4700001 TO 1HFVE049-P4749999 REAR SHOCK ABSORBER (2) Diagram

RING, BACK-UP PRELOAD

51403-HL4-F41

$13.52

BUSHING, EYELET

51421-HL4-F41

$5.14

SLEEVE, EYELET

51422-HL4-F41

$11.81

SLEEVE, EYELET

51423-HL4-F41

$12.09

SPACER, EYELET

51424-HL4-F41

$4.03

KNOB, DAMPING ADJUST

51426-HL4-F41

$6.01

DECAL, BAND (TYPE1)

51427-HL6-A01ZA

$13.77

DECAL, RESERVOIR (TYPE1)

51428-HL6-A01ZA

$8.54

DECAL, BASE VALVE

51429-HL4-F41

$9.48

CUSHION ASSY., R. RR. (TYPE1)

52400-HL4-AG1ZA

$1,456.55

SPRING, RR. SHOCK ABSORBER

52401-HL4-AG1

$201.64

GUARD, SHAFT

52402-HL4-F41

$31.04

RING, PRELOAD

52404-HL4-F41

$9.04

ADAPTER, SPRING

52405-HL4-F41

$2.88

RETAINER, SPRING (LOWER)

52408-HL4-F41

$61.13

BUSHING, EYELET

52421-HL4-F41

$13.94

SPACER, EYELET

52422-HL4-F41

$4.57

CUSHION ASSY., L. RR. (TYPE1)

52500-HL4-AG1ZA

$1,105.04

BOLT, TORX

90110-HL4-F41

$1.23

BOLT, FLANGE (12X60) (NOT AVAILABLE USE REPLACEMENT 90173-SM4-000) (NA USE ALT:90173-SM4-000)

90163-S73-000

Unavailable

NUT, SELF-LOCK (12MM) (CLINCH) (SATO RASHI)

90215-SB0-003

$2.03

SEAL

91353-HL4-F41

$6.90
