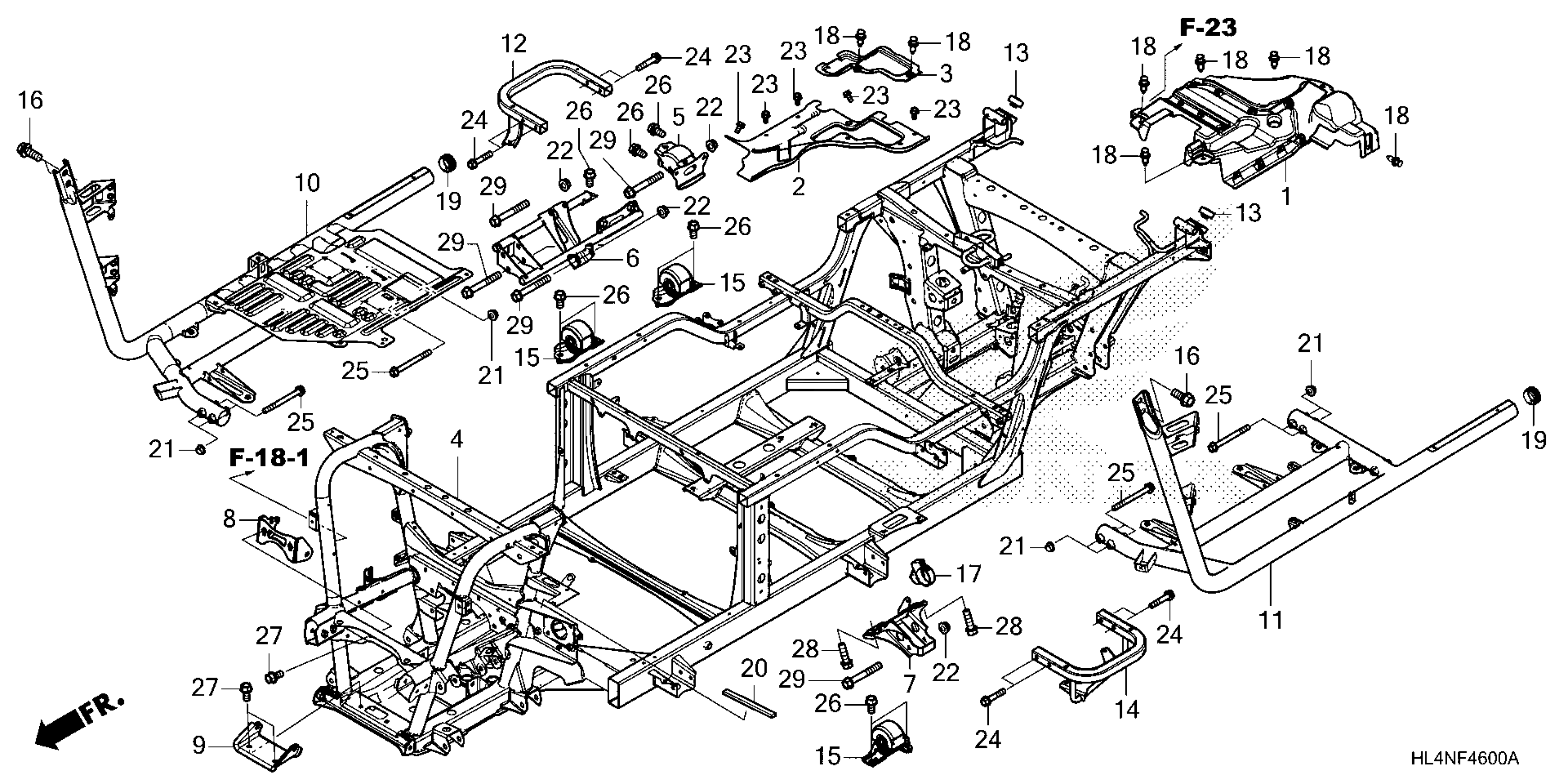

Honda SXS1000M5D3A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04E-P4700001 TO 1HFVE04E-P4749999 FRAME Diagram

COVER, HARNESS GUIDE

18328-HL4-F00

$23.10

PROTR, HEAT SHIELD

18332-HL4-AK0

$78.48

COVER, HEAT SHIELD

18336-HL4-AK0

$20.62

FRAME COMP

50100-HL4-AK0

$1,480.10

BRACKET, R. ENGINE HANGER

50311-HL4-A00

$37.89

HANGER COMP R, ENG

50315-HL4-AK0

$70.26

HANGER COMP L, ENG

50325-HL4-AK0

$58.85

BRACKET, FR. FINAL

50350-HL4-F00

$5.79

BRACKET, FR. FINAL (LOWER)

50360-HL4-A00

$10.30

PIPE, R. STEP

50370-HL4-AK0

$396.93

PIPE COMP L, STEP

50380-HL4-AK0

$379.10

STAY, R. RR. FOOT WELL

50501-HL4-A00

$25.93

RUBBER, STAND STOPPER

50524-HL4-F00

$4.93

STAY, L FOOTWELL

50551-HL4-AK0

$45.61

RUBBER ASSY., MOUNTING

50810-HL4-A01

$24.33

BOLT, FLANGE (12X28)

90116-HL4-BA0

$7.16

CLAMP, HARNESS

90652-HC4-003

$5.95

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

CAP, PIPE END (1-3/4")

90861-HL1-A00

$3.33

SEAL, BRAKE PEDAL MT

90883-HL4-AK0

$0.36

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

BOLT, FLANGE (6X12)

95701-06012-08

$1.67

BOLT, FLANGE (8X40)

95701-08040-00

$1.49

BOLT, FLANGE (8X80)

90113-HL4-AK0

$1.25

BOLT, FLANGE (10X18) (SOURCE: VINTAGE PARTS INC.)

95701-10018-00

$3.80

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

$2.23

BOLT, FLANGE (10X32)

95701-10032-00

$1.49

BOLT, FLANGE (10X70)

95801-10070-00

$1.80
