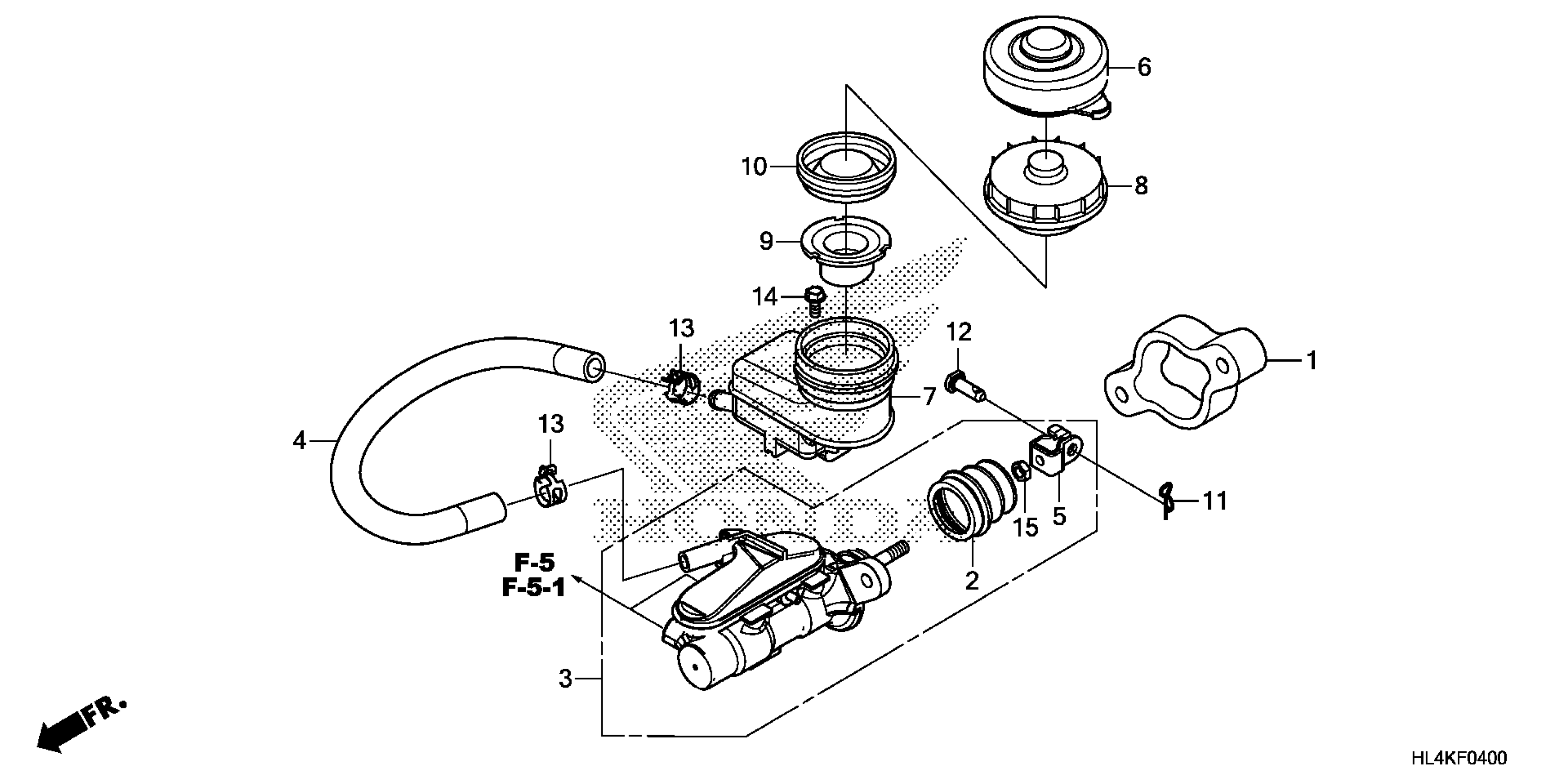

Honda SXS1000M3PAC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04M-K4300001 FRONT BRAKE MASTER CYLINDER Diagram

SPACER, MASTER CYLINDER

45139-HL4-F00

$18.36

BOOT

45504-HL4-A01

$4.79

MASTER CYLINDER SUB-ASSY. (COO) This part replaces 45510-HL4-F01.

45510-HL4-306

$97.42

MASTER CYLINDER SUB-ASSY. (COO)

45510-HL4-306

$97.42

HOSE, RESERVOIR TANK

45512-HL4-F01

$6.39

YOKE (NISSIN)

46151-SA5-003

$15.87

COVER, RESERVE TANK CAP

46163-HL1-A00

$20.33

RESERVOIR

46660-SNA-A01

$49.30

CAP, RESERVE TANK

46662-HL3-A02

$2.75

FILTER, BRAKE RESERVOIR

46666-S2K-003

$9.84

DIAPHRAGM This part replaces 46669-S5A-003.

46669-SCV-A01

$9.82

PIN, LOCK (8MM)

46911-S70-003

$4.28

PIN, CLUTCH PEDAL

46912-S84-A00

$9.21

CLAMP

53726-HL4-F01

$0.95

BOLT, FLANGE (6X14)

90106-MCN-720

$1.85

NUT, HEX. (8MM)

94002-08000-0S

$1.49

NUT, HEX. (8MM) This part replaces 94002-08080-0S.

94002-08000-0S

$1.49
