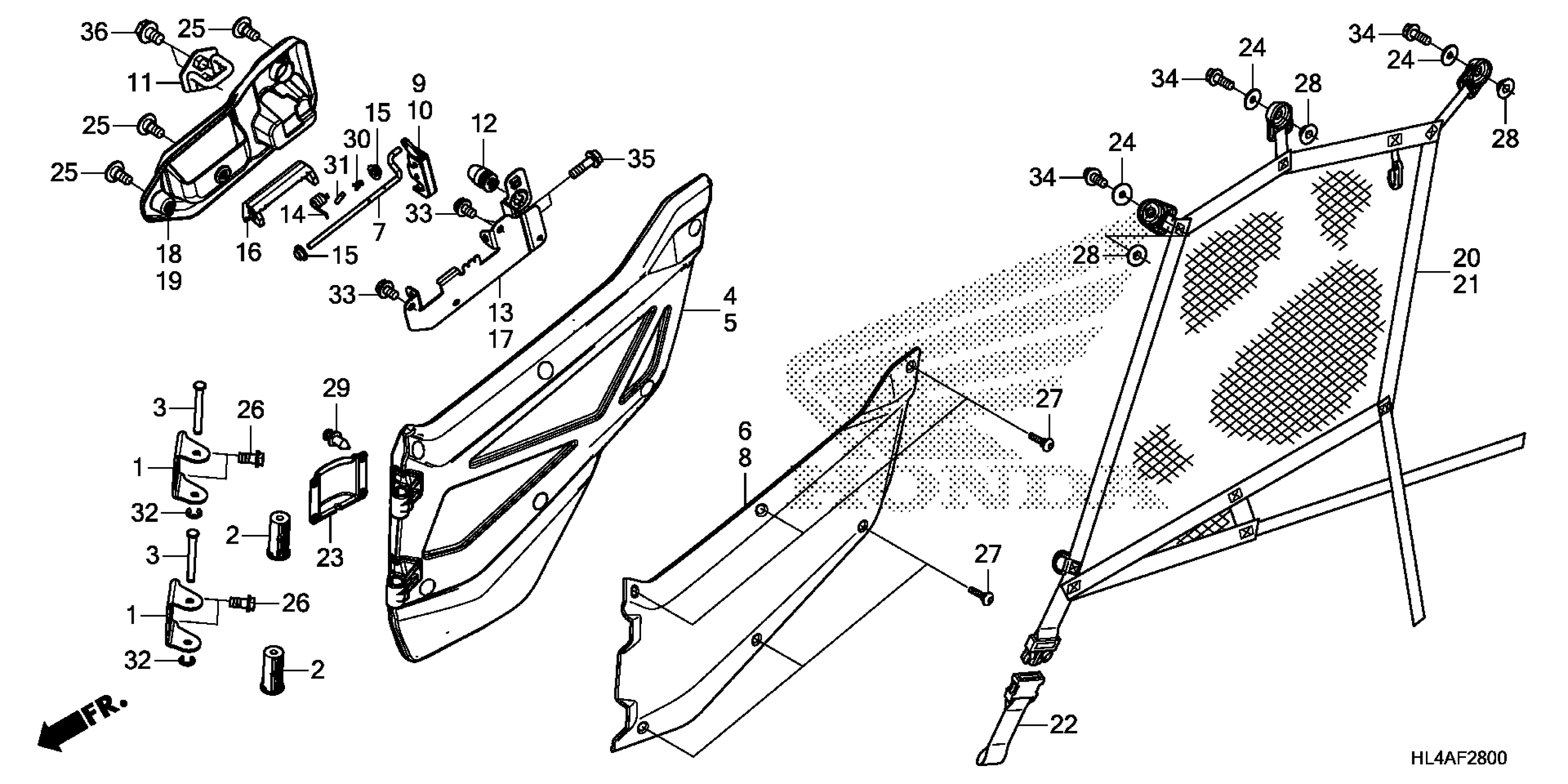

Honda SXS1000M3PAC (17) PIONEER 1000 EPS, USA, VIN# 1HFVE04M-H4100001 FRONT DOOR Diagram

BRACKET, HINGE

67150-HL4-A00

$5.71

COLLAR, HINGE

67151-HL3-A00

$5.63

PIN, HINGE

67153-HL3-A00

$2.75

DOOR, R. FR. *NH1* (BLACK)

67205-HL4-A10ZA

$214.13

DOOR, L. FR. *NH1* (BLACK)

67215-HL4-A10ZA

$213.36

PANEL, R. FR. DOOR *PB404R* (SHALE BLUE R)

67225-HL4-A10ZH

$52.25

PANEL, R. FR. DOOR *R232* (PATRIOT RED)

67225-HL4-A10ZB

$46.21

LEVER, DOOR

67230-HL1-A00

$28.57

PANEL, L. FR. DOOR *PB404R* (SHALE BLUE R)

67235-HL4-A10ZH

$52.25

PANEL, L. FR. DOOR *R232* (PATRIOT RED)

67235-HL4-A10ZB

$45.33

LATCH, R. DOOR

67236-HL1-A01

$12.85

LATCH, L. DOOR

67237-HL1-A01

$13.01

STRIKER, DOOR

67238-HL1-A00

$20.05

STOPPER, DOOR

67239-HL1-A00

$1.49

PLATE, R. DOOR LEVER

67240-HL4-A00

$12.52

SPRING, DOOR LEVER

67241-HL1-A00

$3.27

BUSH, FLANGE (6MM)

67243-HL1-A00

$2.11

HANDLE, DOOR *NH1* (BLACK)

67244-HL1-A00ZA

$5.64

PLATE, L. DOOR LEVER

67250-HL4-A00

$11.57

COVER, R. DOOR *NH1* (BLACK)

67251-HL4-A00ZA

$7.67

COVER, L. DOOR *NH1* (BLACK)

67252-HL4-A00ZA

$7.67

SIDE NET, FR. R This part replaces 67310-HL4-A00.

67310-HL4-A01

$73.24

SIDE NET, FR. L This part replaces 67320-HL4-A00.

67320-HL4-A01

$85.51

SIDE NET ASSY., A This part replaces 67330-HL4-A00.

67330-HL4-A01

$6.48

WASHER, SEAT MOUNTING

77302-124-000

$3.23

SCREW, PAN (6X14)

90106-KBV-000

$3.90

BOLT, SPECIAL (8MM)

90109-GS9-610

$7.23

SCREW, SPECIAL (6X16)

90114-MFL-000

$2.26

COLLAR (6X4)

90127-KF0-770

$3.42

PIN, LOCK (6MM)

94251-06000

$1.49

PIN, SPRING (2.5X16)

94305-25162

$1.49

E-RING (7MM)

94540-07018

$3.17

BOLT, FLANGE (6X10)

95701-06010-08

$1.61

BOLT, FLANGE (6X16)

95701-06016-07

$1.55

BOLT, FLANGE (6X20)

95701-06020-08

$1.49

BOLT, FLANGE (8X12)

95701-08012-08

$1.80
