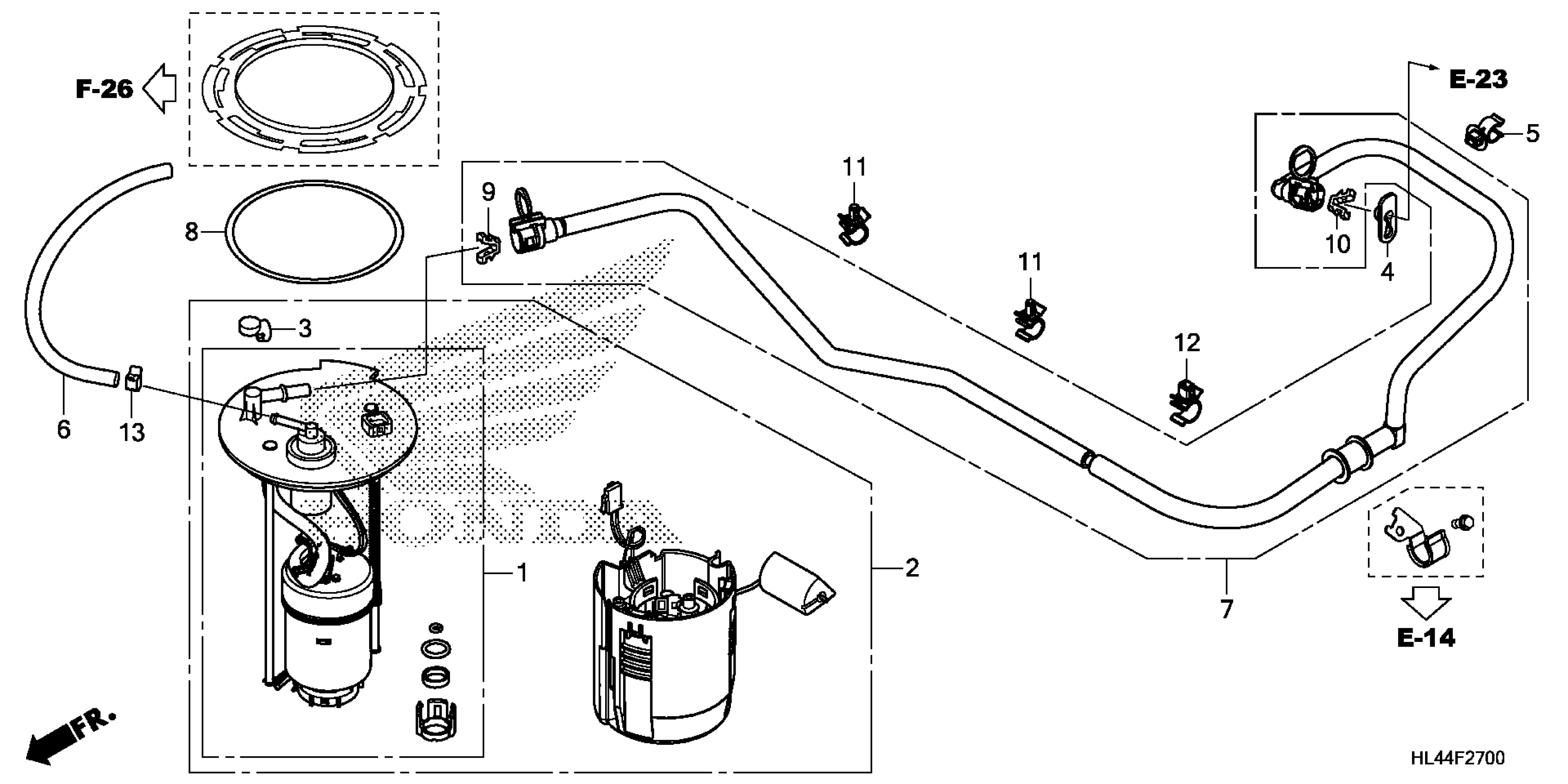

Honda SXS1000M3PAC (16) PIONEER 1000 EPS, USA, VIN# 1HFVE04M-G4000001 FUEL PUMP Diagram

FILTER SET, FUEL

16010-HL3-A01

$61.87

PUMP ASSY., FUEL (MSDS)

16700-HL3-A02

$181.86

DAMPER, CONNECTOR (Honda Code 7003056)

16719-HW1-670

$23.76

DAMPER, CONNECTOR

16719-MEW-920

$2.92

CLAMP A, FUEL HOSE

16725-PNA-003

$1.49

TUBE, FUEL TANK BREATHER

17511-HL4-A00

$4.28

HOSE, FUEL FEED

17570-HL4-A01

$223.25

GASKET, FUEL PUMP

17574-HR3-A21

$4.56

RETAINER (ORANGE) (TOKAI) (Honda Code 5928296)

17711-S0X-003

$2.92

RETAINER (BLUE GREEN) (TOKAI) (Honda Code 5928312)

17711-S0X-931

$3.40

CLIP

90652-HL4-A01

$1.49

CLAMP, HOSE (D15)

90654-HL4-A01

$1.49

CLAMP, TUBE (D10)

95002-41000-08

$2.41
