Description

Price

1

SHAFT, FINAL DRIVE

23251-HL4-000

$68.01

2

GEAR, FINAL DRIVE LOW

23650-HL4-000

$136.28

3

GEAR, FINAL DRIVE HIGH

23670-HL4-000

$134.16

4

GEAR, REVERSE DRIVE (27T)

23691-HL4-000

$93.11

5

GEAR, REVERSE IDLE (16T/20T)

23701-HL4-000

$82.09

6

SHAFT, REVERSE IDLE

23711-HL4-000

$45.19

7

SHIFTER, LOW REVERSE

23751-HL4-000

$67.71

8

COLLAR, LOW REVERSE SHIFTER

23752-HL4-000

$34.68

9

SHIFTER, HIGH

23761-HL4-000

$56.27

10

COLLAR, HIGH SHIFTER

23762-HL4-000

$28.87

11

WASHER (29X43X1)

90412-HL4-000

$3.21

12

WASHER (26X44X1)

90414-HL4-000

$3.21

13

WASHER, SPECIAL (22X43X2)

90416-HL4-000

$4.37

14

WASHER, SPECIAL (25X40X2)

90417-HL4-000

$4.23

15

RING, LOW REVERSE DOUBLE COIL (INNER)

90613-HL4-000

$8.63

16

RING, HIGH REVERSE DOUBLE COIL (INNER)

90614-HL4-000

$8.63

17

CLIP (45.1MM)

90616-HL4-000

$2.71

18

CLIP (41.1MM)

90617-HL4-000

$2.71

19

BEARING, BALL (28X64X15)

91001-PPP-005

$51.98

20

BEARING, RADIAL BALL (63/22)

91002-HL4-003

$27.46

21

BEARING, NEEDLE (26X30X21)

91022-HL4-003

$10.40

22

BEARING, NEEDLE (26X30X17)

91027-HL4-003

$10.40

23

BEARING, NEEDLE (25X32X20)

91030-HL4-003

$13.65

24

BEARING, NEEDLE (29X34X24)

91107-KYJ-902

$10.66

25

BEARING, NEEDLE (25X30X23)

91108-PE6-008

$20.29

26

BALL, STEEL (#7) (7/32)

96211-07000

$1.18

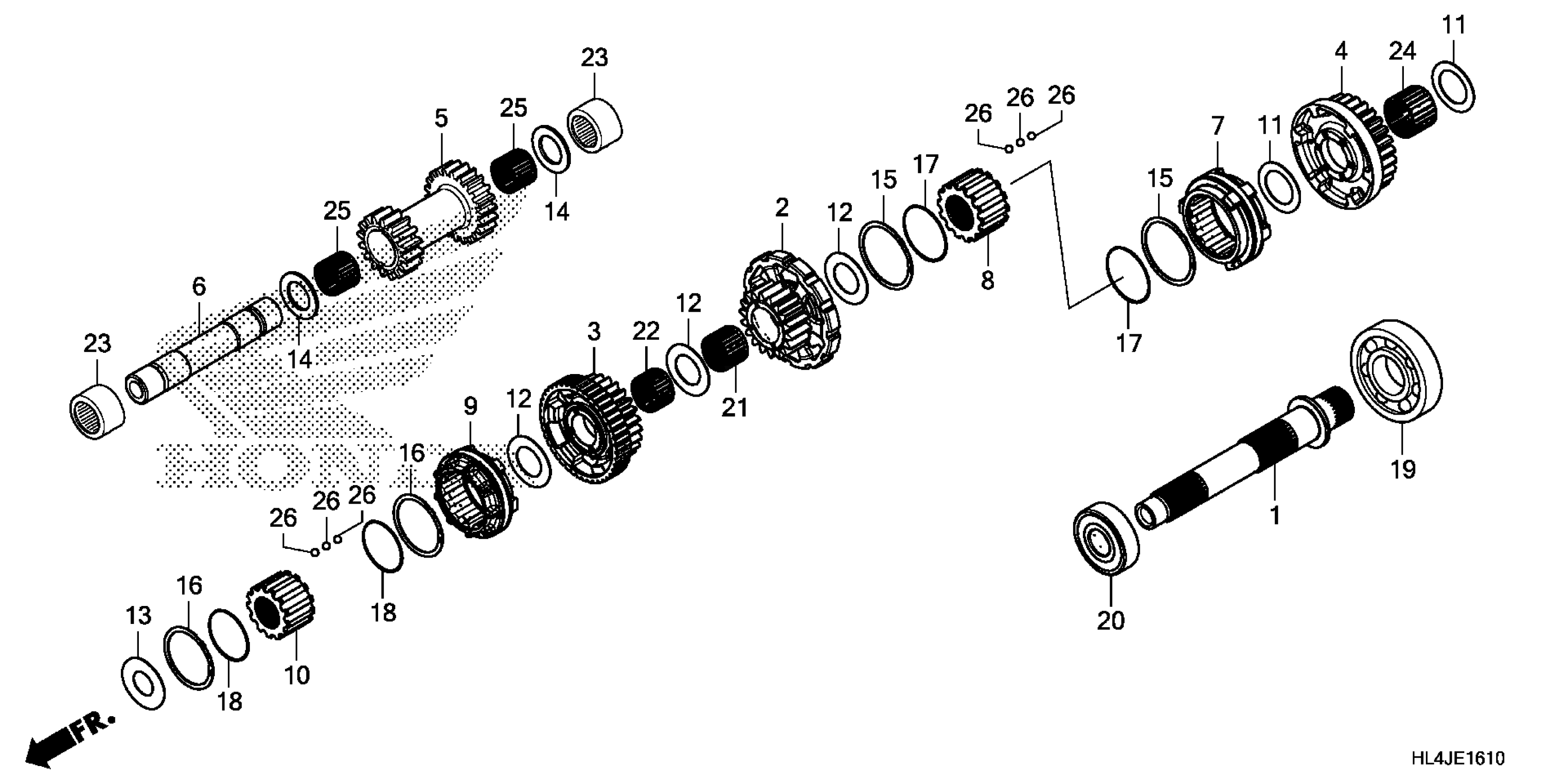

Honda SXS1000M3P2A (18) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04E-J4200001 FINAL DRIVE SHAFT Diagram
