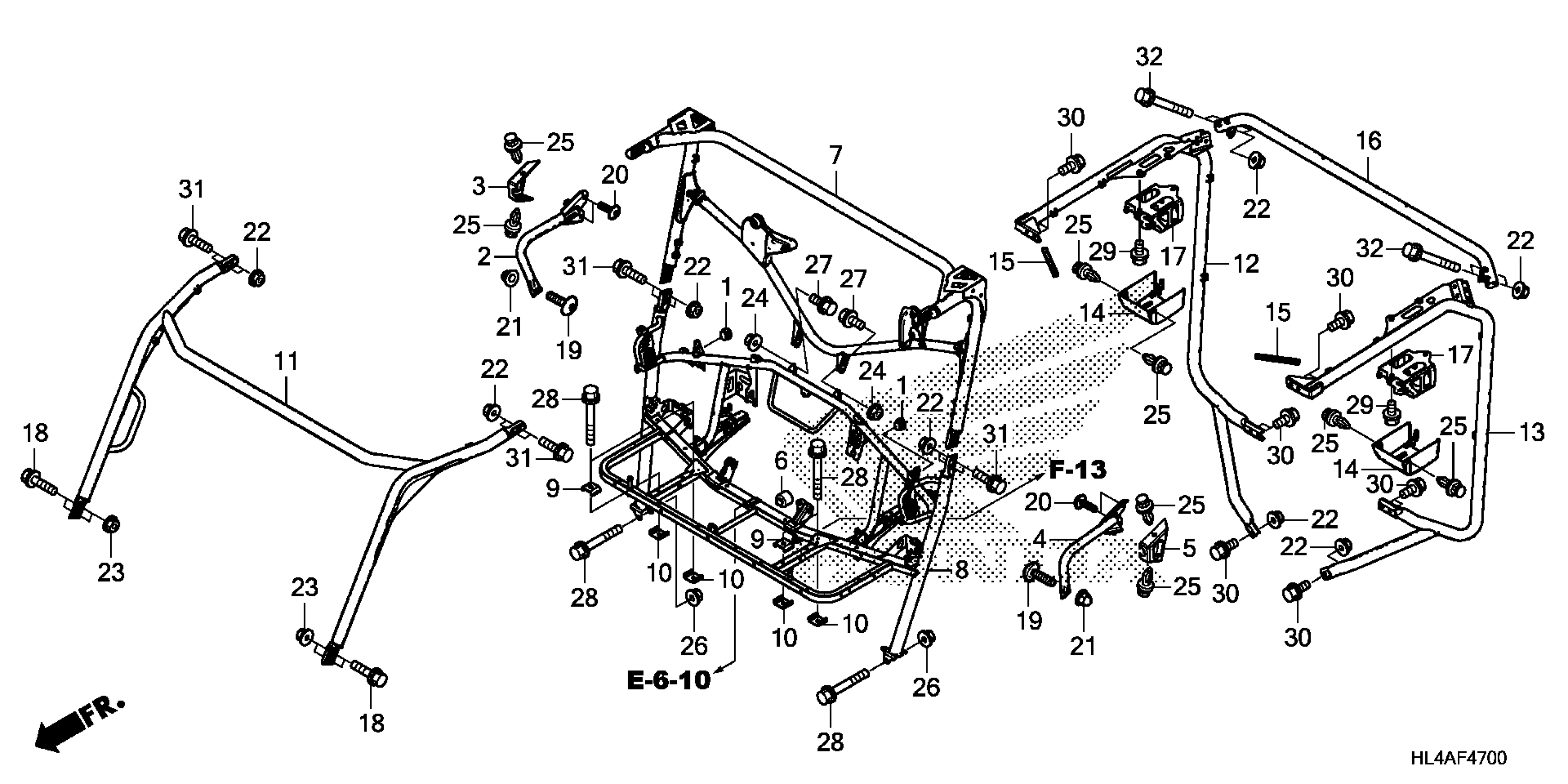

Honda SXS1000M3P2A (17) PIONEER 1000 EPS, USA, VIN# 1HFVE04E-H4100001 ROLL BAR Diagram

RUBBER, STOPPER

47117-196-000

$2.67

BAR, R. FR. TORSO

71810-HL4-F00

$84.89

COVER, R. FR. TORSO

71815-HL4-F00

$2.13

BAR, L. FR. TORSO

71820-HL4-F00

$84.89

COVER, L. FR. TORSO

71825-HL4-F00

$2.13

RUBBER, SEAT SUPPORT PIPE

71905-HL4-F00

$9.93

PIPE, MIDDLE ROLL

71910-HL4-F00

$1,842.67

PIPE, SEAT SUPPORT This part replaces 71930-HL4-F00.

71930-HL4-F01

$3,125.77

PLATE, FRAME MOUNT (A)

71947-HL4-A00

$1.07

PLATE, FRAME MOUNT (C)

71949-HL4-A00

$3.87

PIPE, FR. ROLL

71950-HL4-F00

$995.87

BOLT, FLANGE (12X28)

90116-HL4-A00

$0.67

BOLT, SOCKET (8X22)

90128-KET-900

$2.23

BOLT, SOCKET (6X13)

90130-MEE-000

$1.90

NUT, CAP (8MM)

90301-KBW-940

$3.74

NUT, U (10MM)

90304-VM0-770

$3.56

NUT, FLANGE (12MM) (PT)

90309-HL4-A01

$3.63

NUT, FLANGE (8MM) This part replaces 90309-ML4-901.

90309-MR1-770

$3.12

NUT, FLANGE (8MM)

90309-MR1-770

$3.12

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

BOLT, FLANGE (8X16)

95701-08016-07

$1.80

BOLT, FLANGE (8X80)

95701-08080-00

$1.64

BOLT, FLANGE (10X25)

95701-10025-07

$1.49
