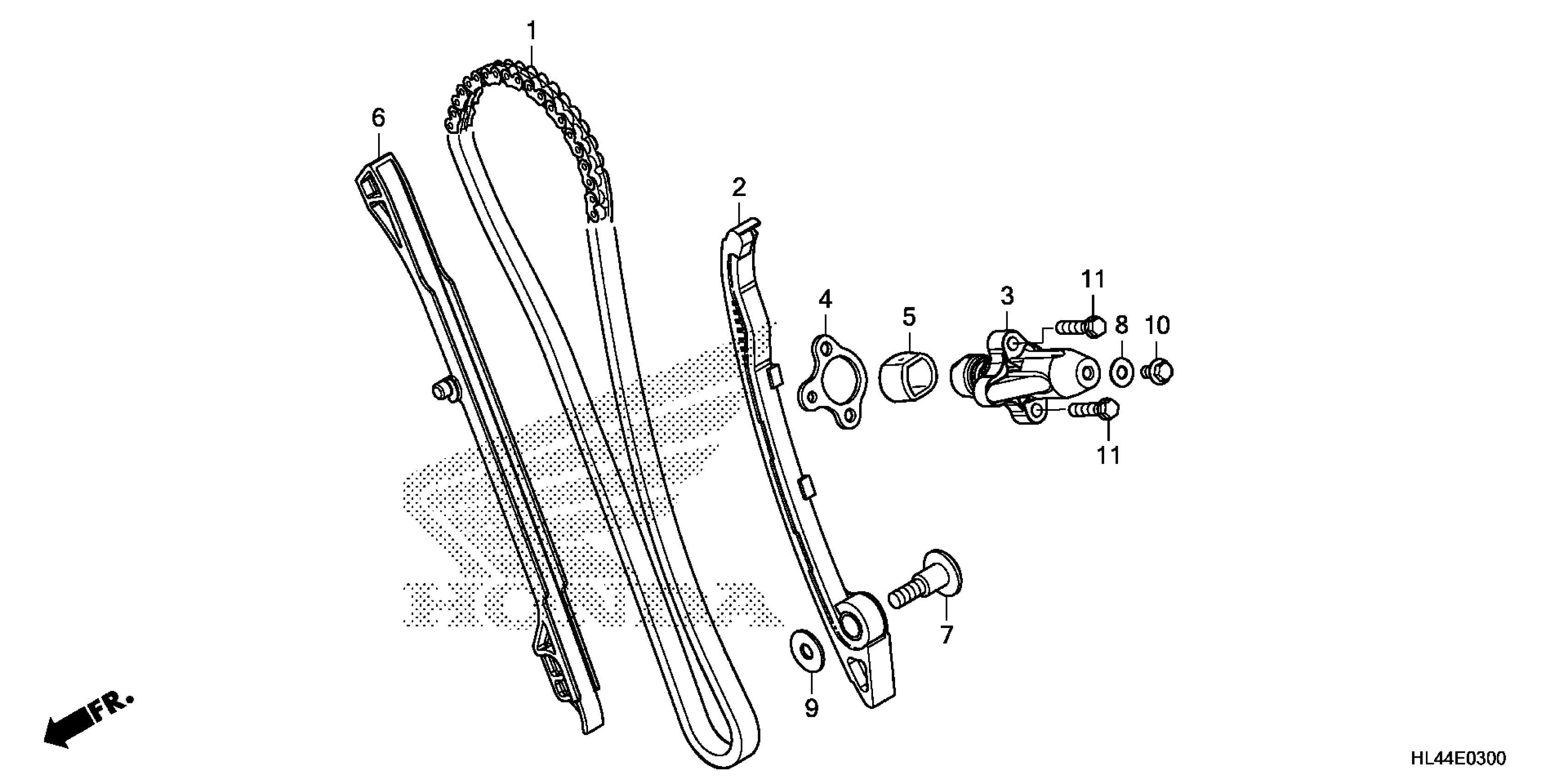

Honda SXS1000M3P2A (16) PIONEER 1000 EPS, USA, VIN# 1HFVE04E-G4000001 CAM CHAIN@TENSIONER Diagram

#

Description

Price

1

CHAIN, CAM (128L) (BORG WARNER)

14401-HL4-003

$71.04

2

TENSIONER, CAM CHAIN

14510-HL4-000

$115.33

3

LIFTER ASSY., TENSIONER

14520-HL4-003

$108.85

4

GASKET, TENSIONER HOLE

14523-HL4-003

$3.37

5

CAP, LIFTER PAT

14524-MBB-000

$7.72

6

GUIDE A, CAM CHAIN

14611-HL4-000

$42.84

7

BOLT, SPECIAL (8MM)

90008-HL4-000

$4.90

8

WASHER, SEALING (6MM)

90442-397-000

$2.28

9

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.49

9

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.49

10

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

11

BOLT, FLANGE (6X25)

96001-06025-00

$2.00
