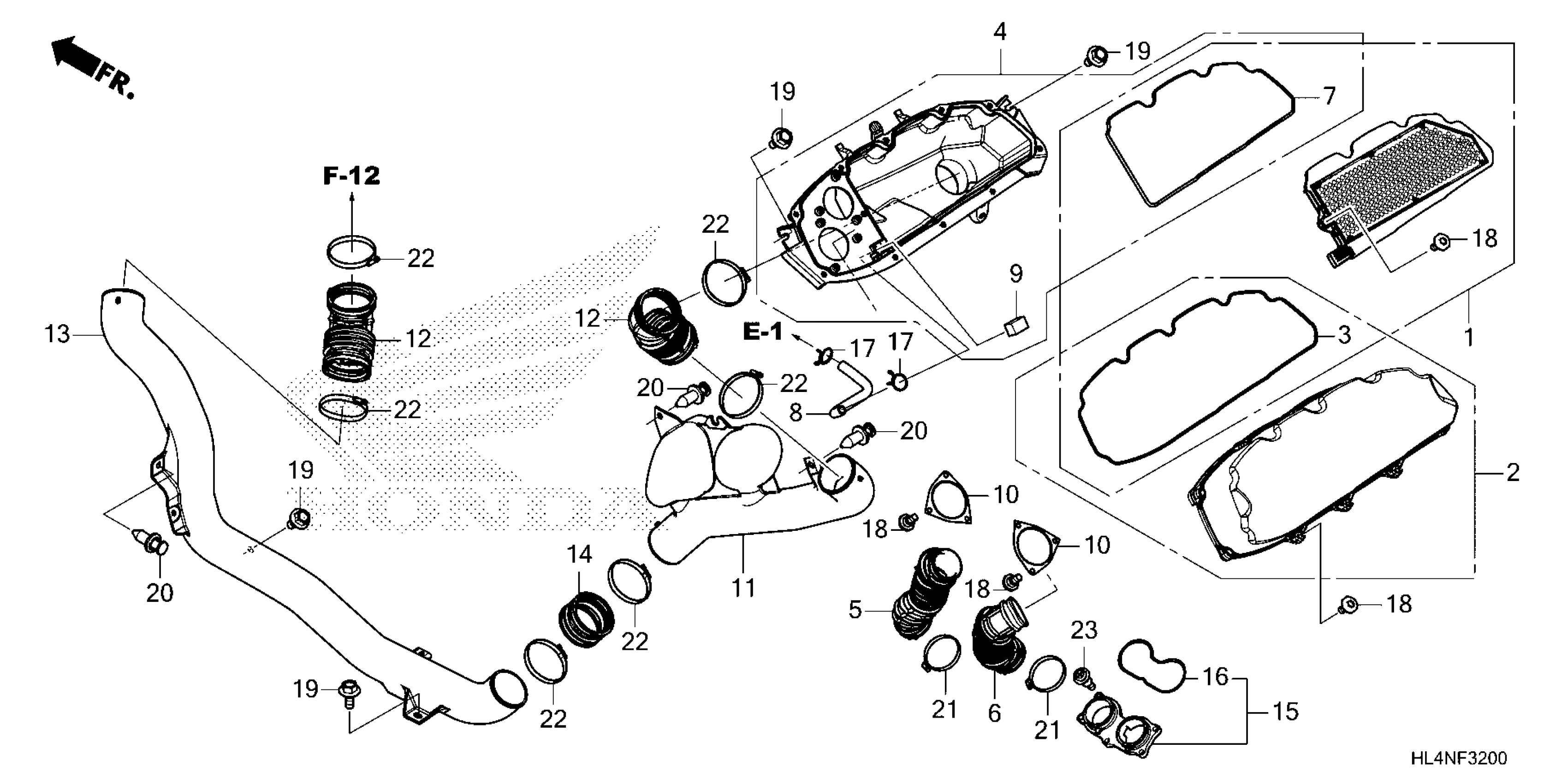

Honda SXS1000M3D9A (23) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04X-P4700001 TO 1HFVE04X-P4749999 AIR CLEANER Diagram

SET, ELEMENT COMP

17215-HL4-AK0

$50.63

COVER SUB-ASSY., AIR CLEANER

17220-HL4-A01

$48.13

SEAL, COVER

17222-HL4-A01

$14.63

CASE SUB-ASSY.

17230-HL4-AK0

$57.61

TUBE A, AIR CLEANER CONNECTING

17232-HL4-A00

$27.50

TUBE B, AIR CLEANER

17233-HL4-A00

$49.11

SEAL, CASE

17234-HL4-A01

$21.57

TUBE, BREATHER

17235-HL4-A00

$8.15

FILTER, BREATHER ROOM

17237-HL4-A00

$0.61

PLATE, RING

17238-HL4-A00

$3.36

DUCT COMP A, SNORKEL

17240-HL4-AN0

$39.69

TUBE A, SNORKEL

17242-HL4-A00

$14.04

DUCT B, SNORKEL

17243-HL4-F02

$55.74

TUBE B, SNORKEL

17244-HL4-F00

$2.75

SET PLATE ASSY.

17250-HL4-AK0

Unavailable

SEAL, SETTING PLATE

17252-HL4-305

$3.42

CLIP, OIL DRAIN TUBE

17316-611-000

$9.23

SCREW, SPL (5X12)

90102-HL4-AK0

$4.81

BOLT, FLANGE (6MM)

90111-162-000

$2.89

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

BAND, AIR CLEANER CONNECTING TUBE (62)

90662-HN5-M00

$1.51

BAND, AIR CLEANER ELEMENT

90680-HP5-600

$10.90

SCREW, PAN (5MM)

91508-MM5-000

$4.08
