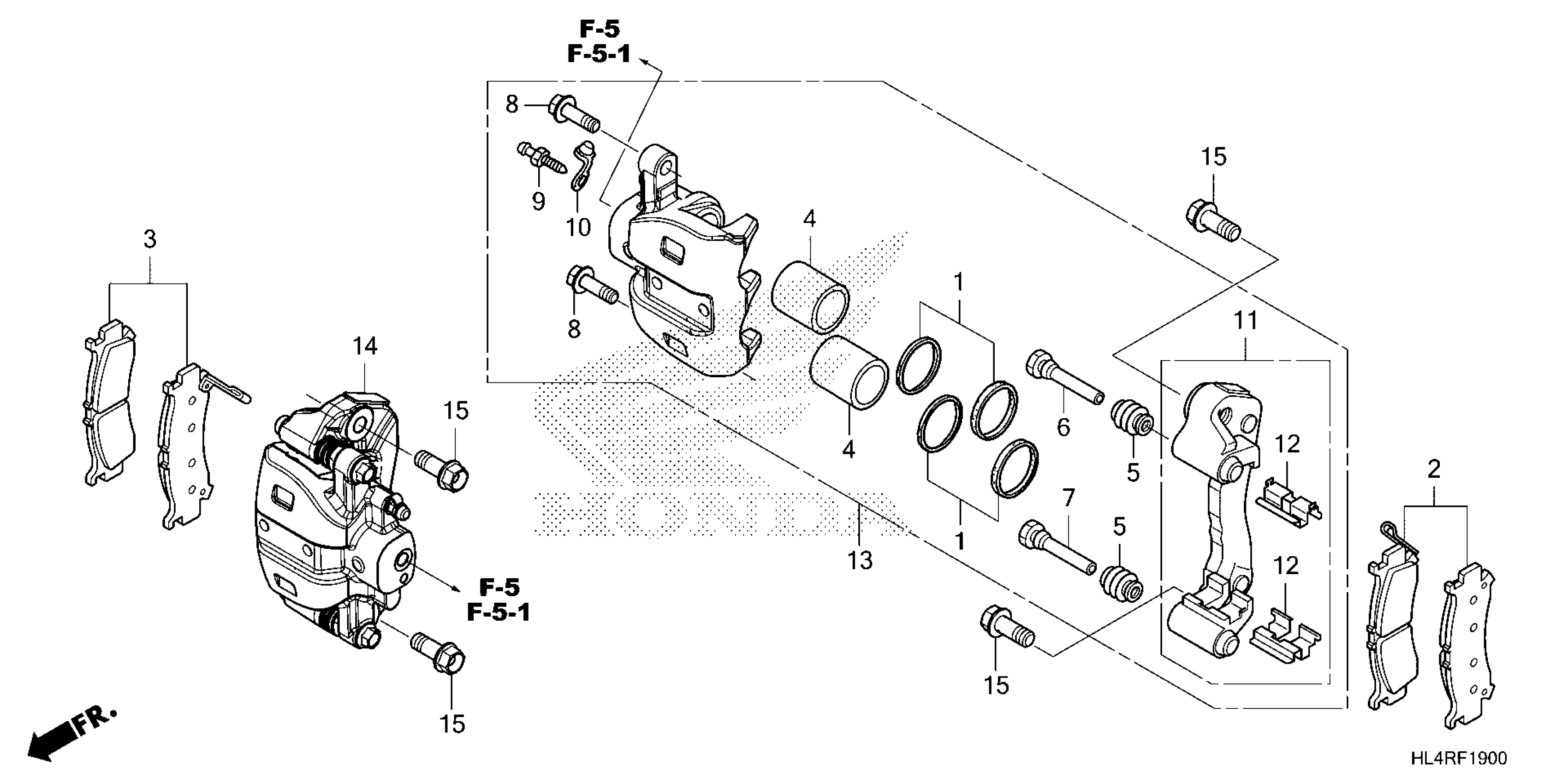

Honda SXS1000M3D6AC (24) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04F-R4800001 TO 1HFVE04F-R4899999 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

SEAL SET, PISTON

06451-961-405

$6.56

2

PAD SET, L. FR.

06451-HL4-A01

$39.95

3

PAD SET, R. FR.

06452-HL4-A01

$39.95

4

PISTON

43107-KFG-J21

$20.69

5

COVER, DUST

43234-S04-003

$5.62

6

PIN B

43235-HL4-A01

$4.61

7

PIN A

43235-HP0-A01

$5.71

8

BOLT, FLANGE (8X26)

43240-S6M-J51

$4.84

9

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

10

CAP, BLEEDER

43353-461-771

$5.05

11

BRACKET, FR.

45110-HL4-A01

$37.50

12

RETAINER, FR. BRACKET

45112-HP0-A01

$6.31

13

CALIPER SUB-ASSY., L. FR. (MSDS)

45150-HL4-A01

$99.27

14

CALIPER SUB-ASSY., R. FR.

45250-HL4-A01

$99.27

15

BOLT, FLANGE (12X28)

90108-HL4-A00

$4.65
