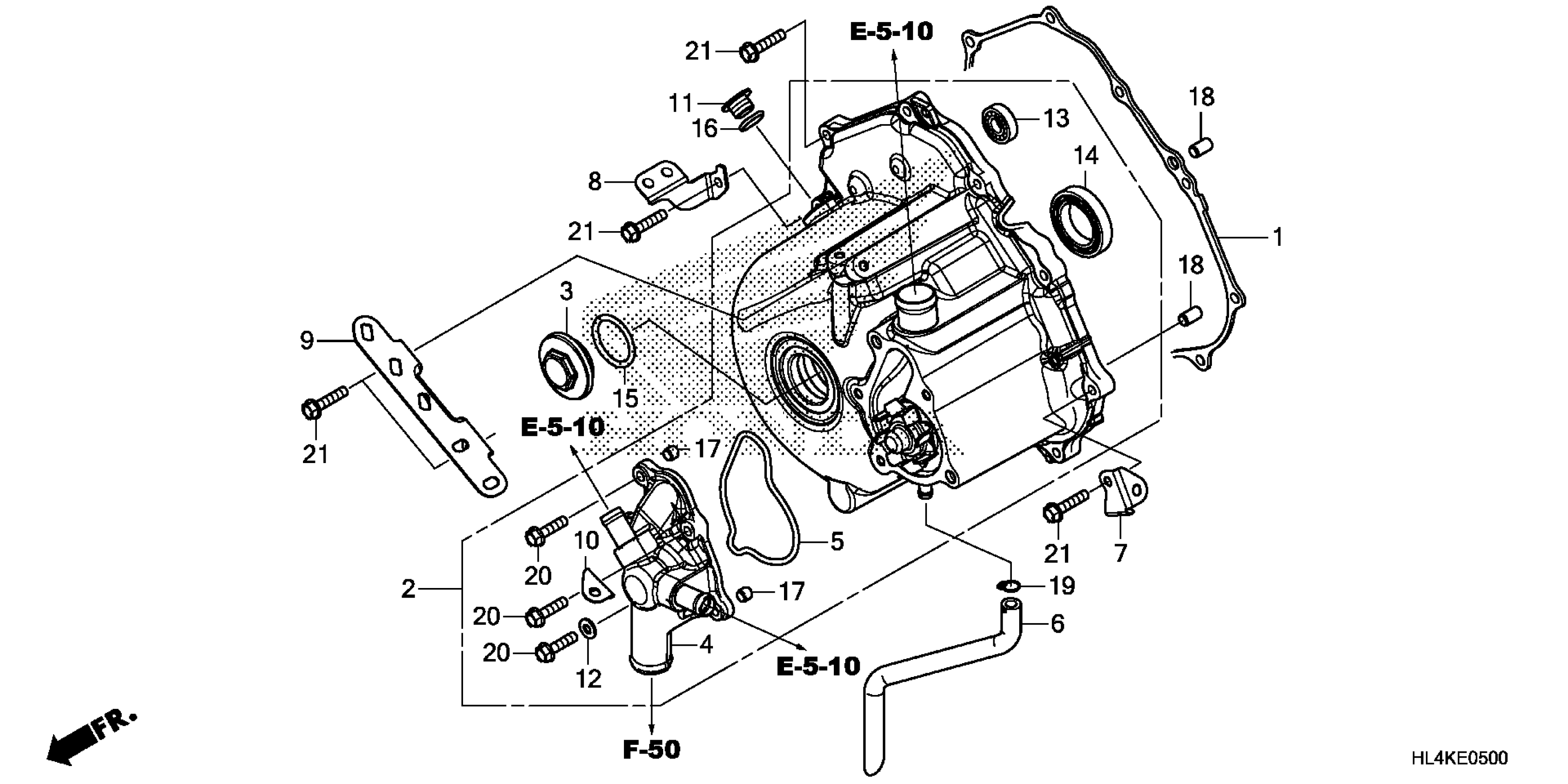

Honda SXS1000M3AC (19) ALL-TERRAIN VEHICLE (ATV), USA, VIN# 1HFVE04L-K4300001 ALTERNATOR COVER Diagram

GASKET, ALTERNATOR COVER

11396-HL4-003

$10.40

COVER ASSY., ALTERNATOR | Use up to Engine SN 8252100. This part replaces 11400-HL4-010.

11400-HL4-020

$355.79

COVER ASSY., ALTERNATOR

11400-HL4-020

$355.79

CAP, TAPPET ADJUSTING HOLE

12361-HP5-600

$18.50

COVER, WATER PUMP

19220-HL4-000

$104.59

GASKET, WATER PUMP COVER

19226-HL4-000

$9.82

HOSE, DRAIN

19503-HL4-000

$12.05

STAY, WATER HOSE

19510-HL4-000

$3.56

STAY, SENSOR WIRE

32158-HL4-000

$5.34

STAY, ALTERNATOR WIRE

32159-HL4-000

$10.59

STAY, HARNESS CLIP (C)

32163-HL4-000

$3.74

CAP (14MM)

90084-MN8-010

$12.82

WASHER, SEALING (6MM)

90441-706-000

$1.49

BEARING, RADIAL BALL (6000)

91014-HL4-003

$12.48

BEARING, RADIAL BALL (6906)

91015-HL4-003

$19.82

O-RING (35.5X3) (NOK)

91301-428-003

$2.21

O-RING (13.8X2.5)

91303-377-000

$3.42

PIN, DOWEL (8X7)

91320-KE1-000

$2.23

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

CLIP, TUBE (B12)

95002-02120

$2.00

BOLT, FLANGE (6X25)

95701-06025-00

$1.80

BOLT, FLANGE (6X28)

95701-06028-00

$1.73
