Description

Price

1

COVER, HARNESS GUIDE

18328-HL4-F00

$20.42

2

FRAME ASSY. This part replaces 50000-HL4-F00.

50000-HL4-G00

$2,373.65

3

RUBBER, SEAT

50226-MY5-610

$4.04

4

BRACKET, R. ENGINE HANGER

50311-HL4-A00

$33.49

5

HANGER, R. ENGINE

50315-HL4-A00

$58.94

6

HANGER COMP L, ENG This part replaces 50325-HL4-A00.

50325-HL4-AK0

$52.03

7

BRACKET, FR. FINAL

50350-HL4-F00

$4.76

8

BRACKET, FR. FINAL (LOWER)

50360-HL4-A00

$8.46

9

PIPE, R. STEP

50370-HL4-A00

$385.25

10

PIPE, L. STEP

50380-HL4-F00

$509.13

11

STAY, R. RR. FOOT WELL

50501-HL4-A50

$35.93

12

RUBBER, BED STOPPER

50524-HL4-ME0

$3.96

12

RUBBER, STAND STOPPER

50524-KBW-900

$4.48

13

STAY, L. RR. FOOT WELL

50551-HL4-A50

$43.23

14

RUBBER ASSY., MOUNTING

50810-HL4-A01

$23.35

15

BOLT, FLANGE (12X28)

90116-HL4-A00

$0.59

16

CLAMP, HARNESS

90652-HC4-003

$5.54

17

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

18

CAP, PIPE END (1-3/4")

90861-HL1-A00

$3.19

19

SEAL, BRAKE PEDAL MOUNTING

90883-HL4-A00

$0.32

20

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$0.86

21

NUT, FLANGE (10MM)

94050-10000

$1.41

22

BOLT, FLANGE (8X40)

95701-08040-00

$1.14

23

BOLT, FLANGE (8X80)

95701-08080-00

$1.57

24

BOLT, FLANGE (10X18) (SOURCE: VINTAGE PARTS INC.)

95701-10018-00

$3.54

25

BOLT, FLANGE (10X20) BOLT, FLANGE (10X16)

95701-10020-00

Unavailable

26

BOLT, FLANGE (10X28)

95701-10028-00

$1.38

27

BOLT, FLANGE (10X70)

95801-10070-00

$1.64

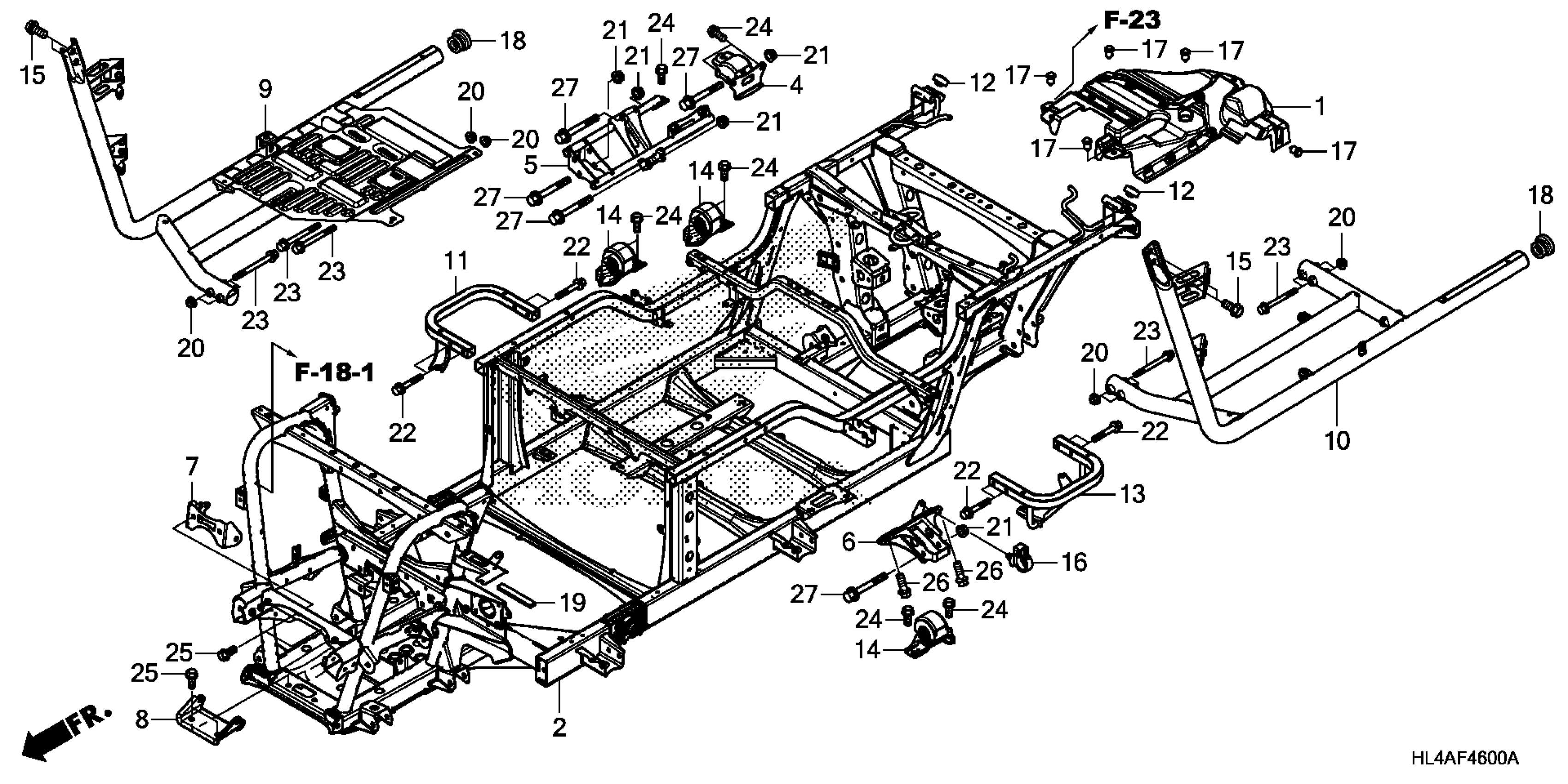

Honda SXS1000M3AC (17) PIONEER 1000, USA, VIN# 1HFVE04L-H4100001 FRAME Diagram
