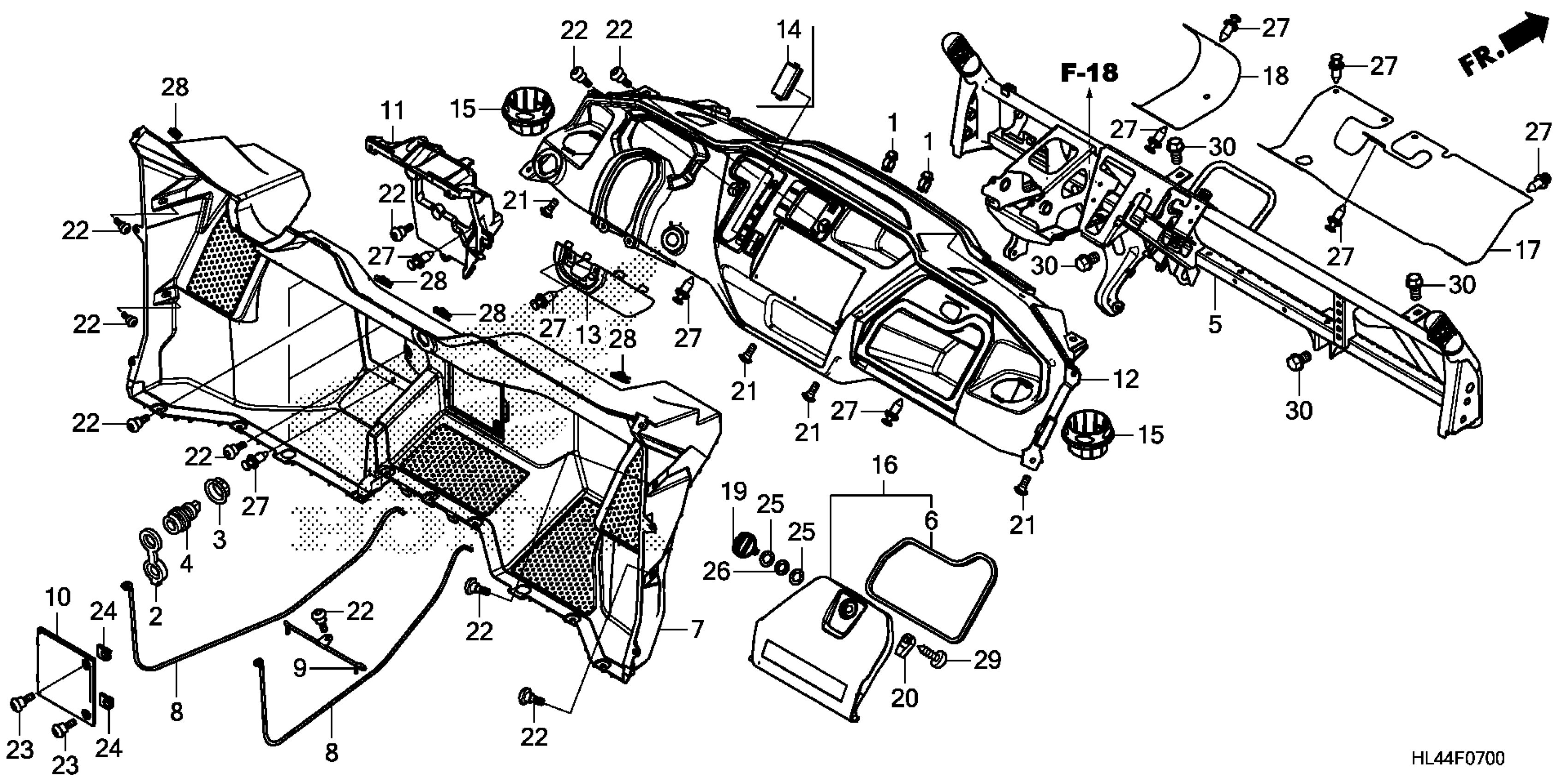

Honda SXS1000M3AC (16) PIONEER 1000, USA, VIN# 1HFVE04L-G4000001 INSTRUMENT PANEL Diagram

CLAMP A, FUEL HOSE

16725-PNA-003

$1.49

CAP

31652-HP0-A01

$2.24

NUT

31653-HP0-A01

$1.49

SOCKET, ACCESSORY

31655-HP0-A01

$24.16

FRAME, INSTRUMENT PANEL

53210-HL4-A50

$600.18

SEAL, GLOVE BOX

61122-HL4-A00

$4.33

COVER, FR. FLOOR This part replaces 64100-HL4-A00ZA.

64100-HL4-AJ0

$149.03

COVER, FR. FLOOR This part replaces 64100-HL4-A01ZA.

64100-HL4-AJ0

$149.03

STAY A, FR. FLOOR

64101-HL4-A00

$6.26

STAY B, FR. FLOOR

64102-HL4-A00

$5.18

LID, FR. FLOOR *NH1* (BLACK)

64105-HL4-A00ZA

$6.80

COVER, PEDAL *NH1* (BLACK)

64110-HL4-A00ZA

$7.33

PANEL, INSTRUMENT *NH1* (BLACK) This part replaces 68101-HL4-A51ZA.

68101-HL4-A52ZA

$239.03

PANEL, INSTRUMENT *NH1* (BLACK)

68101-HL4-A52ZA

$239.03

COVER, STEERING *NH1* (BLACK)

68103-HL4-A00ZA

$6.51

CAP, INSTRUMENT PANEL *NH1* (BLACK)

68104-HL4-A50ZA

$5.03

HOLDER, DRINK

68106-HL1-A00

$5.45

LID ASSY., GLOVE BOX *NH1* (BLACK)

68200-HL4-A00ZA

$10.93

RUBBER, FR. SPLASH GUARD

68310-HL4-A00

$7.93

RUBBER, SHIFT GATE

68311-HL4-A00

$2.66

KNOB, GLOVE BOX *NH1* (BLACK)

81332-HL4-A00ZA

$5.34

LEVER, LOCK (Honda Code 8955502)

81333-HW5-900

$3.63

SCREW, PAN (5X13)

90102-KWT-900

$5.30

SCREW, PAN (6X14)

90106-KBV-000

$3.90

SCREW, PAN (6X16)

90117-MGS-D30

$3.77

NUT, AIR SPOILER CLIP

90305-SH3-000

$6.48

NUT, AIR SPOILER CLIP This part replaces 90323-SE0-000.

90305-SH3-000

$6.48

NUT, AIR SPOILER CLIP This part replaces 90323-SE1-000.

90305-SH3-000

$6.48

WASHER (14MM) (Honda Code 1986298)

90505-ZV1-000

$2.66

WASHER, WAVE (14MM) (Honda Code 1986306)

90506-ZV1-000

$2.53

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$1.49

NUT, CLIP (5MM)

90677-KAN-961

$4.07

SCREW, TAPPING (5X20) (Honda Code 3344546)

93903-254J0

$1.49

BOLT, FLANGE (10X16)

95701-10016-00

$1.49
