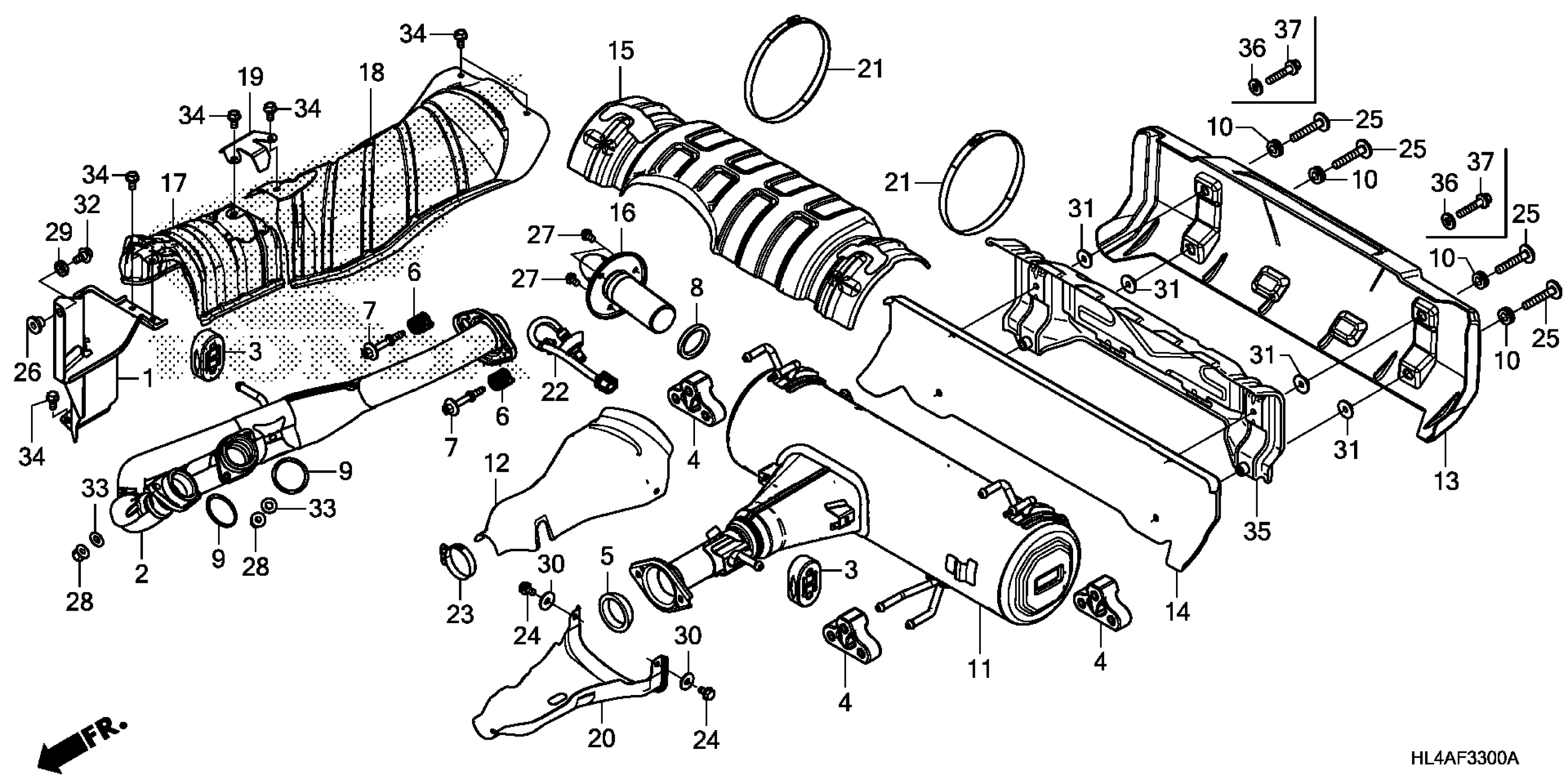

Honda SXS1000M3A (17) PIONEER 1000, USA, VIN# 1HFVE048-H4100001 MUFFLER Diagram

PROTECTOR, TANK HEAT GUARD

17515-HL4-A00

$17.29

PIPE ASSY., EX.

18200-HL4-A00

$276.98

RUBBER, EX. MOUNTING

18215-S84-A20

$12.10

RUBBER, EX. MOUNTING

18215-TL2-A01

$16.83

GASKET, EX. FLEXIBLE

18229-SNE-A01

$14.04

SPRING, FLEXIBLE JOINT

18230-HL4-A00

$5.86

BOLT B, FLEXIBLE JOINT

18231-SNA-A00

$10.47

GASKET, EX. PIPE

18291-KAE-870

$4.17

GASKET, EX. PIPE

18291-MM8-880

$6.82

RUBBER, PROTECTOR MOUNTING

18293-HL4-A00

$2.85

MUFFLER

18310-HL4-F00

Unavailable

COVER, FR. MUFFLER

18311-HL4-A00

$36.47

PROTECTOR, MUFFLER

18312-HL4-A02

Unavailable

PROTECTOR, MUFFLER

18312-HL4-A03

$16.81

COVER, MUFFLER (INNER)

18313-HL4-A00

$40.22

COVER, RR. MUFFLER

18315-HL4-A00

$45.19

ARRESTER, SPARK

18317-HL4-F00

Unavailable

PROTECTOR A, HEAT

18326-HL4-A00

$43.59

PROTECTOR B, HEAT

18327-HL4-A00

$52.29

PROTECTOR, HEAT (D)

18329-HL4-A00

$9.74

COVER, FR. MUFFLER (LOWER)

18331-HL4-F00

$33.79

BAND, MUFFLER COVER (114-165MM)

19084-HL4-A00

$3.33

SENSOR, OXYGEN

36531-HL4-A01

$62.32

BAND, SUB-TANK

50252-MW0-000

$21.26

BOLT, FLANGE (6X10)

90011-HN0-A00

$1.18

BOLT, SPECIAL (6X19)

90111-HL4-A01

Unavailable

BOLT, SPECIAL (6X35)

90111-HL4-A02

$3.25

COLLAR, REFLECTOR SETTING

90129-463-770

$3.00

BOLT, FLANGE (6X10) (SUS) (Honda Code 8955874)

90200-HW5-900

$2.19

NUT, FLANGE (8MM)

90301-HM8-000

$2.50

RUBBER, HEAT GUARD

90502-HL4-A00

$1.12

WASHER, PLAIN (6MM) (Honda Code 7039829)

90504-HW1-670

$1.72

COLLAR, FR. FENDER

90505-MBK-750

$2.80

BOLT-WASHER (6X16)

93404-06016-08

$1.50

WASHER, PLAIN (8MM)

94101-08800

$1.74

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

PROTECTOR, MUFFLER (INNER)

18316-HL4-MA0

$90.07

WASHER, PLAIN (6MM)

94103-06700

$0.66

BOLT, FLANGE (6X35)

95701-06035-07

$1.74
