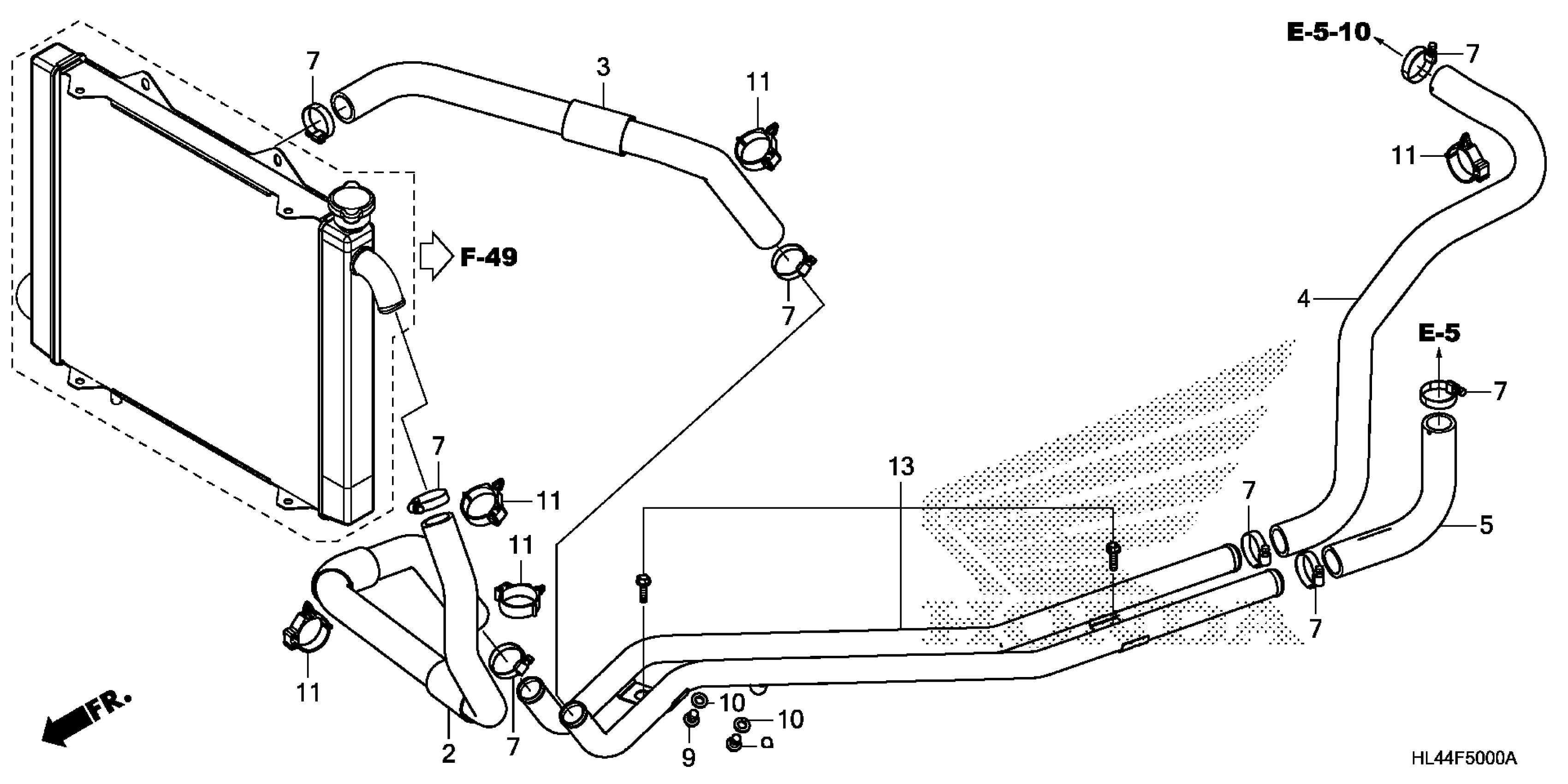

Honda SXS1000M3A (16) PIONEER 1000, USA, VIN# 1HFVE048-G4000001 WATER PIPE@WATER HOSE Diagram

RUBBER, RADIATOR MOUNTING

19051-KA4-000

$3.63

HOSE, R. FR. WATER

19505-HL4-A00

$20.40

HOSE, L. FR. WATER

19506-HL4-A00

$14.50

HOSE, R. RR. WATER

19507-HL4-A00

$14.66

HOSE, L. RR. WATER

19508-HL4-A00

$3.99

PIPE, WATER

19509-HL4-A00

$65.72

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.22

COLLAR, FR. FENDER SETTING

61101-MN4-000

$5.19

BOLT, SEALING (8MM)

90024-612-000

$4.54

WASHER (8MM)

90471-580-000

$2.80

CLIP, WIRE HARNESS (BLACK)

91556-SK7-003

$5.19

BOLT, FLANGE (6X22)

95701-06022-08

$1.66

KIT, WATER PIPE

06190-HL4-305

$114.57
