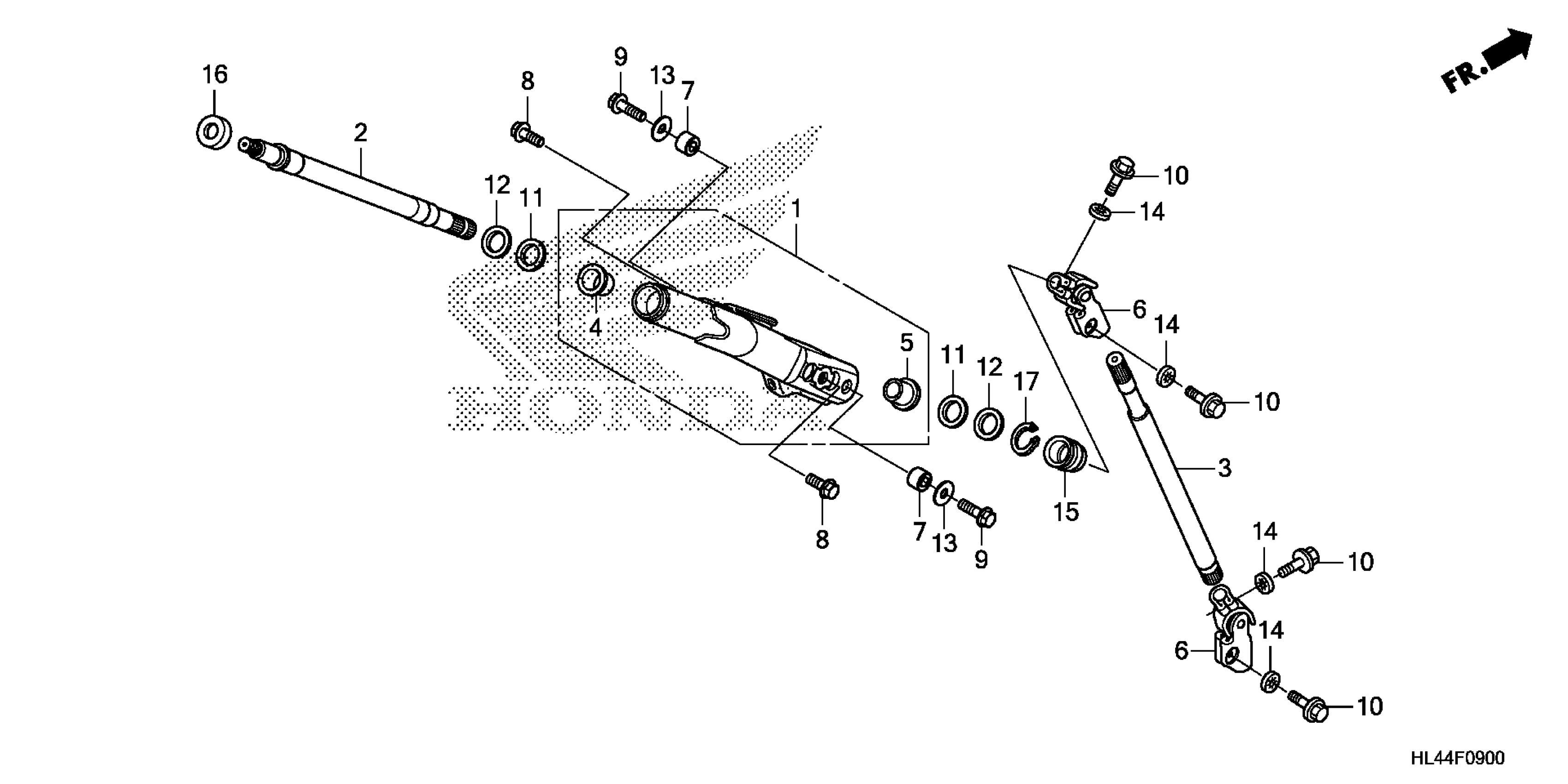

Honda SXS1000M3A (16) PIONEER 1000, USA, VIN# 1HFVE048-G4000001 STEERING SHAFT Diagram

COLUMN SUB-ASSY., STEERING

53255-HL4-A50

$136.32

SHAFT, STEERING (UPPER)

53314-HL4-A00

$44.07

SHAFT, STEERING (LOWER)

53315-HL4-A50

$38.16

BUSH, STEERING SHAFT (UPPER)

53316-HL3-A00

$5.87

BUSH, STEERING SHAFT (LOWER)

53317-HL3-A00

$6.09

JOINT B, STEERING

53323-SW5-003

$217.09

COLLAR, STEERING PIVOT

53711-HL4-A00

$3.82

BOLT, FLANGE (8X16)

90101-MFY-A00

$2.99

BOLT, FLANGE (8X27)

90133-HL4-A00

$2.62

BOLT, STEERING YOKE (8X28) (NIPPON SEIKO)

90135-SB0-003

$0.44

WASHER, THRUST (20X1.00)

90454-428-000

$2.46

WASHER, WAVE (20MM)

90501-HL4-A00

$2.66

WASHER A, HANDLE HOLDER SETTING This part replaces 90505-425-000.

90524-030-000

$1.28

WASHER A, HANDLE HOLDER SETTING

90524-030-000

$1.28

WASHER, TOOTHED LOCK

90511-671-003

$0.10

SEAL, STEERING SHAFT (LOWER)

91257-HL3-A01

$4.60

SEAL, STEERING SHAFT (UPPER)

91262-HL3-A01

$5.37

CIRCLIP (OUTER) (20MM)

94510-20000

$1.22
