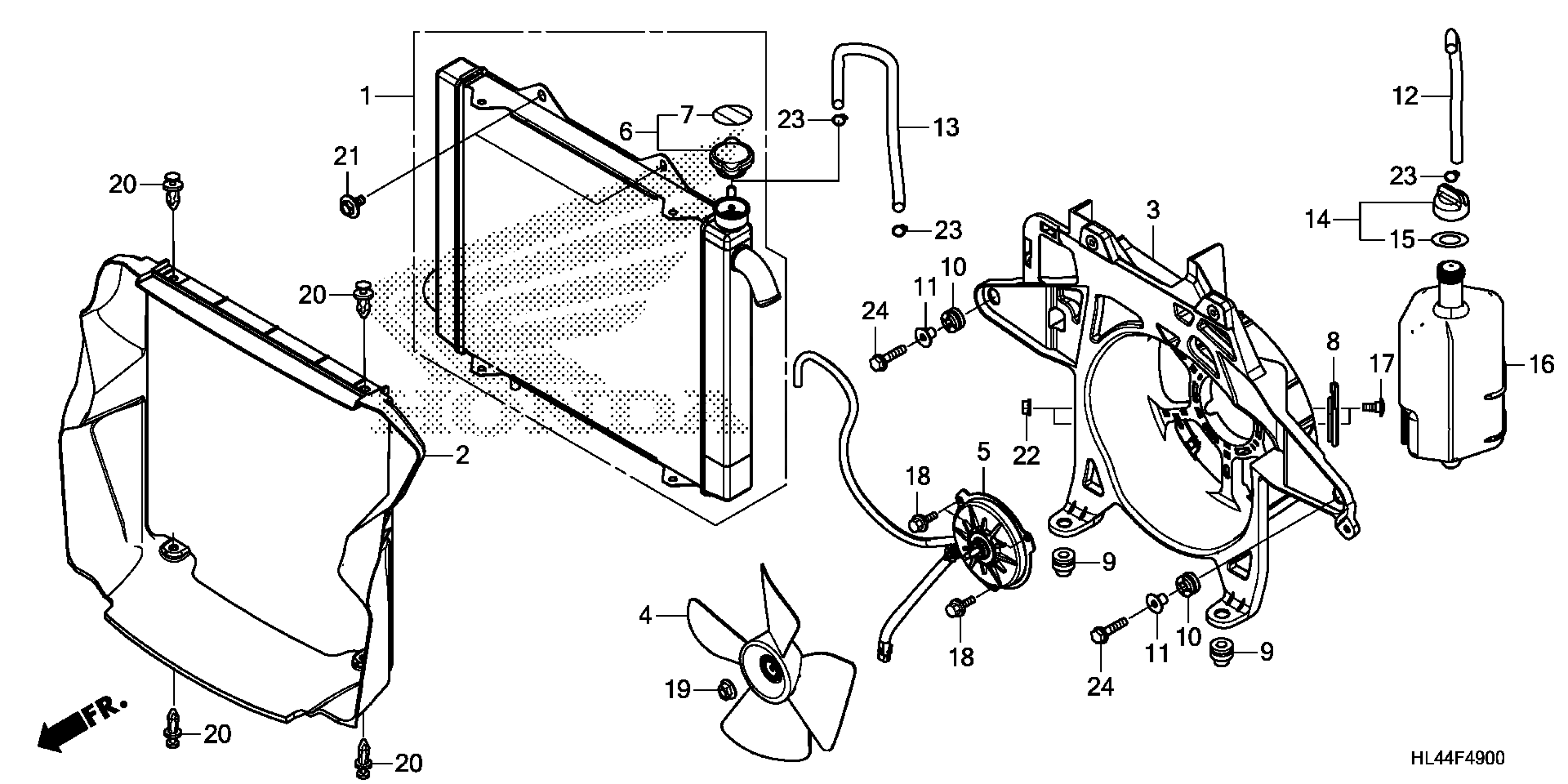

Honda SXS1000M3A (16) PIONEER 1000, USA, VIN# 1HFVE048-G4000001 RADIATOR Diagram

#

Description
Price

1

RADIATOR This part replaces 19010-HL4-A01.

19010-HL4-F01

$126.01

1

RADIATOR

19010-HL4-F01

$126.01

2

SHROUD, RADIATOR

19014-HL4-A00

$8.44

3

STAY, FAN MOTOR

19015-HL4-A01

$66.06

4

FAN, COOLING This part replaces 19020-HN7-000.

19020-HL3-A01

$17.75

5

MOTOR ASSY., FAN

19030-HL4-A01

$89.58

6

CAP, RADIATOR

19037-GEE-710

$27.80

7

LABEL, RADIATOR CAP

19046-PAA-A00

$3.25

8

STAY, RESERVE TANK

19050-HL4-A00

$19.35

9

RUBBER, RADIATOR MOUNTING

19051-HL4-A00

$2.43

10

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.16

11

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.29

12

TUBE A, RESERVE TANK

19103-HL4-A00

$2.16

13

TUBE B, RESERVE TANK

19104-HL4-A00

$3.78

14

CAP ASSY., RESERVE TANK

19106-GET-000

$6.59

15

GASKET, RESERVE TANK

19107-GET-000

$3.58

16

TANK, RADIATOR RESERVE

19110-HL4-A00

$13.87

17

SCREW, PAN (6X14)

90106-KBV-000

$3.73

18

BOLT, FLANGE (5X10)

90196-MBB-003

$2.46

19

NUT, SERRATE (5MM)

90315-MK3-003

$2.15

20

CLIP, SPLASH GUARD (Honda Code 3795994)

90653-HC4-900

$0.54

21

BOLT-WASHER (6X14)

93404-06014-00

$0.87

22

NUT, FLANGE (6MM)

94050-06000

$0.60

23

CLIP, TUBE (C11)

95002-70000

$1.51

24

BOLT, FLANGE (6X22)

95701-06022-08

$1.66
