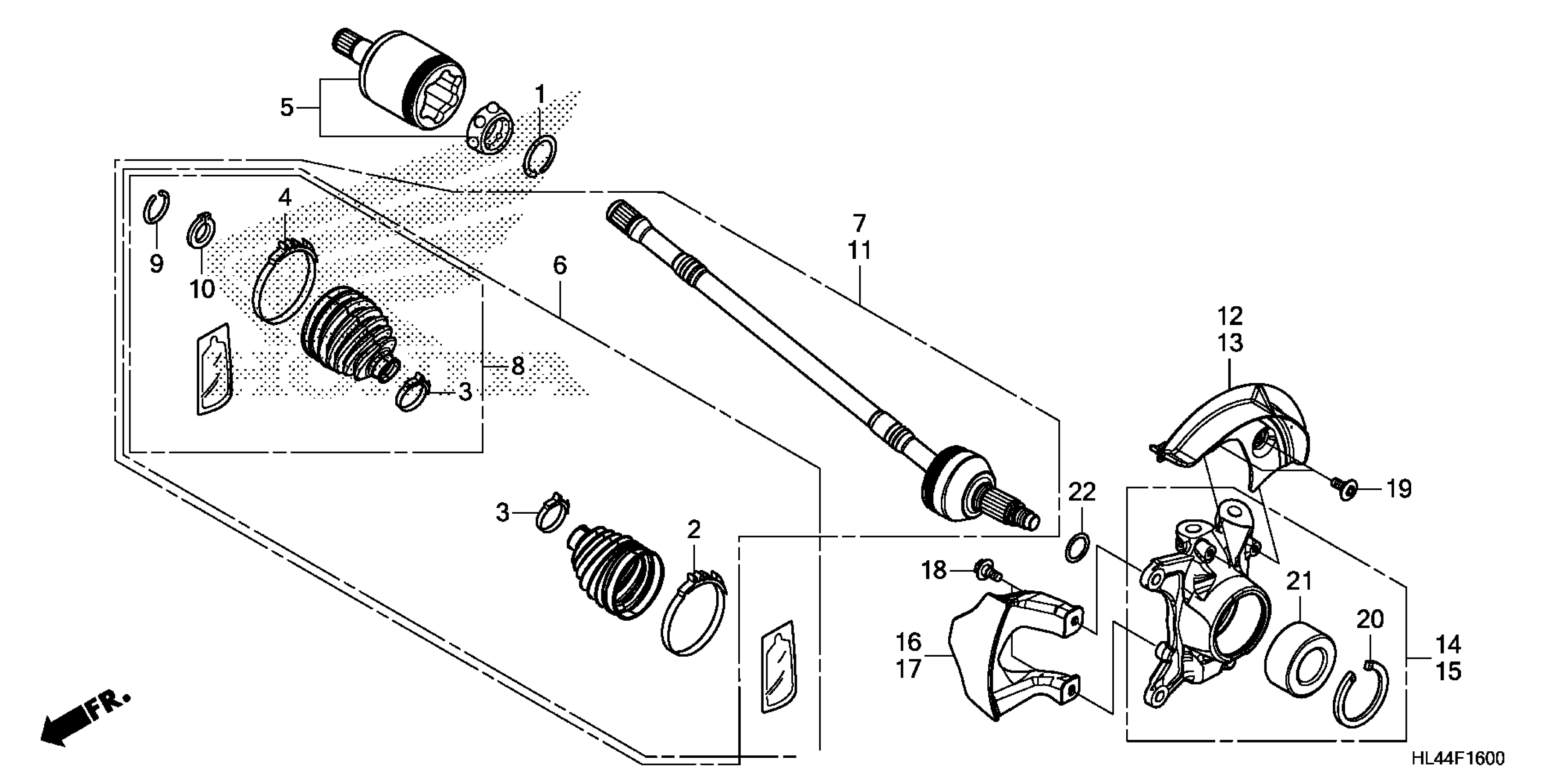

Honda SXS1000M3A (16) PIONEER 1000, USA, VIN# 1HFVE048-G4000001 FRONT KNUCKLE@DRIVESHAFT Diagram

#

Description
Price

1

RING, SNAP

42228-HL4-A01

$2.87

2

BAND A, OUTBOARD

42231-HL4-A01

$4.14

3

BAND, SHAFT BOOT

42232-HL4-A01

$4.21

4

BAND A, INBOARD

42233-HL4-A01

$4.24

5

JOINT, FR. INBOARD

44220-HL4-A01

$170.30

6

BOOT SET, FR.

44240-HL4-A01

$76.95

7

SHAFT SET, R. FR. DRIVE

44250-HL4-A01

$271.61

8

BOOT SET, FR. INBOARD

44260-HL4-A01

$71.21

9

SET-RING (26X1.8) (GKN)

44319-SR1-003

$2.92

9

SET-RING (26X1.8) (GKN) This part replaces 44319-S01-A01.

44319-SR1-003

$2.92

10

CIRCLIP

44338-S0X-A01

$6.13

11

SHAFT SET, L. FR. DRIVE

44350-HL4-A01

$271.41

12

SPLASH GUARD, R. FR.

45255-HL4-A00

$7.14

13

SPLASH GUARD, L. FR.

45256-HL4-A00

$7.14

14

KNUCKLE ASSY., R. FR.

51200-HL4-A00

$469.77

15

KNUCKLE ASSY., L. FR.

51250-HL4-A00

$469.77

16

GUARD, R. FR. OUTBOARD

51325-HL4-A00

$2.62

17

GUARD, L. FR. OUTBOARD

51326-HL4-A00

$2.62

18

BOLT, FLANGE (6MM)

90111-KT1-780

$14.98

19

BOLT, SOCKET (6X15)

90114-HP0-A00

$2.11

20

CIRCLIP (INNER) (75)

90651-HL3-A40

$10.95

21

BEARING, ANGULAR BALL (40X74X36)

91054-HL3-A41

$30.54

22

O-RING (29.5X3)

91301-401-000

$3.53

22

O-RING (29.5X3) This part replaces 91302-436-003.

91301-401-000

$3.53

22

O-RING (29.5X3) This part replaces 91302-436-004.

91301-401-000

$3.53
