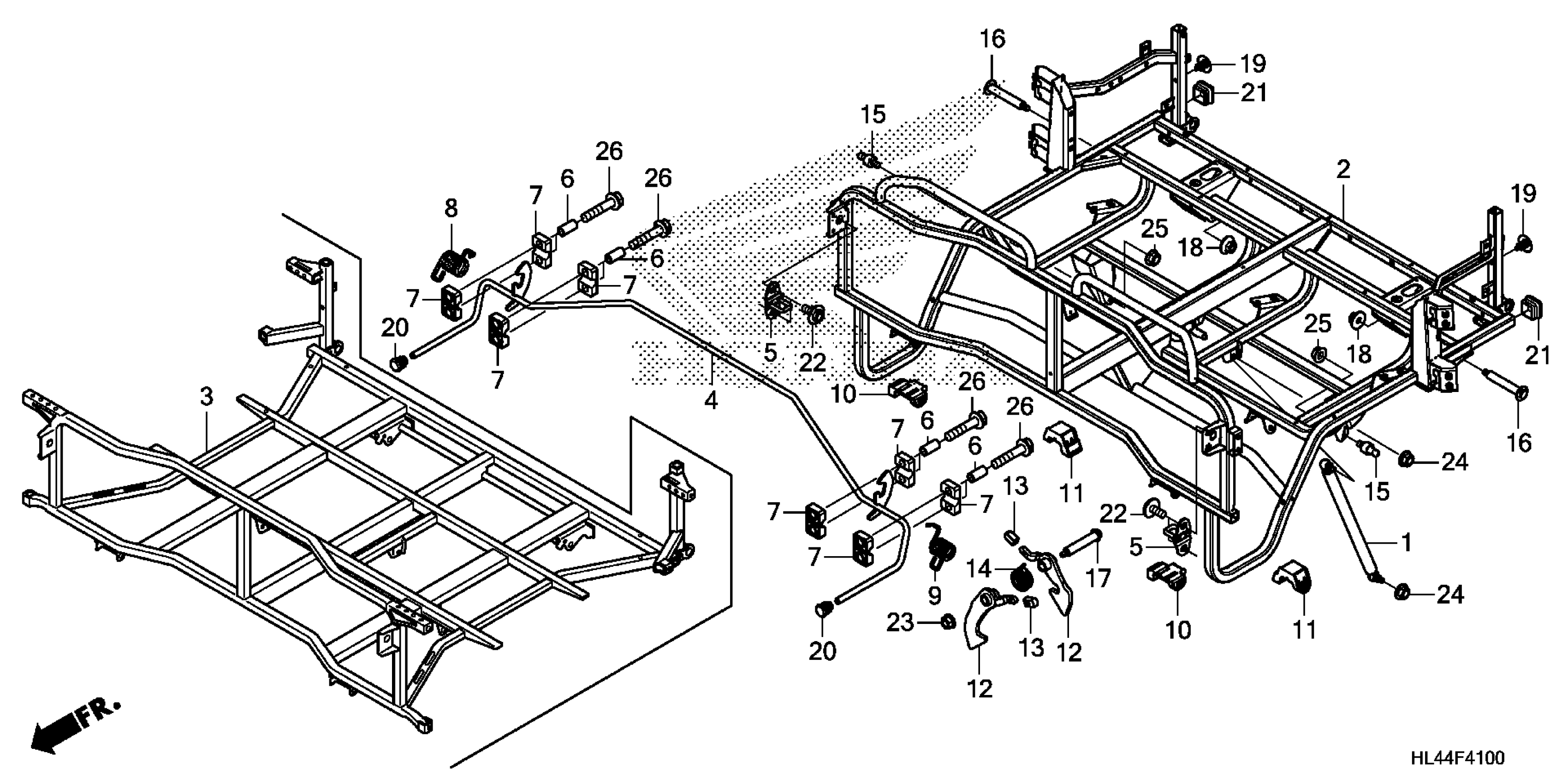

Honda SXS1000M3A (16) PIONEER 1000, USA, VIN# 1HFVE048-G4000001 BED Diagram

Description

Price

DAMPER, RR. BED

74820-HL4-A51

$19.74

BED, RR.

81500-HL4-A50

$1,000.66

LEVER, BED LOCK

81521-HL4-A00

$71.30

STRIKER ASSY.

81522-HL4-A00

$13.72

COLLAR, LEVER BRACKET

81524-HL3-A00

$1.28

HOLDER, LEVER LOCK

81526-HL3-A00

$0.84

SPRING, R. LOCK LEVER

81527-HL3-A00

$1.64

SPRING, L. LOCK LEVER

81528-HL3-A00

$1.64

RUBBER, FRAME SUPPORT (FR)

81533-HL4-A00

$3.34

RUBBER, FRAME SUPPORT (RR)

81534-HL4-A00

$4.13

BOLT, FLANGE (8MM)

90112-HL3-A00

$4.51

NUT, FLANGE (8MM)

90361-SR3-000

$0.80

CLIP, ROOF (7MM) NH1 (BLACK)

90671-S0D-003YW

$1.49

CAP, PIPE END (1/2")

90851-HL4-A00

$0.70

BOLT-WASHER (6X16)

93404-06016-07

$1.55

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000
