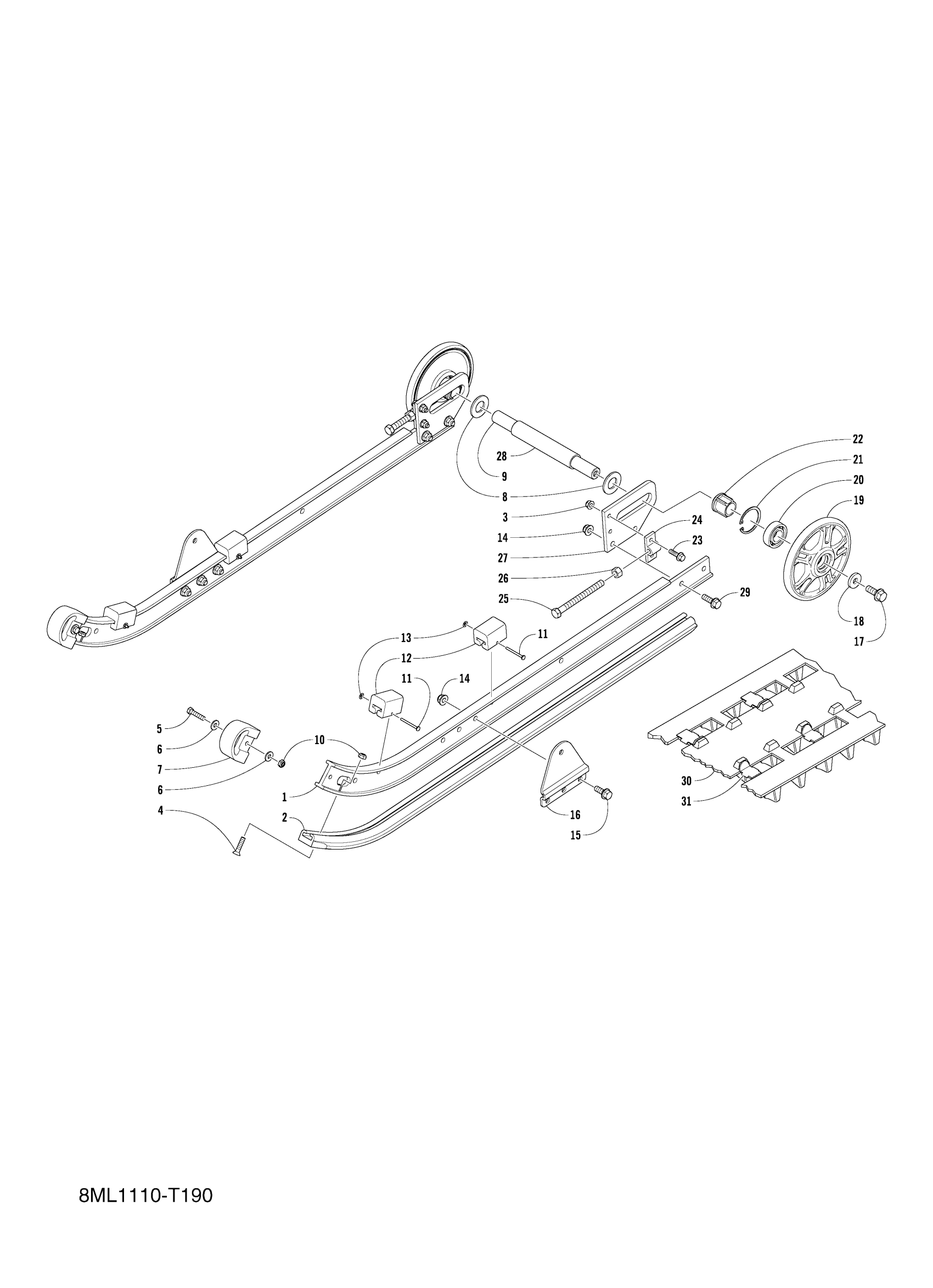

Yamaha SXR2NJW (SNOSCOOT) 8ML10 2018 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8ML-G741A-00-00

Unavailable

2

RUNNER, SLIDING 1

8ML-G7421-00-00

$30.99

3

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

4

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.43

5

BOLT, HEXAGON 1/4-20X1.125

8JM-RA115-00-00

Unavailable

6

WASHER, 1/4X0.625X

8JP-RA441-00-00

$0.33

7

RUNNER, SLIDING 2

8JM-G7422-00-00

Unavailable

8

WASHER, 9

8LN-RA466-00-00

$1.54

9

AXLE, REAR

8JM-G7521-00-00

Unavailable

10

NUT, SELF-LOCKING 1/4-20

8JM-RA311-00-00

Unavailable

11

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.06

12

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$7.49

13

NUT, SPRING 1/8

8JM-RA313-00-00

Unavailable

14

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

15

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

$2.34

16

BRACKET 1

8JM-G7415-00-00

Unavailable

17

BOLT, FLANGE 3/8-16X1

8JM-RA118-00-00

Unavailable

18

WASHER, PLAIN 0.39

8JM-RA409-00-00

Unavailable

19

GUIDE WHEEL ASSY

8JM-G7550-10-00

Unavailable

20

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

Unavailable

21

CIRCLIP, 2

8JM-RAH01-00-00

Unavailable

22

SPACER

8JM-G7341-00-00

Unavailable

23

BOLT, FLANGE 1/4-2

8MV-RA106-00-00

Unavailable

24

PLATE, ADJUSTING

8JM-G8177-00-00

Unavailable

25

HHCS 3/8-16X4.0 THREADED GR5

8JM-RA119-00-00

Unavailable

26

NUT, HEXAGON 3/8-1

8JM-RA314-10-00

Unavailable

27

FRAME, SLIDING C

8JM-G741C-00-00

Unavailable

28

COLLAR, 20

8ML-RA706-00-00

Unavailable

29

BOLT, FLANGE 5/16-

8MV-RA117-00-00

Unavailable

30

TRACK ASSY

8ML-G7110-00-00

Unavailable

31

. METAL, GUIDE

8JM-G7119-00-00

Unavailable
