Description

Price

1

BOLT, FLG. M8X1.25

8JP-RA186-00-00

$0.54

2

WSHR, .343X1 1/8X.120TH Z&Y

8JM-RA401-00-00

$2.22

3

SCREW, M5X0.8X12

8JP-RA241-00-00

$4.88

4

DISK BRAKE ASSY (R

8ML-F581U-00-00

Unavailable

5

HUB, FRONT

8ML-F5111-00-00

Unavailable

6

BOLT, FLG. M6X1.0X

8JP-RA179-00-00

Unavailable

7

HUB ASSY, FRONT

8ML-F5110-00-00

Unavailable

8

BEARING, 6206

8ML-RAG07-00-00

$32.99

9

CIRCLIP, 1

8ML-RAH03-00-00

Unavailable

10

FRONT AXLE SUB-ASS

8ML-G7501-00-00

Unavailable

11

WHEEL, SPROCKET 1

8ML-G7531-00-00

$40.99

12

AXLE, FRONT

8ML-G7511-00-00

$145.99

13

SCREW,M6-16

8KC-RA200-00-00

$2.75

14

CASE, GEAR

8ML-G6365-00-00

$188.99

15

SHAFT, DRIVE

8ML-G8242-00-00

$315.99

16

PULLEY 1

8ML-G6256-00-00

Unavailable

17

BELT

8ML-G6241-00-00

Unavailable

18

PULLEY 2

8ML-G6257-00-00

Unavailable

19

PLUG

8ML-G7339-00-00

Unavailable

20

SCREW

8ML-RA200-00-00

Unavailable

21

WASHER, PLAIN 11/3

8ML-RA401-00-00

Unavailable

22

COVER, HOUSING

8ML-G7721-00-00

Unavailable

23

WASHER, 12X26X1

8ML-RA444-00-00

Unavailable

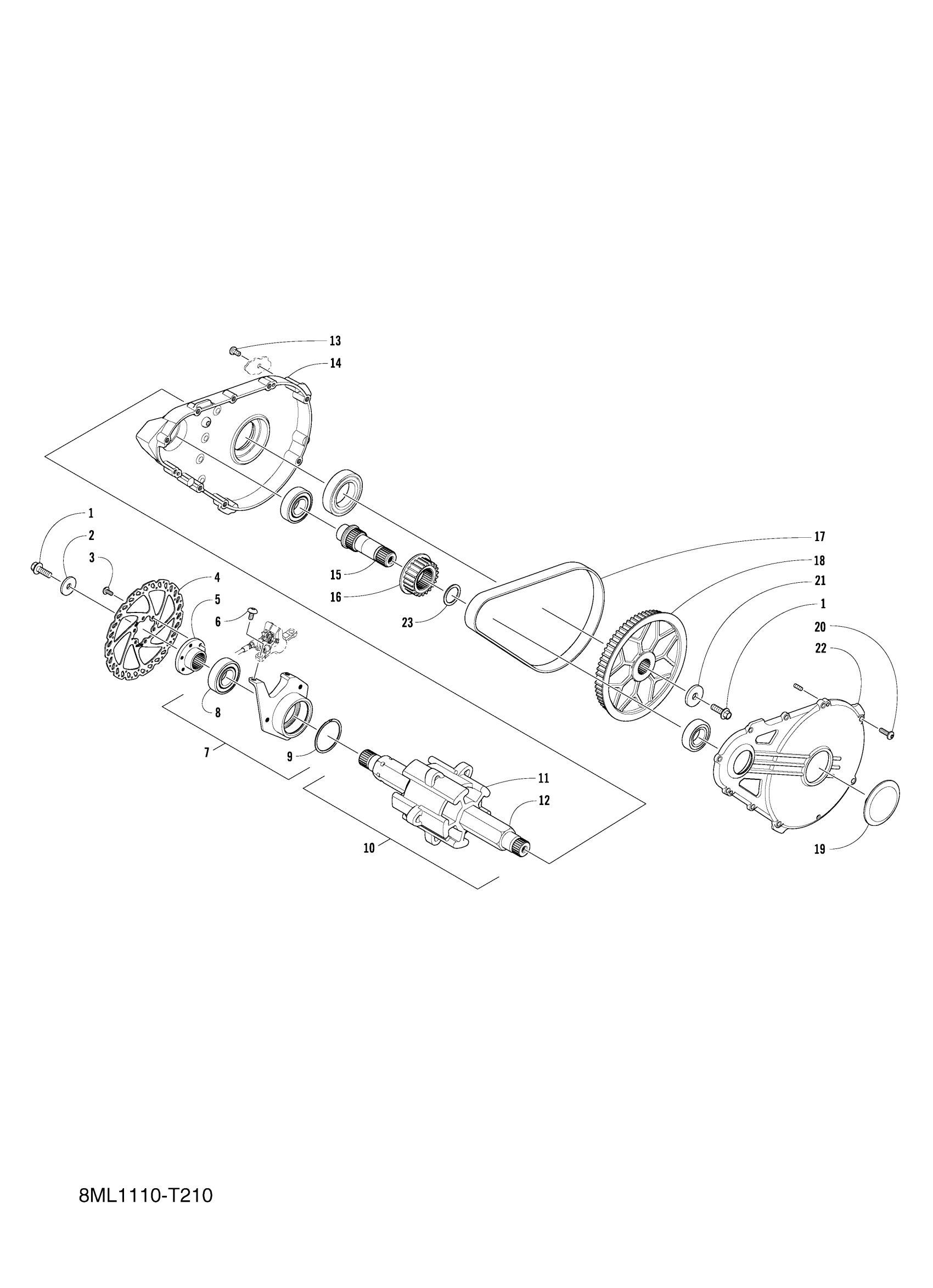

Yamaha SXR2NJW (SNOSCOOT) 8ML10 2018 TRACK DRIVE 1 Diagram

BOLT, FLG. M8X1.25

WSHR, .343X1 1/8X.120TH Z&Y

SCREW, M5X0.8X12

DISK BRAKE ASSY (R

HUB, FRONT

BOLT, FLG. M6X1.0X

HUB ASSY, FRONT

BEARING, 6206

CIRCLIP, 1

FRONT AXLE SUB-ASS

WHEEL, SPROCKET 1

AXLE, FRONT

SCREW,M6-16

CASE, GEAR

SHAFT, DRIVE

PULLEY 1

BELT

PULLEY 2

PLUG

SCREW

WASHER, PLAIN 11/3

COVER, HOUSING

WASHER, 12X26X1
