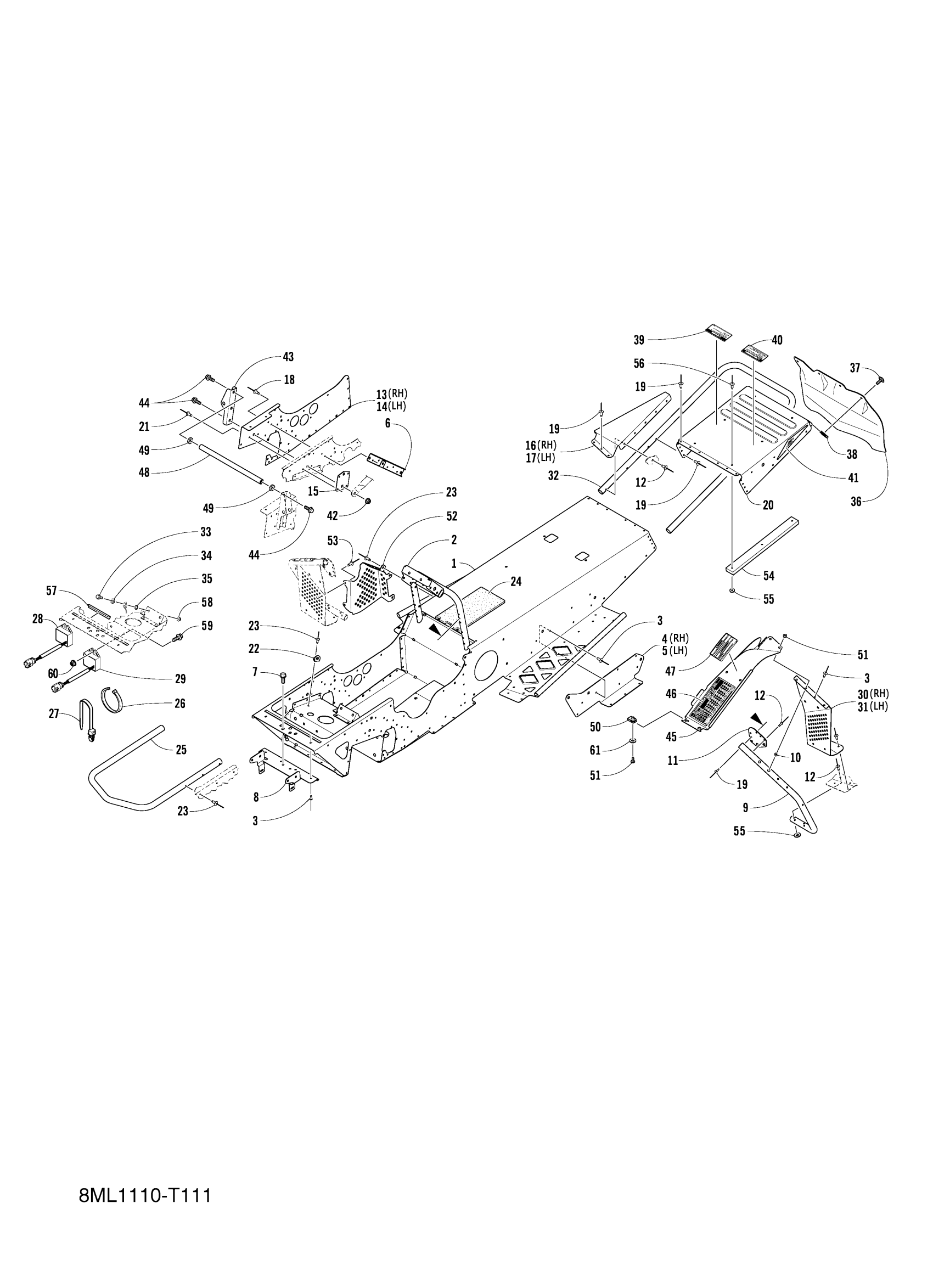

Yamaha SXR2NJW (SNOSCOOT) 8ML10 2018 FRAME Diagram
#
1
FRAME COMP.
8ML-F1910-00-00
Unavailable
2
. BULKHEAD
8ML-F191A-00-00
Unavailable
3
RIVET, 5
8JP-RA514-00-00
Unavailable
4
BRACKET, MAIN TRAC
8ML-F1943-00-00
Unavailable
5
BRACKET, MAIN TRAC
8ML-F1953-00-00
Unavailable
6
REINEFORCEMENT, FR
8ML-F1921-00-00
Unavailable
7
SCREW, TAPPING 1/4-20X0.5
8JM-RA202-00-00
Unavailable
8
FRAME, FRONT END
8ML-F191D-00-00
Unavailable
9
REINFORCEMENT, FRA
8ML-F1986-00-00
Unavailable
10
. NUT, HEXAGON
8JP-RA331-00-00
Unavailable
11
BRACKET, SUPPORT
8ML-F5921-00-00
Unavailable
12
RIVET, 1
8ML-RA510-00-00
$1.81
13
PLATE 1
8ML-F191B-00-00
$53.99
14
PLATE 2
8ML-F191C-00-00
Unavailable
15
PLATE 1
8MV-F191B-00-00
Unavailable
16
BUMPER, REAR 4
8ML-K7544-00-00
Unavailable
17
BUMPER, REAR 3
8ML-K7543-00-00
Unavailable
18
RIVET, 6
8JP-RA515-00-00
Unavailable
19
RIVET, 3
8ML-RA512-00-00
Unavailable
20
PLATE, COVER
8ML-F131D-00-00
Unavailable
21
RIVET, 4
8ML-RA513-00-00
Unavailable
22
BRACKET
8ML-E4744-00-00
Unavailable
23
RIVET, 9
8JP-RA518-00-00
Unavailable
24
PROTECTOR, FUEL TA
8ML-F4141-00-00
Unavailable
25
BUMPER, FRONT 1
8MV-K7511-00-00
Unavailable
26
TIE, CABLE-8.5/7.5/7.4
8JM-RAB01-00-00
Unavailable
27
CABLE TIE,PUSH MOUNT-XMAS CLIP
8JM-RAB02-00-00
Unavailable
28
RECTIFIER & REGULA
8ML-H1960-00-00
Unavailable
29
VOLTAGE REGULATOR
8ML-H1910-00-00
Unavailable
30
FOOTREST 2
8ML-F7421-00-00
Unavailable
31
FOOTREST 1
8ML-F7411-00-00
Unavailable
32
BUMPER, REAR 1
8ML-K7541-00-00
Unavailable
33
SCREW, 1/4-20X3/4
8ML-RA204-00-00
Unavailable
34
WASHER, SPRING 5/1
8ML-RA402-00-00
Unavailable
35
WASHER,LOCK-1/4 EXT TOOTH TYP
8JM-RA407-00-00
Unavailable
36
FLAP
8ML-K7595-00-00
Unavailable
37
SCREW, TAPPING 1/4
8JP-RA202-00-00
Unavailable
38
NUT, CLIP
8JP-RA349-00-00
Unavailable
39
LABEL, WARNING 2
8JP-K7762-S0-00
Unavailable
40
LABEL, WARNING 2
8JP-K7762-70-00
Unavailable
41
LABEL 1
8JP-F151A-10-00
Unavailable
42
NUT,HEX FLG-NY LOCK 5/16-18 GR
8JM-RA303-00-00
Unavailable
43
HOLDER, ABSORBER
8MV-F376J-00-00
Unavailable
44
SCREW-CAP-HFH 5/16-18 X0.875 G
8JM-RA117-00-00
Unavailable
45
DRIVE GUARD ASSY.
8ML-K7310-00-00
Unavailable
46
LABEL, CAUTION
8ML-E417F-00-00
Unavailable
47
LABEL, WARNING 3
8ML-K7763-00-00
Unavailable
48
AXLE, IDLER
8JM-G7465-00-00
Unavailable
49
WASHER, 9
8MV-RA466-00-00
Unavailable
50
NUT, CLIP M5
8JP-RA353-00-00
Unavailable
51
SCREW, 11
8JP-RA2A0-00-00
Unavailable
52
PROTECTOR, DISC BRAKE
8ML-F5718-00-00
Unavailable
53
RIVET, 8
8JP-RA517-00-00
Unavailable
54
PROTECTOR, FRAME
8ML-F1978-00-00
Unavailable
55
WASHER, PLAIN 1/4
8ML-RA400-00-00
Unavailable
56
RIVET, 5
8ML-RA514-00-00
Unavailable
57
TRIM (3 FEET)
8JP-F15B3-00-00
Unavailable
58
NUT, FLG. LOCKING
8JP-RA363-00-00
Unavailable
59
SCREW, M6X1.0X20
8JP-RA261-00-00
Unavailable
60
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
61
WASHER,FLAT .194X.50X.048
8JM-RA411-00-00
Unavailable
