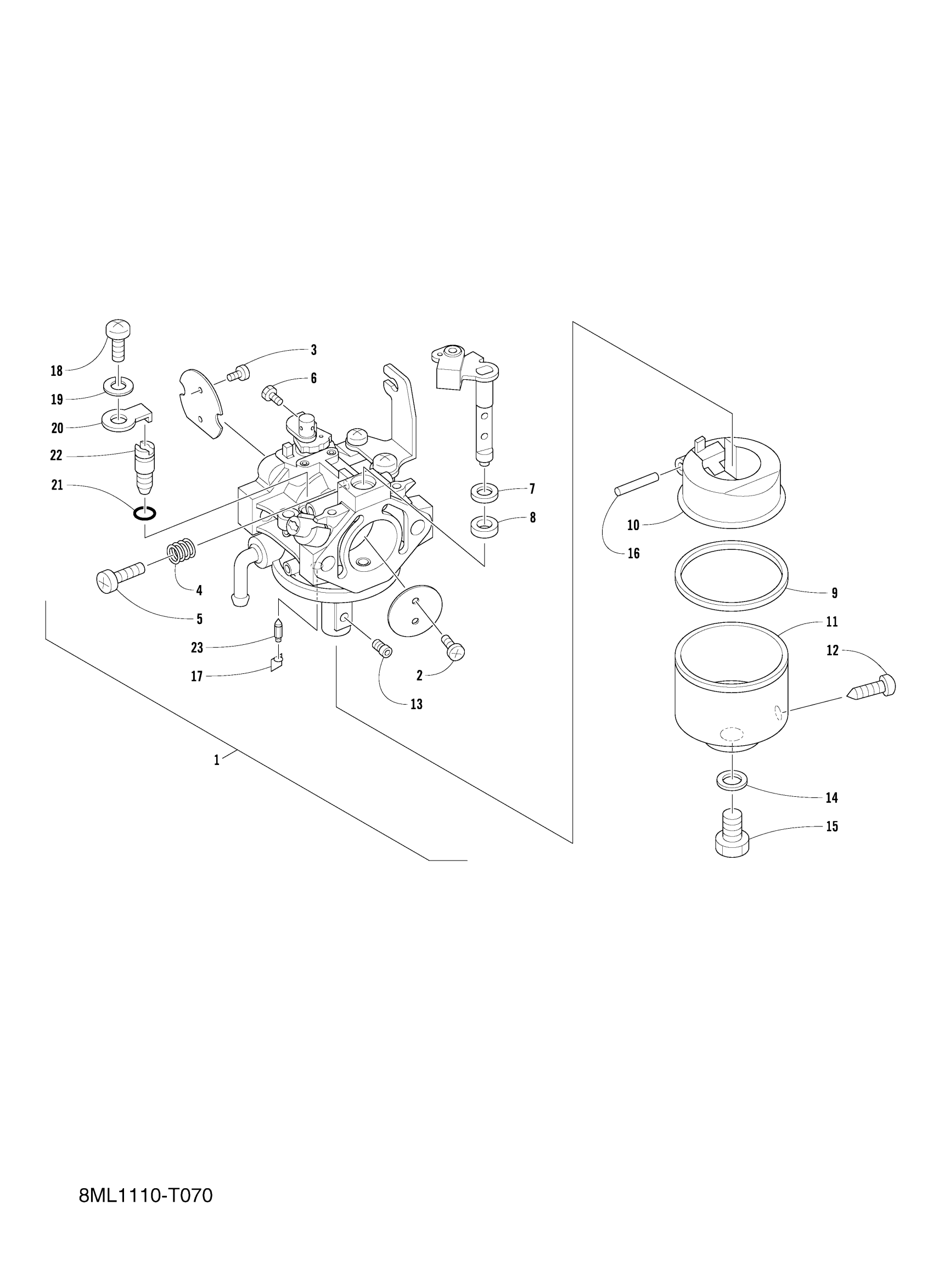

Yamaha SXR2NJW (SNOSCOOT) 8ML10 2018 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
7KB-E4101-12-00
$317.99
2
SCREW
7RH-14216-00-00
$2.91
3
SCREW, ROD
7RH-14486-00-00
$2.91
4
SPRING, PILOT ADJUSTING
73A-14212-10-00
$6.99
5
SCREW, THROTTLE
1WG-14922-00-00
$3.74
6
. BOLT
78G-14496-00-00
Unavailable
7
. WASHER, PLUG SCREW
4CW-14117-00-00
Unavailable
8
WASHER
6K8-14597-10-00
Unavailable
9
SEAL
7CT-E4997-00-00
$21.99
10
FLOAT
JN6-14185-00-00
$17.49
11
. BODY, FLOAT CHAMBER 1
7VB-E4181-00-00
Unavailable
12
. PLUG, DRAIN
7E1-14191-00-00
Unavailable
13
. JET, MAIN (# 950)
1HX-14231-19-00
Unavailable
13
JET, MAIN (#100)
1HX-14231-20-00
$13.49
13
JET,MAIN #97.5
1HX-1423A-70-A0
Unavailable
13
JET, MAIN
1HX-E423E-38-A0
Unavailable
13
JET, MAIN (#98.8)
1HX-1423E-39-A0
Unavailable
13
JET, MAIN (#101.3)
1HX-1423E-40-A0
Unavailable
14
GASKET
127-14198-00-00
Unavailable
15
BOLT, HOLDING
7CG-14162-00-00
Unavailable
16
PIN, FLOAT
22F-14186-00-00
Unavailable
17
CLIP
7EG-14159-00-00
Unavailable
18
GASKET, EXHAUST
98507-05008-00
Unavailable
19
YBS67-5 WASHER, SPRING
92990-05100-00
Unavailable
20
PLATE
7CU-E4527-00-00
Unavailable
21
O-RING, PILOT SCREW
2H0-14147-00-00
Unavailable
22
JET, PILOT(#35)
7CU-E4142-35-A0
Unavailable
22
JET, PILOT (#37.5)
7CU-E4142-37-A0
Unavailable
22
JET, PILOT (# 36.3)
7CU-E414J-14-A0
Unavailable
22
JET, PILOT (# 38.8)
7CU-E414J-15-A0
Unavailable
23
NEEDLE ASSY
7CU-14150-00-00
Unavailable
