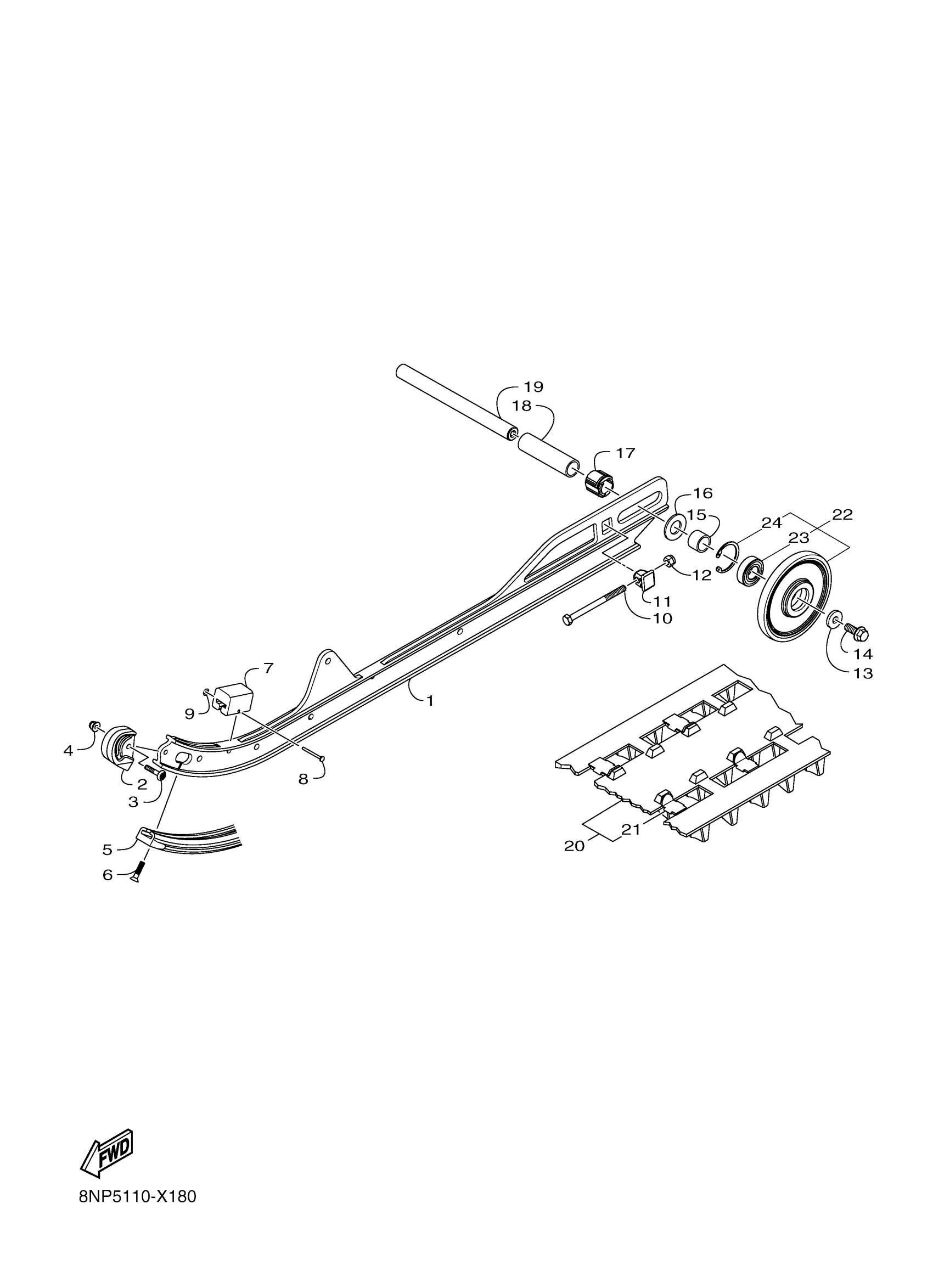

Yamaha SXR2NESR (SNOSCOOT ES) 8NPB1 2025 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8NP-G741A-10-00

$131.83

2

RUNNER, SLIDING 2

8JP-G7422-10-00

Unavailable

3

SCREW, M6X1.0X30

8JP-RA266-00-00

$1.15

4

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.06

5

RUNNER, SLIDING 1

8NP-G7421-00-00

$18.62

6

SCREW

8NP-RA206-00-00

Unavailable

7

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$6.54

8

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.02

9

NUT, SPRING 1/8

8JM-RA313-00-00

$0.56

10

BOLT, HEX. M8X1.25

8JP-RA1B1-00-00

$1.82

11

BRACKET 5

8JP-G7463-00-00

$3.52

12

NUT, HEX. LOCKING

8JP-RA372-00-00

$0.48

13

WASHER, PLAIN 0.39

8JM-RA409-00-00

$1.55

14

BOLT, FLANGE 3/8-16X1

8JM-RA118-00-00

$2.59

15

COLLAR

8NP-RA708-00-00

Unavailable

16

WASHER, 9

8LN-RA466-00-00

Unavailable

17

COLLAR

8ND-RA700-00-00

Unavailable

18

COLLAR

8NP-RA709-00-00

Unavailable

19

AXLE, REAR

8JM-G7521-00-00

$45.85

20

TRACK ASSY

8ML-G7110-00-00

Unavailable

21

. METAL, GUIDE

8JM-G7119-00-00

$17.94

22

GUIDE WHEEL ASSY

8JM-G7550-10-00

Unavailable

23

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

Unavailable

24

CIRCLIP, 2

8JM-RAH01-00-00

Unavailable
