Description

Price

1

COLUMN, STEERING

8NP-F3811-00-00

Unavailable

2

GRIP

8JM-F6241-10-00

$40.99

3

NUT

8JR-F3856-10-00

Unavailable

4

PAD, HANDLEBAR

8JM-F3817-00-00

$31.99

5

COVER, HANDLEBAR PAD-BLUE

8JM-F3818-20-00

$22.99

6

BOLT, FLANGE 1/4-2

8MV-RA106-00-00

Unavailable

7

GUIDE, CABLE

8MV-F3389-00-00

Unavailable

8

HOLDER, BEARING

8JM-F3872-00-00

Unavailable

9

BEARING, STEERING

8JM-F3812-00-00

Unavailable

10

NUT, FLG. LOCKING

8JP-RA357-00-00

$0.54

11

PIPE, CROSS, 7

8NP-F119E-00-00

Unavailable

12

PIPE CROSS 8

8NP-F119F-00-00

Unavailable

13

NUT,HEX FLG-NY LOCK 5/16-18 GR

8JM-RA303-00-00

Unavailable

14

WASHER,FLAT-5/16X.688X.065 Z&Y

8JM-RA403-00-00

Unavailable

15

SCREW,CAP-HFH 5/16-18X1.25 G5

8JM-RA104-00-00

Unavailable

16

TIE ROD ASSY

8NP-F3830-00-00

Unavailable

17

. NUT, HEXAGON 5/16-24 LH

8JM-RA307-00-00

Unavailable

18

.. NUT, HEXAGON 5/16-24

8JM-RA308-00-00

Unavailable

19

NUT, SELF-LOCKING

8JM-RA357-00-00

Unavailable

20

BRACKET, FUEL PUMP

8NP-F4491-00-00

Unavailable

21

TIE, CABLE-8.5/7.5/7.4

8JM-RAB01-00-00

Unavailable

22

WASHER, SPRING 5/1

8ML-RA402-00-00

Unavailable

23

WASHER,LOCK-1/4 EXT TOOTH TYP

8JM-RA407-00-00

Unavailable

24

SCREW-CAP-HFH 5/16-18 X0.875 G

8JM-RA117-00-00

Unavailable

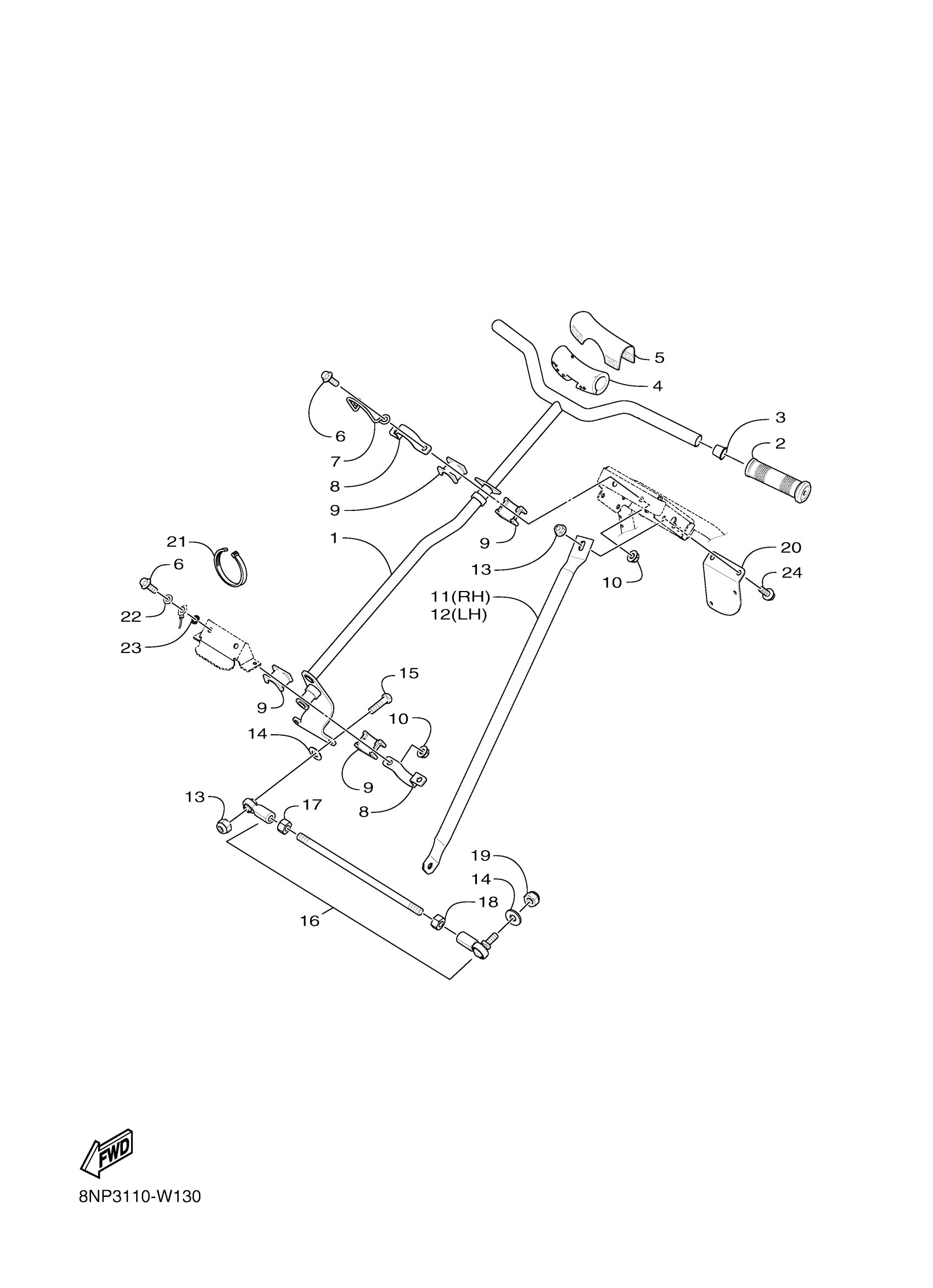

Yamaha SXR2NESR (SNOSCOOT ES) 8NPB1 2025 STEERING Diagram

COLUMN, STEERING

GRIP

NUT

PAD, HANDLEBAR

COVER, HANDLEBAR PAD-BLUE

BOLT, FLANGE 1/4-2

GUIDE, CABLE

HOLDER, BEARING

BEARING, STEERING

NUT, FLG. LOCKING

PIPE, CROSS, 7

PIPE CROSS 8

NUT,HEX FLG-NY LOCK 5/16-18 GR

WASHER,FLAT-5/16X.688X.065 Z&Y

SCREW,CAP-HFH 5/16-18X1.25 G5

TIE ROD ASSY

. NUT, HEXAGON 5/16-24 LH

.. NUT, HEXAGON 5/16-24

NUT, SELF-LOCKING

BRACKET, FUEL PUMP

TIE, CABLE-8.5/7.5/7.4

WASHER, SPRING 5/1

WASHER,LOCK-1/4 EXT TOOTH TYP

SCREW-CAP-HFH 5/16-18 X0.875 G
