Description

Price

1

TANK, FUEL

8ML-F4111-00-00

Unavailable

2

GROMMET

8JP-E5367-00-00

$3.18

3

PIPE, JOINT 1

8KC-F4376-10-00

$3.50

4

. STRAINER

8LN-F4536-00-00

Unavailable

5

HOSE, FUEL OUTLET

8LN-F452B-00-00

Unavailable

6

PIPE, JOINT 1

8ML-F4376-00-00

Unavailable

7

FUEL PUMP ASSY

JR4-24410-01-00

Unavailable

8

PLUG, DRAIN

8ML-F3119-00-00

Unavailable

9

NUT, SELF-LOCKING

8JM-RA319-00-00

Unavailable

10

CLAMP,HOSE(14.5)12.0MM-14.5MM

8JM-RAC01-00-00

$2.12

11

HOSE, 1

8NC-RA905-00-00

$14.99

12

FILTER ASSY

4YR-24560-00-00

Unavailable

13

CLAMP, 6

8JP-RAB08-00-00

$2.44

14

HOSE, 11

8ML-RA902-10-00

Unavailable

15

CLAMP, HOSE-10.8 MM TO 13.3 MM

8JM-RAC02-00-00

Unavailable

16

FUEL HOSE ASSY

8NP-F450B-00-00

Unavailable

17

CAP ASSY

8JP-F4610-00-00

Unavailable

18

SEAL, GAS CAP

8JM-F4641-00-00

Unavailable

19

CLIP

8ML-F4387-00-00

Unavailable

20

HOSE, 3 (50 FEET)

8JP-RA907-00-00

Unavailable

21

CLAMP, 3

8KC-RAB02-00-00

Unavailable

22

CLAMP, HOSE #4 (6202)

8JM-RAA00-00-00

Unavailable

23

HOSE, 2

8NP-RA906-00-00

Unavailable

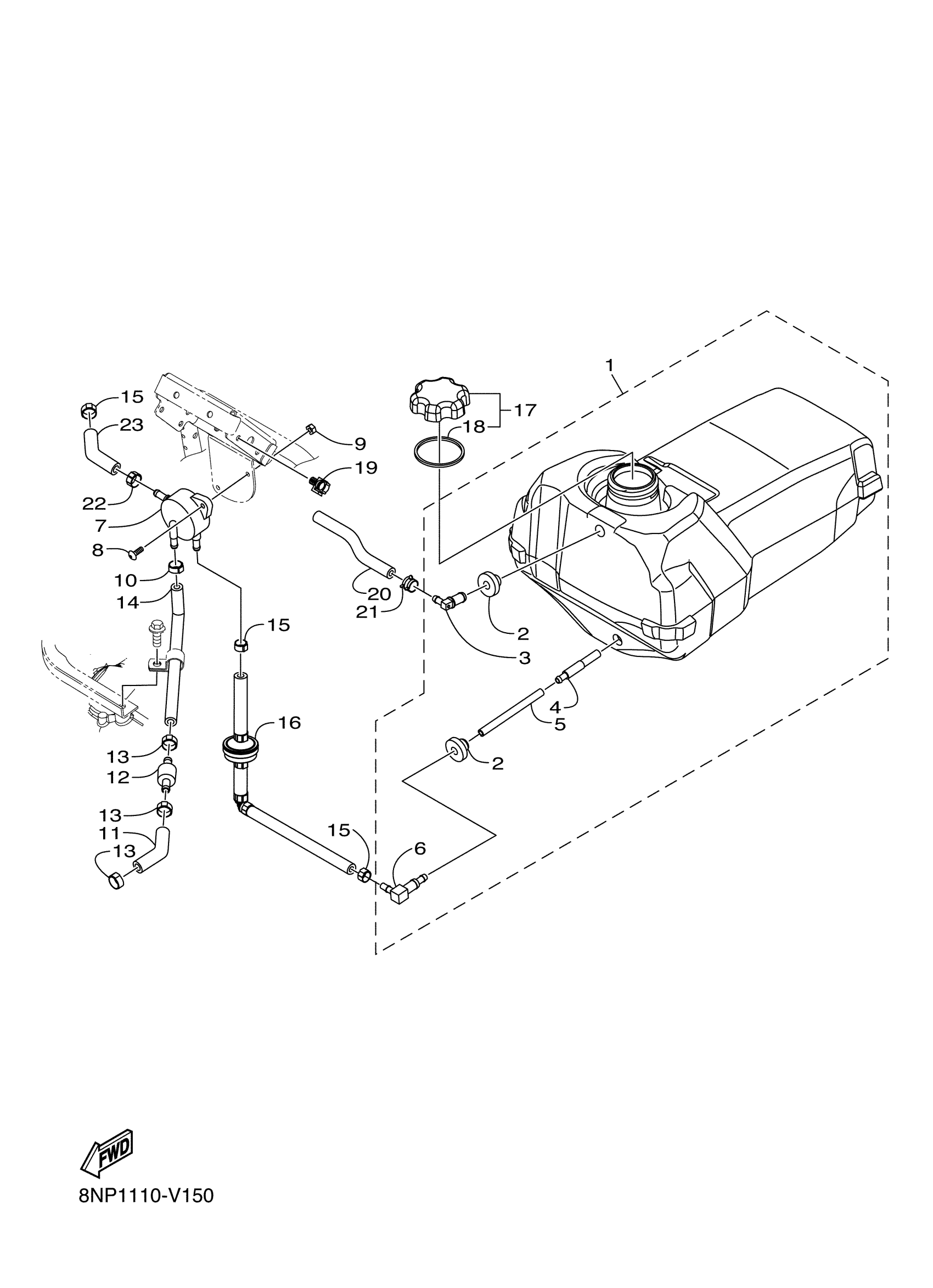

Yamaha SXR2NESR (SNOSCOOT ES) 8NPB1 2025 FUEL TANK Diagram

TANK, FUEL

GROMMET

PIPE, JOINT 1

. STRAINER

HOSE, FUEL OUTLET

PIPE, JOINT 1

FUEL PUMP ASSY

PLUG, DRAIN

NUT, SELF-LOCKING

CLAMP,HOSE(14.5)12.0MM-14.5MM

HOSE, 1

FILTER ASSY

CLAMP, 6

HOSE, 11

CLAMP, HOSE-10.8 MM TO 13.3 MM

FUEL HOSE ASSY

CAP ASSY

SEAL, GAS CAP

CLIP

HOSE, 3 (50 FEET)

CLAMP, 3

CLAMP, HOSE #4 (6202)

HOSE, 2
