Description

Price

1

CRANKCASE 2

7DH-E5121-50-00

Unavailable

2

OIL SEAL (25X40X5-256)

93102-25090-00

$14.99

3

BEARING

93306-206Y4-00

Unavailable

4

PIN, DOWEL(3XW)

91808-16023-00

$8.49

5

GASKET

90430-10801-00

$1.96

6

BOLT, FLANGE

95022-10016-00

$8.49

7

CRANKCASE COVER ASSY 1

7DH-E5410-00-00

Unavailable

8

BEARING

93306-205XV-00

$65.99

9

OIL SEAL

93102-25805-00

$10.49

10

PLUG

90338-06800-00

Unavailable

11

GASKET, CRANKCASE COVER 1

7CN-E5451-10-00

$16.49

12

BOLT, FLANGE

95822-08035-00

$4.14

13

OIL SEAL

8NC-E511A-10-00

$2.44

14

NUT

90170-20803-00

Unavailable

15

. PIPE, OIL

7DH-E5112-00-00

Unavailable

16

GAUGE, LEVEL

7DH-E5361-10-00

Unavailable

17

PLUG, OIL LEVEL

7CN-E5362-00-00

Unavailable

18

O-RING

93210-13801-00

Unavailable

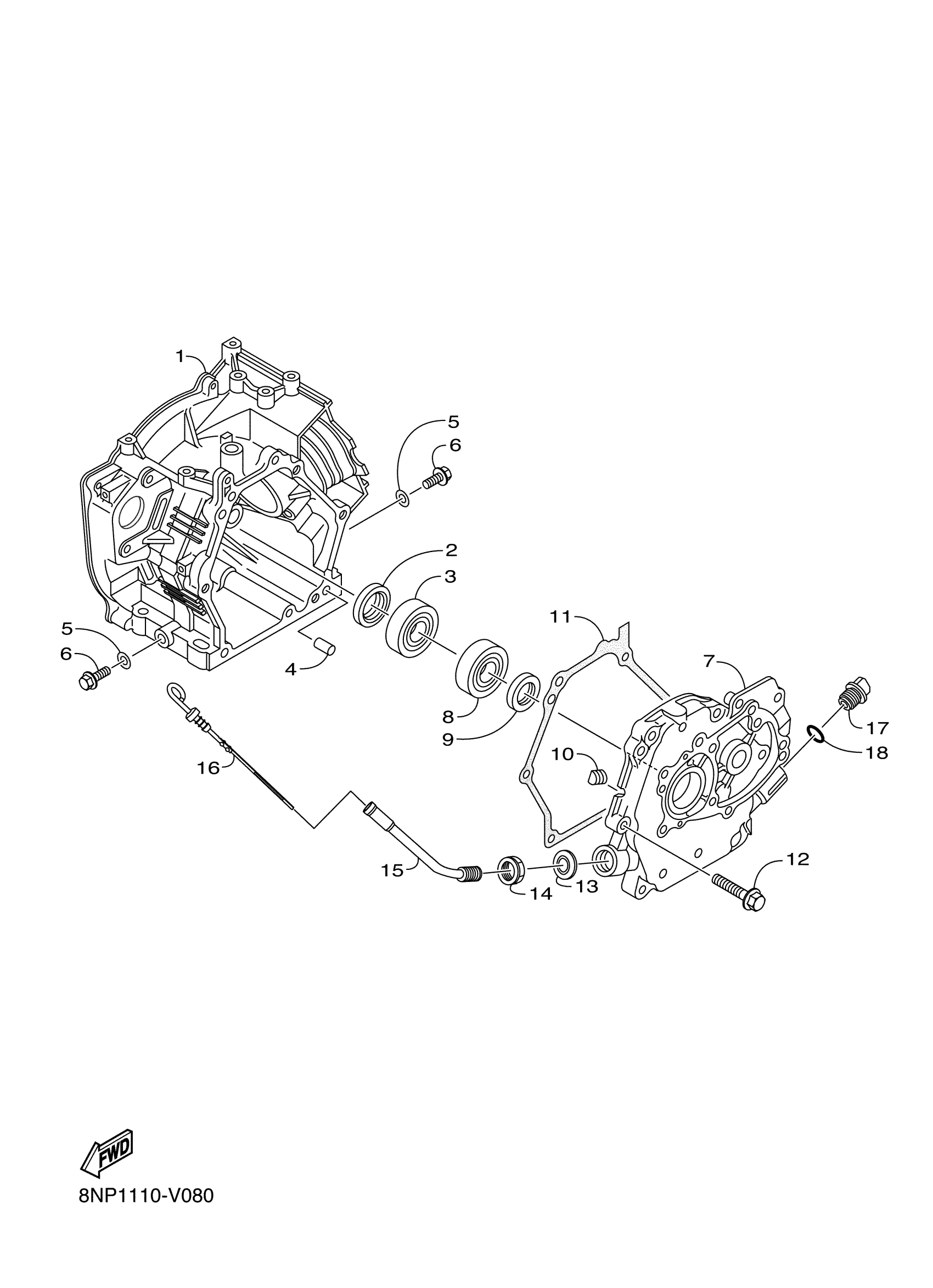

Yamaha SXR2NESR (SNOSCOOT ES) 8NPB1 2025 CRANKCASE Diagram

CRANKCASE 2

OIL SEAL (25X40X5-256)

BEARING

PIN, DOWEL(3XW)

GASKET

BOLT, FLANGE

CRANKCASE COVER ASSY 1

BEARING

OIL SEAL

PLUG

GASKET, CRANKCASE COVER 1

BOLT, FLANGE

OIL SEAL

NUT

. PIPE, OIL

GAUGE, LEVEL

PLUG, OIL LEVEL

O-RING
