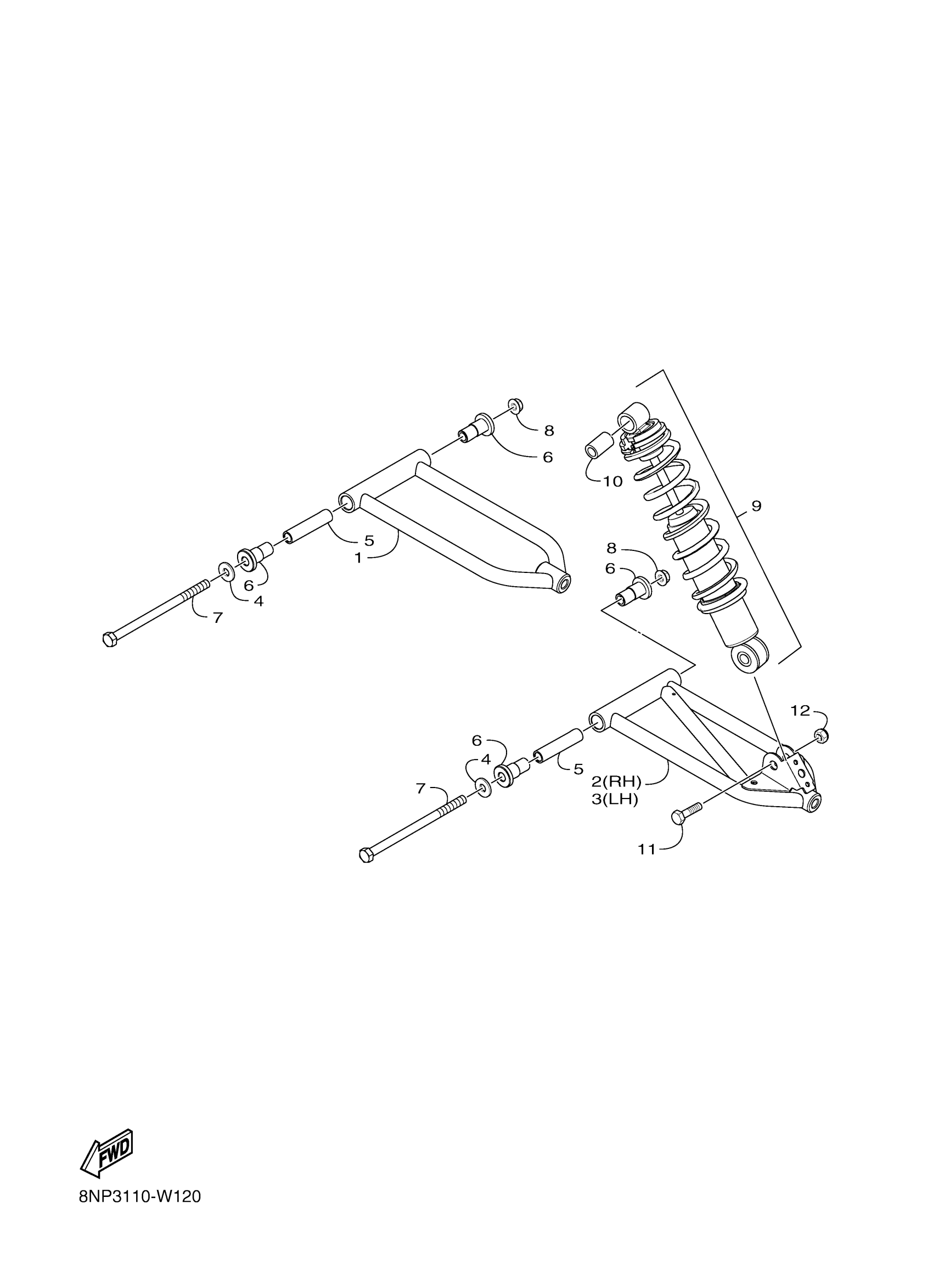

Yamaha SXR2NERW (SNOSCOOT ES) 8NP9 2024 FRONT SUSPENSION Diagram

ARM, FRONT UPPER

8MV-F354A-00-00

$97.99

ARM,FR. LWR. RH.

8MV-F358A-00-00

$124.99

ARM,FR. LWR. LH.

8MV-F357A-00-00

$127.99

WASHER,FLAT-3/8X1.000X.063 Z&Y

8JM-RA405-00-00

$0.48

COLLAR, 10

8MV-RA703-00-00

$14.99

AXLE,PWD CRANK (NO BEARING)

8JM-F3583-00-00

Unavailable

BOLT, HEXAGON 3/8-

8JM-RA107-10-00

Unavailable

NUT, FLG. LOCKING

8JP-RA358-00-00

$0.80

ABSORBER ASSY 1

8NP-F376A-00-00

$130.99

COLLAR,9

8JM-RA704-00-00

$4.88

SCREW,CAP-HH3/8-16X1.50 G5 Z&Y

8JM-RA109-00-00

$1.54

NUT,HEX THIN LOCK-NYL 3/8-16

8JM-RA305-00-00

$0.54
