Description

Price

1

WIRE, THROTTLE 1

8NP-F6311-00-00

Unavailable

2

RING RETAINING

8JM-RAH02-00-00

$1.86

3

SCREW, 8-18X0.875

8ML-RA286-00-00

$3.88

4

LEVER HOLDER ASSY

8NP-H2720-10-00

$184.99

5

BRAKE HOSE ASSY

8ML-F584A-00-00

Unavailable

6

LEVER HOLDER ASSY

8NP-H2710-00-00

$112.99

7

DECAL,SWITCH-EMERGENCY STOP

8JM-H2108-00-00

$8.49

8

SWITCH, STOP-ENGINE

8JM-H2575-00-00

Unavailable

9

GRIP,WARMER

8MV-F626A-00-00

Unavailable

10

CALIPER ASSY (RIGH

8ML-F580U-00-00

Unavailable

11

PAD, CALIPER 2

8ML-F5811-00-00

$88.99

12

STOP SWITCH ASSY

8ML-H2530-00-00

$142.99

13

BRAKE LEVER SET

8ML-F610A-00-00

Unavailable

14

MASTER CYLINDER AS

8ML-F583T-00-00

Unavailable

15

SCREW, M6X1.0X16

8JP-RA256-00-00

Unavailable

16

NUT,FLG. M6-1.0

8JM-RA322-00-00

Unavailable

17

CABLE 2

8NP-H8147-00-00

Unavailable

18

NUT, PLASTIC-CHOKE

8JM-RA310-00-00

Unavailable

19

MAIN SWITCH ASSY

8NC-H2510-00-00

Unavailable

20

NUT,RETAINING-5/8-32UN2B BLK

8JM-RA317-00-00

Unavailable

21

KEY, IGNITION

8JM-H2511-00-00

Unavailable

22

LABEL

8NP-H2377-00-00

Unavailable

23

BUSH

8ML-F2184-00-00

Unavailable

24

CIRCLIP, 1

8MV-RAH00-00-00

Unavailable

25

WASHER, TOOTHED LO

8ND-RA407-00-00

Unavailable

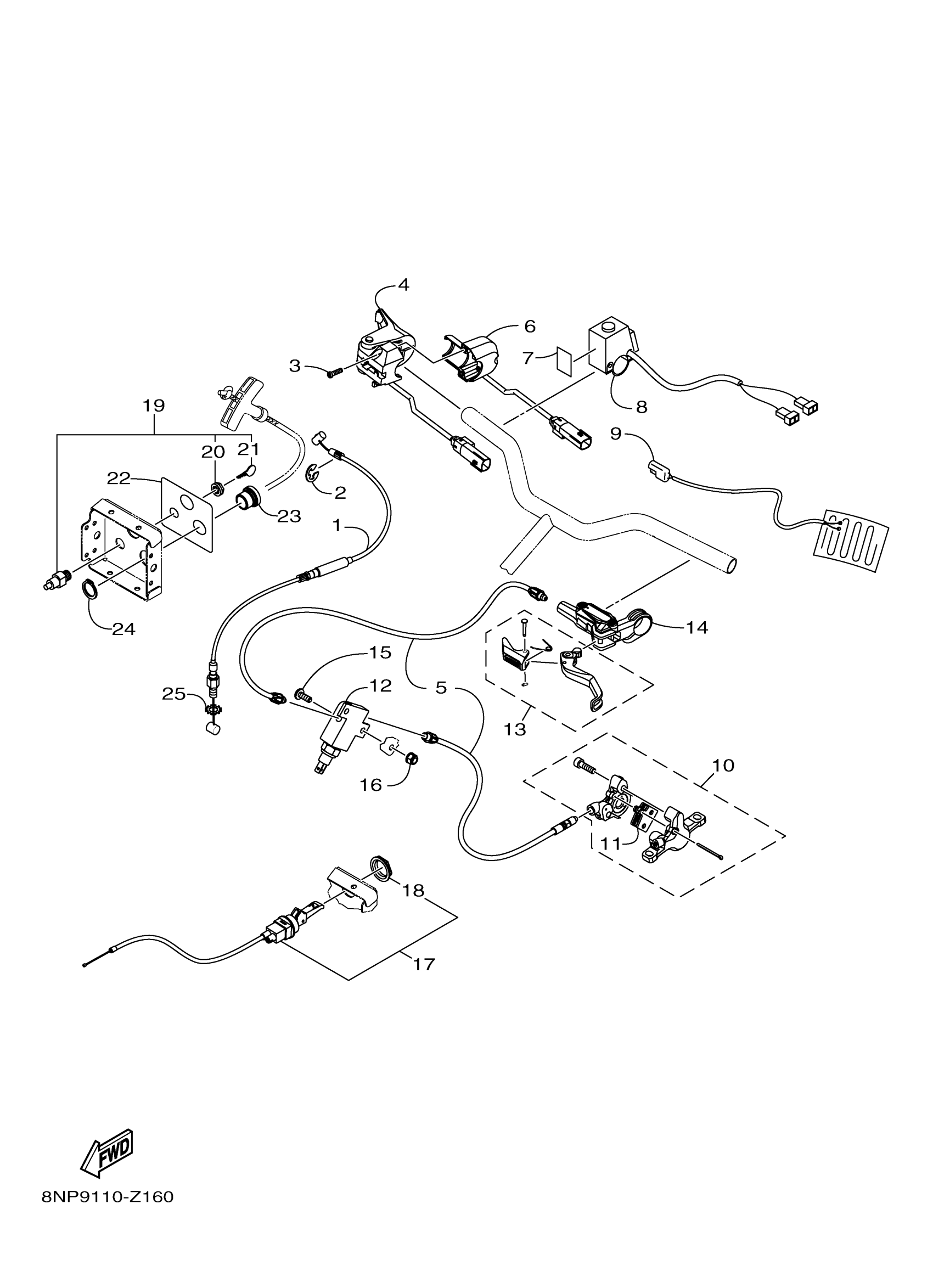

Yamaha SXR2NERW (SNOSCOOT ES) 8NP9 2024 CONTROL Diagram

WIRE, THROTTLE 1

RING RETAINING

SCREW, 8-18X0.875

LEVER HOLDER ASSY

BRAKE HOSE ASSY

LEVER HOLDER ASSY

DECAL,SWITCH-EMERGENCY STOP

SWITCH, STOP-ENGINE

GRIP,WARMER

CALIPER ASSY (RIGH

PAD, CALIPER 2

STOP SWITCH ASSY

BRAKE LEVER SET

MASTER CYLINDER AS

SCREW, M6X1.0X16

NUT,FLG. M6-1.0

CABLE 2

NUT, PLASTIC-CHOKE

MAIN SWITCH ASSY

NUT,RETAINING-5/8-32UN2B BLK

KEY, IGNITION

LABEL

BUSH

CIRCLIP, 1

WASHER, TOOTHED LO
