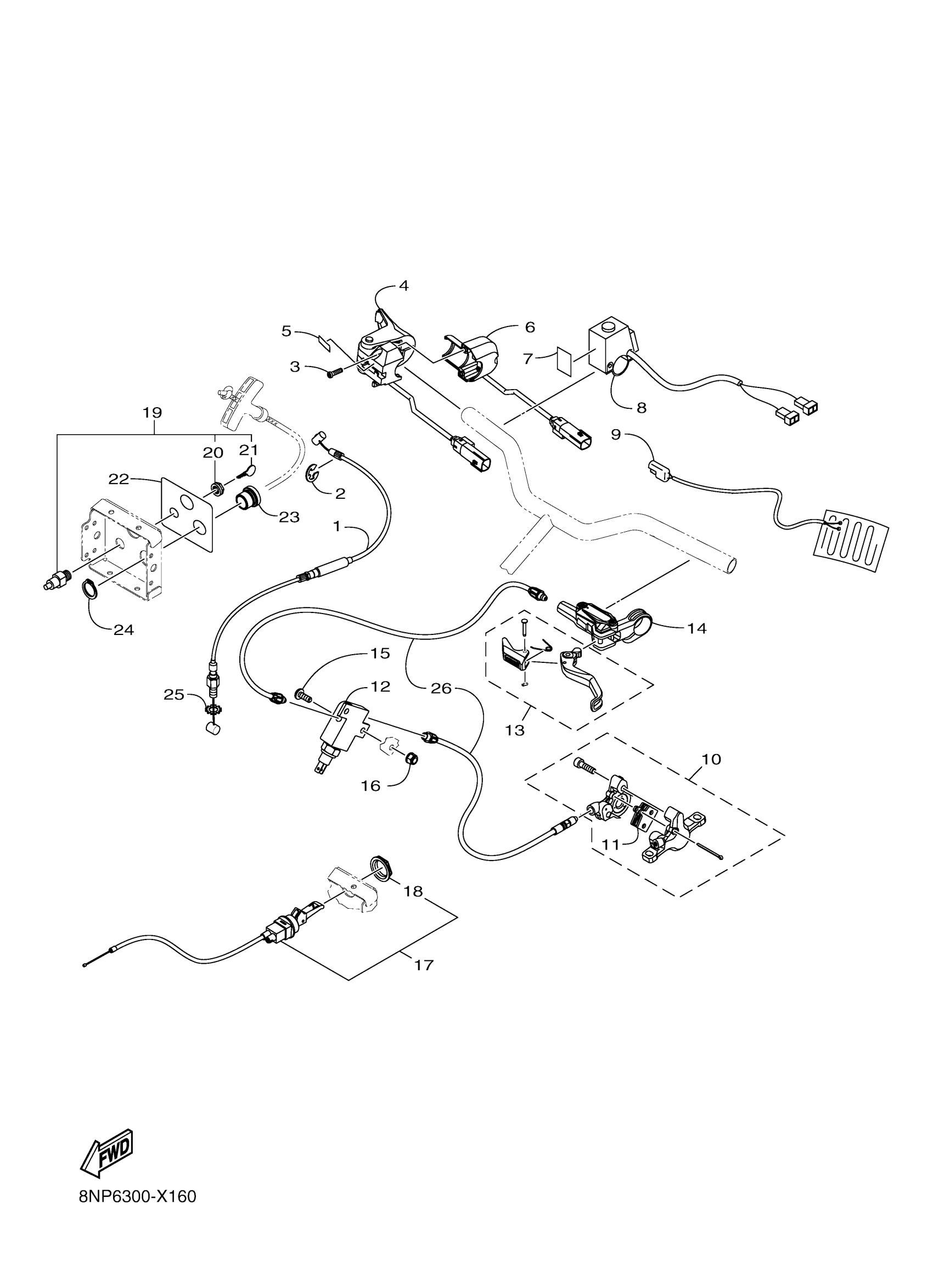

Yamaha SXR2NEPL (SNOSCOOT ES) 8NP71 2023 CONTROL Diagram
#
Description
Price
1
WIRE, THROTTLE 1
8NP-F6311-00-00
Unavailable
2
RING RETAINING
8JM-RAH02-00-00
$1.86
3
SCREW, 8-18X0.875
8ML-RA286-00-00
$3.88
4
LEVER HOLDER ASSY
8NP-H2720-00-00
$111.99
5
COVER
8NV-H252U-00-00
Unavailable
6
LEVER HOLDER ASSY
8NP-H2710-00-00
$112.99
7
DECAL,SWITCH-EMERGENCY STOP
8JM-H2108-00-00
$8.49
8
SWITCH, STOP-ENGINE
8JM-H2575-00-00
Unavailable
9
GRIP,WARMER
8MV-F626A-00-00
Unavailable
10
CALIPER ASSY (RIGH
8ML-F580U-00-00
Unavailable
11
PAD, CALIPER 2
8ML-F5811-00-00
$88.99
12
STOP SWITCH ASSY
8ML-H2530-00-00
$142.99
13
BRAKE LEVER SET
8ML-F610A-00-00
Unavailable
14
MASTER CYLINDER AS
8ML-F583T-00-00
Unavailable
15
SCREW, M6X1.0X16
8JP-RA256-00-00
Unavailable
16
NUT,FLG. M6-1.0
8JM-RA322-00-00
Unavailable
17
CABLE 2
8NP-H8147-00-00
Unavailable
18
NUT, PLASTIC-CHOKE
8JM-RA310-00-00
Unavailable
19
MAIN SWITCH ASSY
8NC-H2510-00-00
Unavailable
20
NUT,RETAINING-5/8-32UN2B BLK
8JM-RA317-00-00
Unavailable
21
KEY, IGNITION
8JM-H2511-00-00
Unavailable
22
LABEL
8NP-H2377-00-00
Unavailable
23
BUSH
8ML-F2184-00-00
Unavailable
24
CIRCLIP, 1
8ML-RAH00-00-00
Unavailable
25
WASHER, TOOTHED LO
8ND-RA407-00-00
Unavailable
26
BRAKE HOSE ASSY
8ML-F584A-00-00
Unavailable
