Description

Price

1

BRACKET, ENGINE

8NP-F194E-00-00

Unavailable

2

BOLT, FLANGE

8JM-RA126-00-00

Unavailable

3

WASHER, 9

8KR-RA466-00-00

$7.49

4

NUT,HEX FLG-NYL LOCK M8X1.25

8JM-RA301-00-00

$1.06

5

DAMPER, RUBBER 1

8NP-F1485-00-00

$29.99

6

BOLT, FLANGE

8JM-RA127-00-00

$4.29

7

WASHER

7DH-E4616-00-00

Unavailable

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

SILENCER ASSY

8ML-E4750-00-00

$198.99

10

GROMMET

8JP-E5357-00-00

$15.99

11

SPRING, EXTENSION

8JM-RAD04-00-00

$7.49

12

DAMPER 2

8ML-F1486-00-00

Unavailable

13

DAMPER SUB ASSY

8ML-F2201-00-00

Unavailable

14

NUT, HEX. M10X1.25

8JP-RA369-00-00

$0.96

15

BOLT, HEXAGON 5/16

8ML-RA105-00-00

Unavailable

16

WASHER, PLAIN 5/16

8ML-RA403-00-00

Unavailable

17

CAP, PLUG

8NP-H2371-00-00

Unavailable

18

BOLT, FLANGE

95814-08016-00

Unavailable

19

CLAMP, 3

8ML-RAB05-00-00

Unavailable

20

HOSE

90445-13815-00

Unavailable

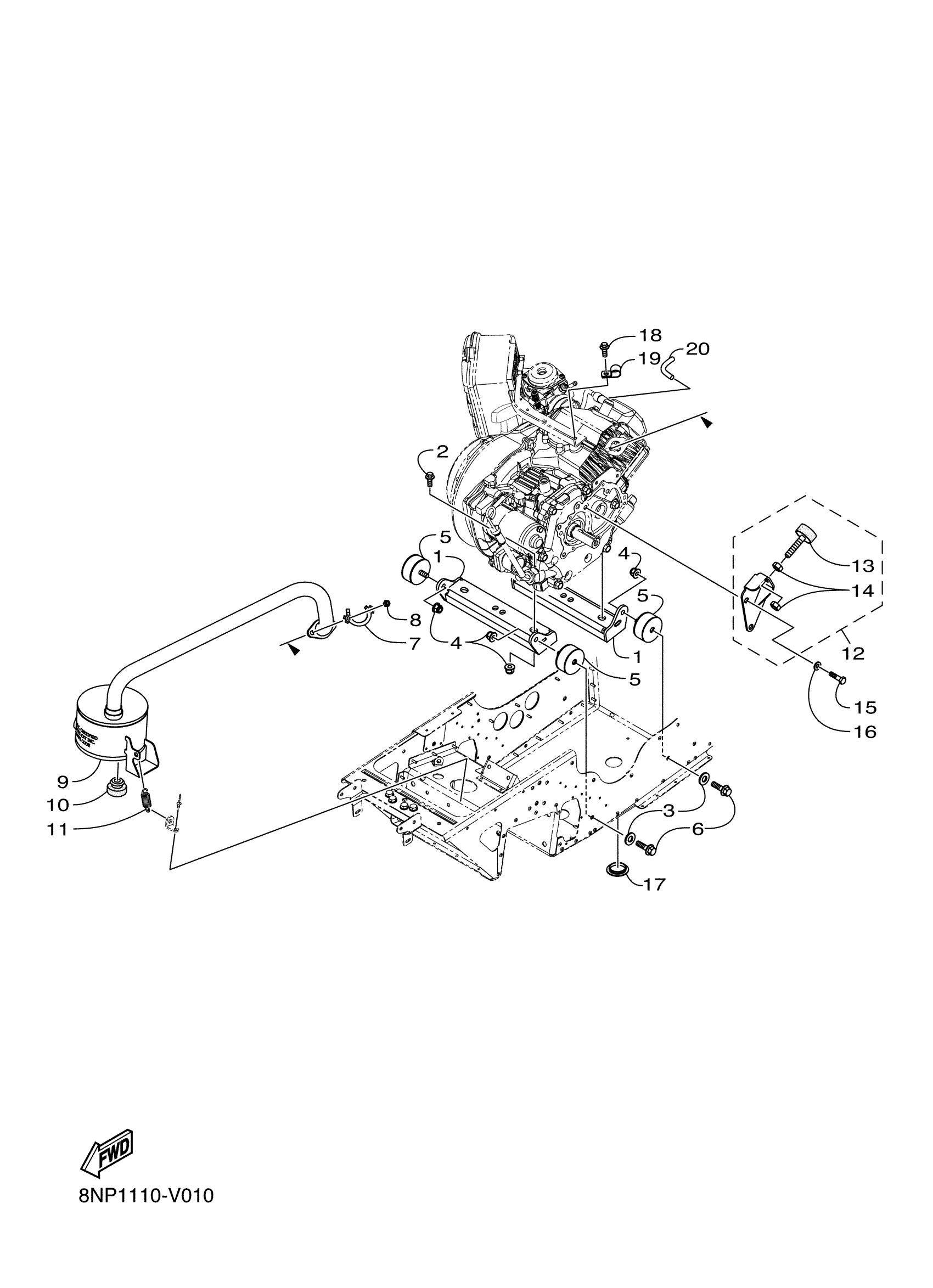

Yamaha SXR2NENO (SNOSCOOT ES) 8NP5 2022 ENGINE ASSEMBLY Diagram

BRACKET, ENGINE

BOLT, FLANGE

WASHER, 9

NUT,HEX FLG-NYL LOCK M8X1.25

DAMPER, RUBBER 1

BOLT, FLANGE

WASHER

NUT, SELF-LOCKING

SILENCER ASSY

GROMMET

SPRING, EXTENSION

DAMPER 2

DAMPER SUB ASSY

NUT, HEX. M10X1.25

BOLT, HEXAGON 5/16

WASHER, PLAIN 5/16

CAP, PLUG

BOLT, FLANGE

CLAMP, 3

HOSE
