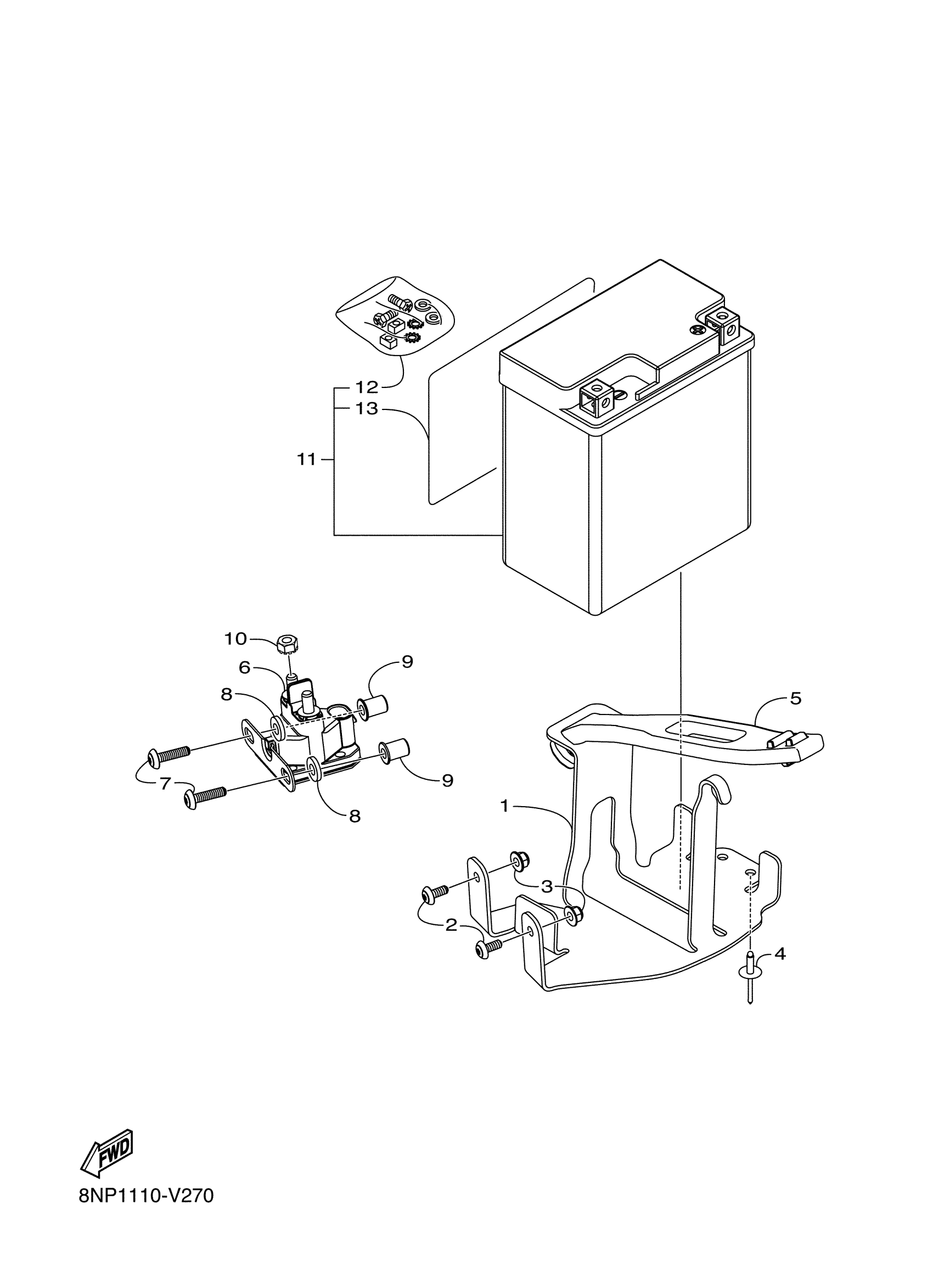

Yamaha SXR2NENO (SNOSCOOT ES) 8NP5 2022 ELECTRICAL 1 Diagram

#

Description
Price

1

SEAT, BATTERY

8NC-H2122-00-00

$41.99

2

SCREW, M5X0.8X12

8JP-RA241-00-00

$4.88

3

NUT, FLG. LOCKING

8JP-RA363-00-00

$1.16

4

RIVET, 15

8JP-RA524-00-00

$2.12

5

BAND, BATTERY

8NC-H2131-00-00

$24.99

6

STARTER RELAY ASSY

8NC-H1940-00-00

$40.99

7

SCREW, M5X0.8X20

8JP-RA245-00-00

$1.91

8

WASHER, SPECIAL

8NC-H1894-00-00

$14.99

9

NUT, INSERT

8NC-RA374-00-00

$7.49

10

NUT, WITH WASHER M

8JP-RA375-00-00

$0.48

11

YTX7LBS YUASA BATTERY - SA

YTX-7LBS0-00-00

Unavailable

12

REPAIR PARTS KIT

8NP-F819G-00-00

$7.49

13

. LABEL, BATTERY

8JP-H2141-00-00

Unavailable
