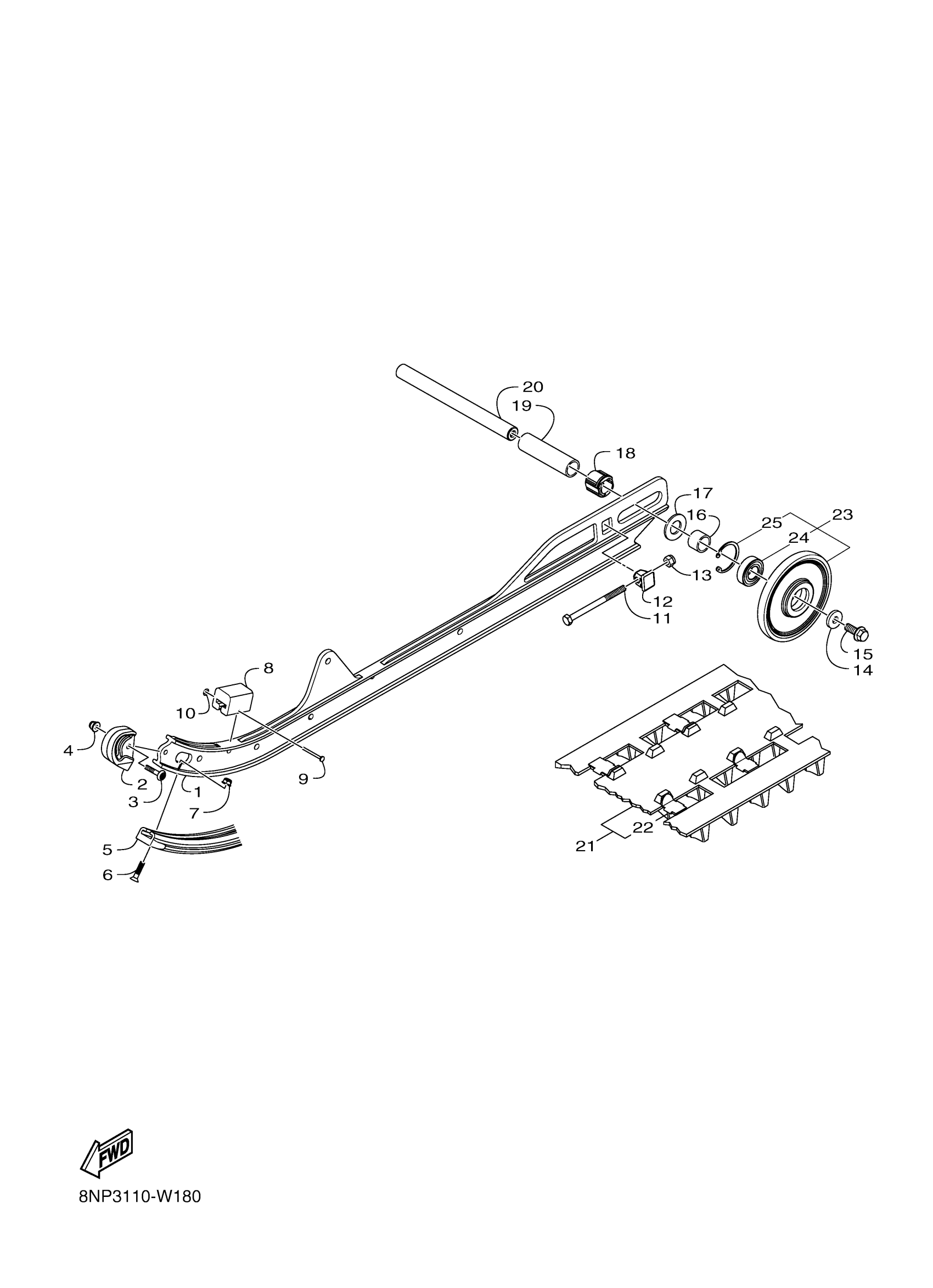

Yamaha SXR2NEMR (SNOSCOOT ES) 8NP31 2021 TRACK SUSPENSION 1 Diagram

#

Description
Price

1

FRAME, SLIDING

8NP-G741A-00-00

Unavailable

2

RUNNER, SLIDING 2

8JP-G7422-10-00

Unavailable

3

SCREW, M6X1.0X30

8JP-RA266-00-00

$1.15

4

NUT,FLG. M6-1.0

8JM-RA322-00-00

$1.06

5

RUNNER, SLIDING 1

8ML-G7421-00-00

$26.18

6

SCREW,MACH-PHFH 1/4-20 X 1 1/8

8JM-RA206-00-00

$1.15

7

NUT, SELF-LOCKING 1/4-20

8JM-RA311-00-00

$0.42

8

PAD, SHOCK - RUBBER

8JM-G7456-00-00

$6.54

9

RIVET, SOLID - 1/8 X 1.50

8JM-RAY02-00-00

$1.02

10

NUT, SPRING 1/8

8JM-RA313-00-00

$0.56

11

BOLT, HEX. M8X1.25

8JP-RA1B1-00-00

$1.82

12

BRACKET 5

8JP-G7463-00-00

$3.52

13

NUT, HEX. LOCKING

8JP-RA372-00-00

$0.48

14

WASHER, PLAIN 0.39

8JM-RA409-00-00

$1.55

15

BOLT, FLANGE 3/8-16X1

8JM-RA118-00-00

$2.59

16

COLLAR

8NP-RA708-00-00

Unavailable

17

WASHER, 9

8LN-RA466-00-00

Unavailable

18

COLLAR

8ND-RA700-00-00

Unavailable

19

COLLAR

8NP-RA709-00-00

Unavailable

20

AXLE, REAR

8JM-G7521-00-00

$45.85

21

TRACK ASSY

8ML-G7110-00-00

Unavailable

22

. METAL, GUIDE

8JM-G7119-00-00

$17.94

23

GUIDE WHEEL ASSY

8JM-G7550-10-00

Unavailable

24

BRNG,WHL-NSK CHINA6004-W/ENS G

8JM-RAY03-00-00

Unavailable

25

CIRCLIP, 2

8JM-RAH01-00-00

Unavailable
